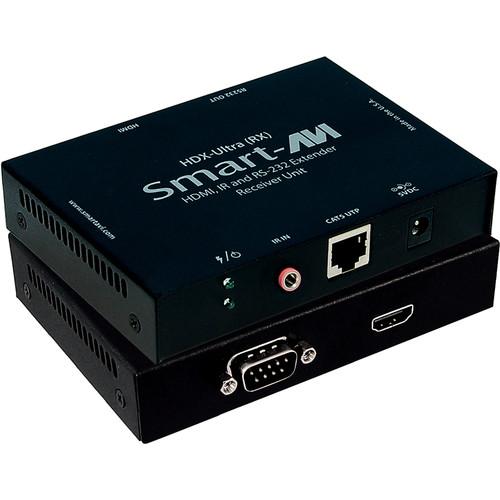

User Manual for Smart-AVI HDX-Ultra-Rx HDBaseT HDMI over Cat5 Receiver Click to enlarge the picture
Contents of the user manual for the Smart-AVI HDX-Ultra-Rx HDBaseT HDMI over Cat5
- Product category: Video Extenders & Repeaters Smart-AVI
- Brand: Smart-AVI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Smart-AVI Video Extenders & Repeaters
 |
User manual for the Smart-AVI HDX-Ultra-Rx HDBaseT HDMI over Cat5 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Smart-AVI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Smart-AVI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Smart-AVI product will considerably shorten its lifespan!
|

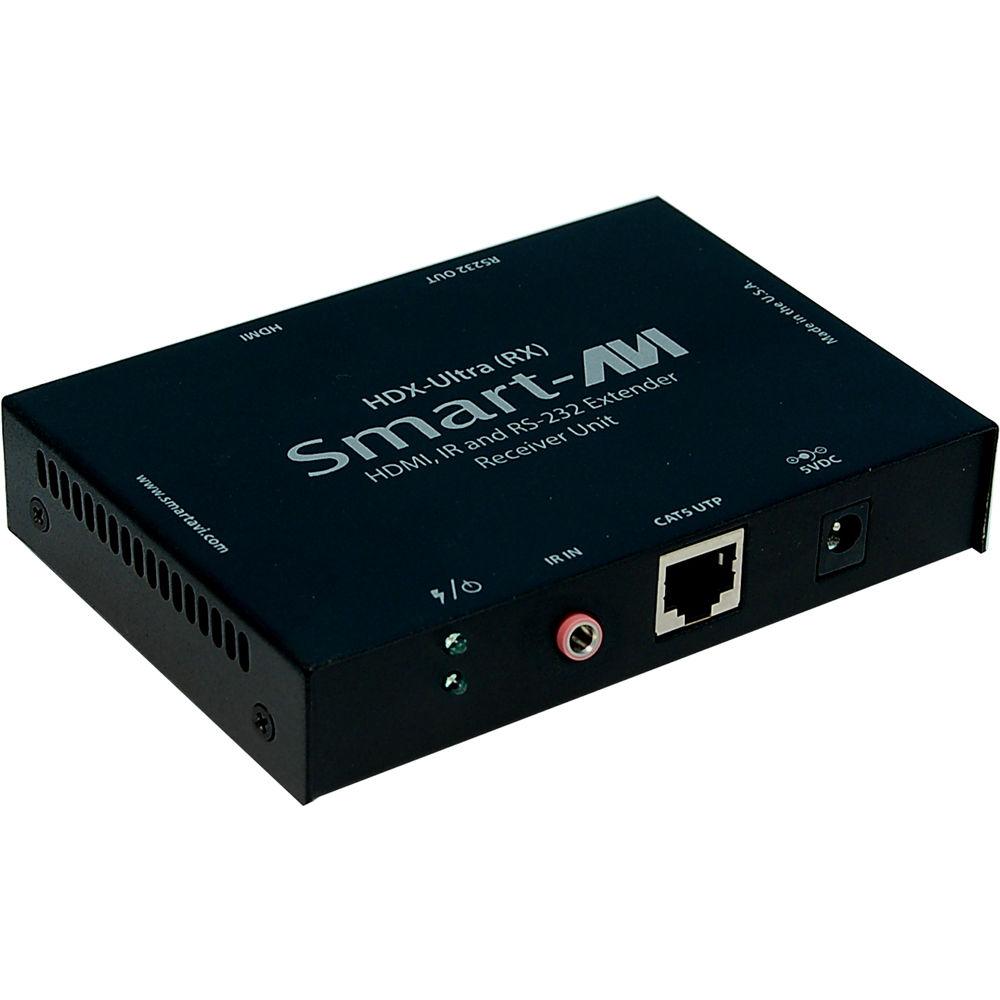

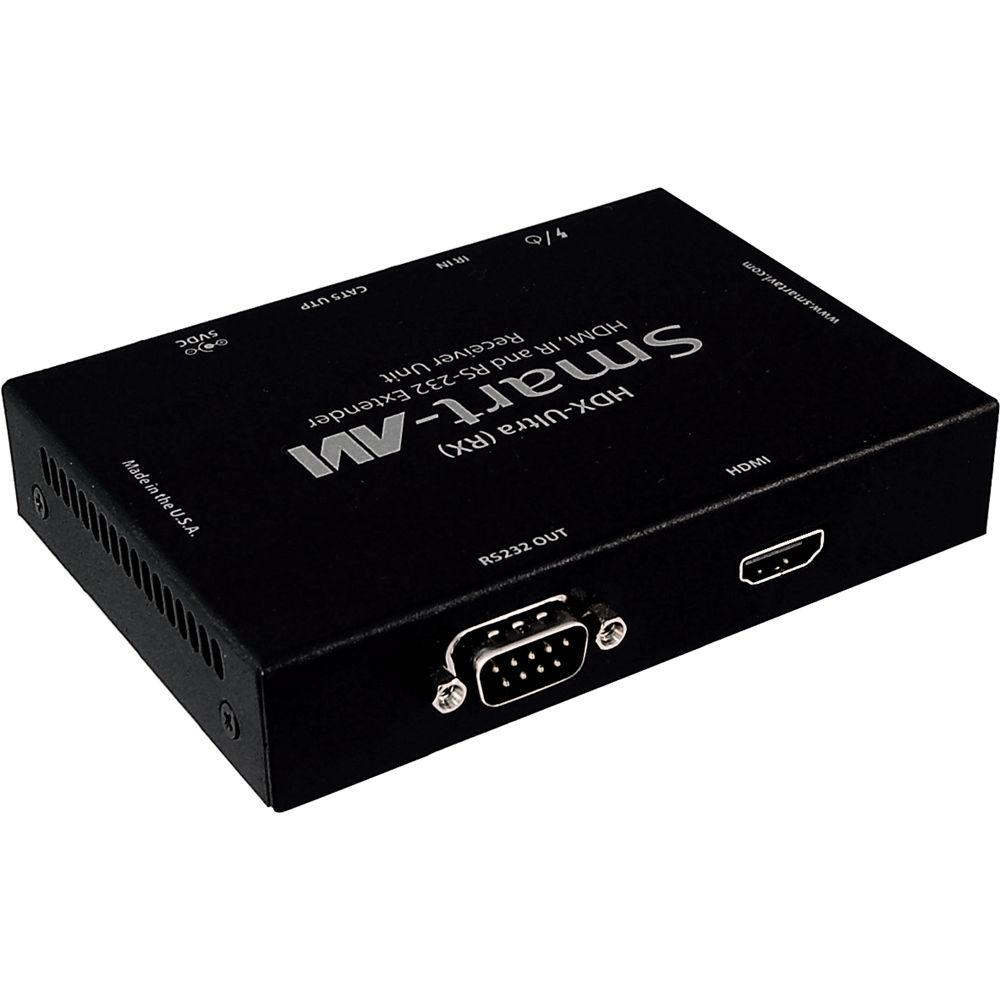

Product description The HDX-Ultra-Rx HDBaseT HDMI over Cat5 Receiver from Smart-AVI receives signals via a single Cat5 cable, and distributes HDTV 1080p video via an HDMI output up to 450' away from the matrix. The receiver features audio, bidirectional IR, and RS232 communication. - Extends HDMI output via a single Cat5 cable up to 450' from the matrix
- Utilizes IR and RS-232 signals for remote control
- Delivers uncompressed HD video up to 1080p @ 60 Hz, 48-bit and 3D
- Data signals up to 3.4 Gbps
- HDMI 1.3 and HDCP compliant
- Bidirectional IR and RS-232 communication
- Transmits Dolby TrueHD and DTS-HDMA audio
- Applications
- Corporate or education presentations
Financial (remote servers/user control)
Industrial (long-range workstation isolation)
Information terminals/kiosks
Airport installations (air traffic control/passenger info)
Medical campuses
Recording/production studios In the Box Smart-AVI HDX-Ultra-Rx HDBaseT HDMI over Cat5 Receiver PS5VD2A Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI HDX-Ultra-Rx HDBaseT HDMI over Cat5 Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSmart-AVI HDX-ULTRA-RXS Specs | | | Video Format | HDMI 1.3 and HDCP compliant | | Resolutions | HDTV: 480p, 720p, 1080i, 1080p60, 48-bit
TV: 480i | | Cable Length | Input: Up to 450' (137.2 m), Cat5
Output: Up to 40' (12.2 m), HDMI | | | | Connectors | RJ45 input
19-Pin HDMI type A, female, TMDS output
3.5 mm IR Mini jack, female | | Power | External, 100 - 240 VAC/5 VDC, 2 A @ 10 W | | Approvals | UL, CE, ROHS compliant | | Operating Temperature | 32 to 121°F (0 to 55°C) | | Storage Temperature | -4 to 185°F (-20 to 85°C) | | Humidity | Up to 95% | | Dimensions | 5.0 x 1.1 x 4.1" (12.7 x 2.9 x 10.5 cm) | | Weight | 0.6 lb (0.3 kg) |
