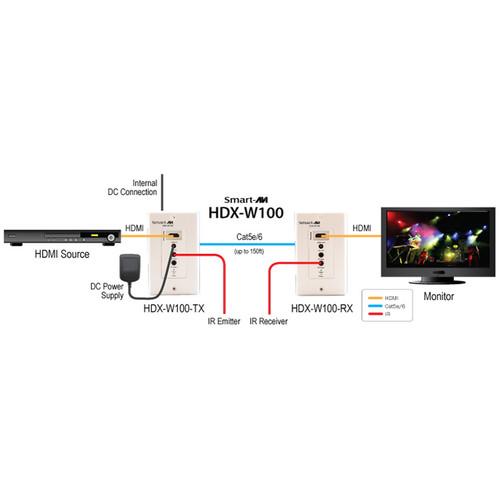

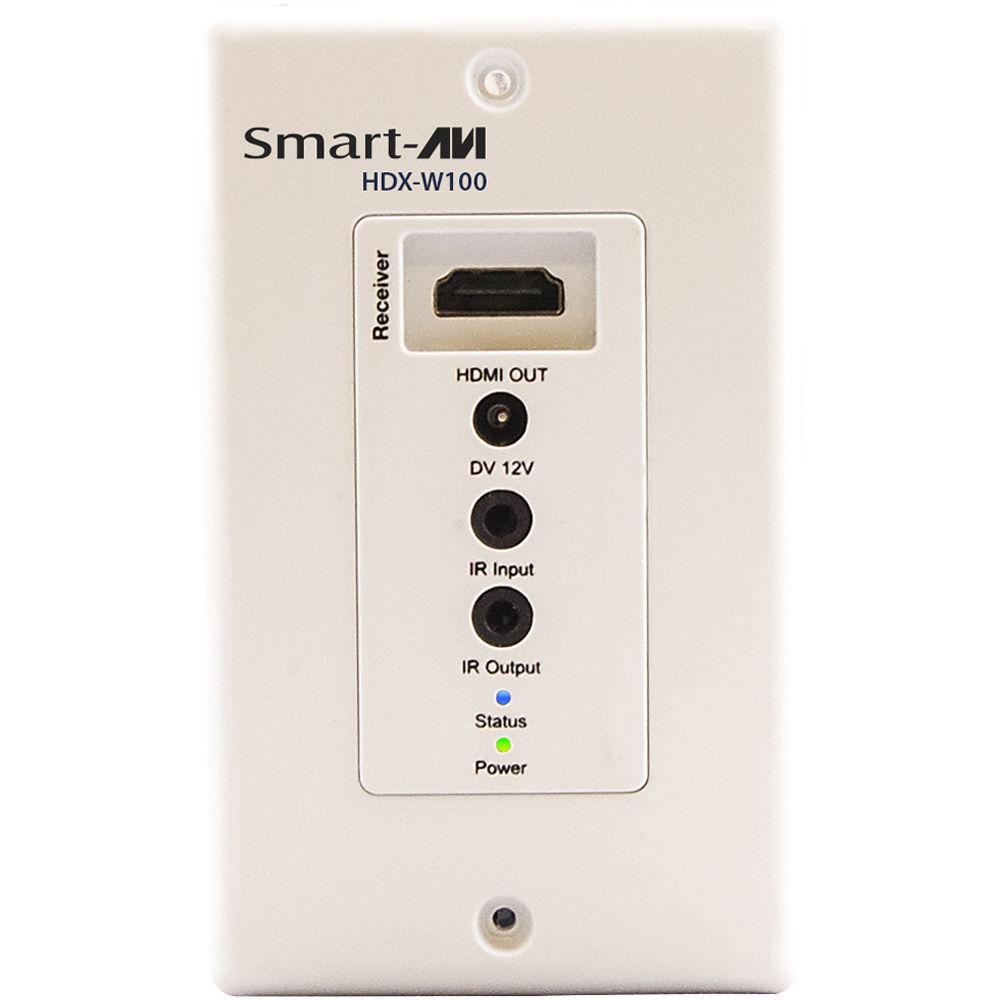

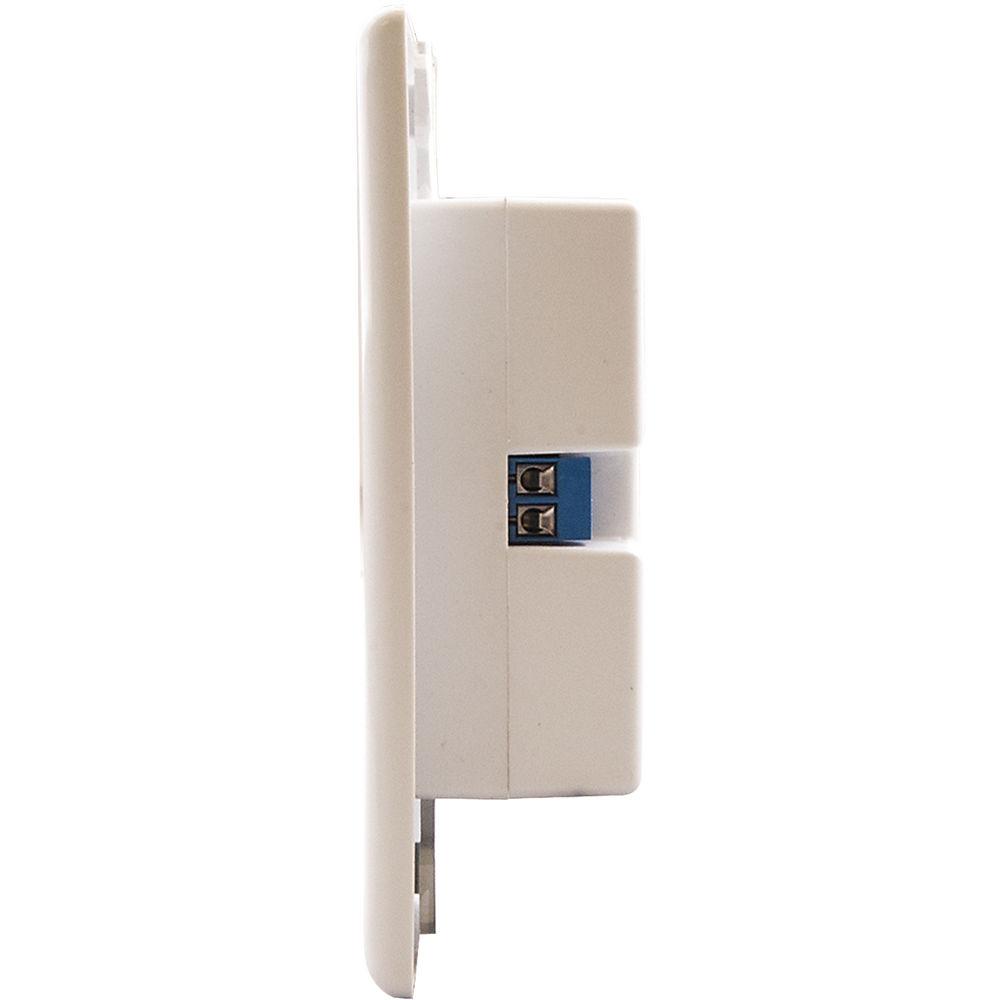

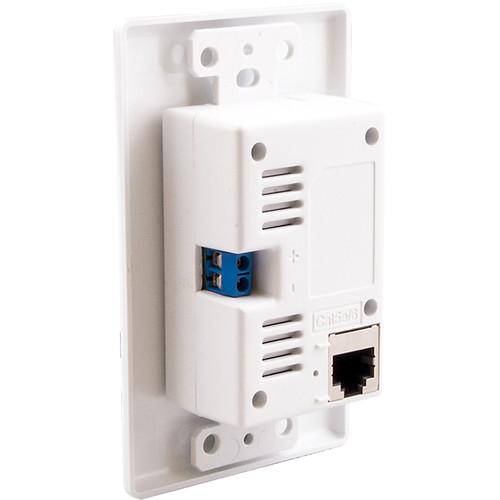

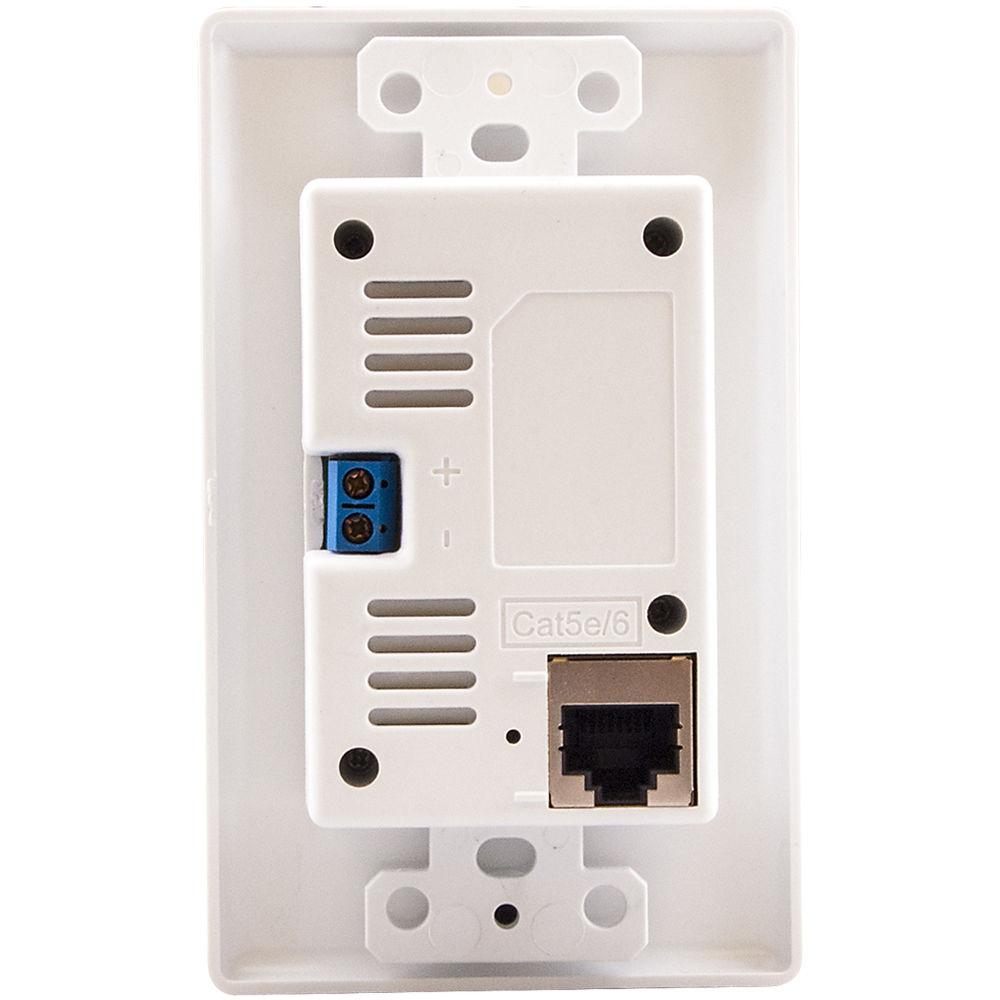

Product description The HDX-W100S HDMI over Cat5e/6 with IR Wall Plate Extender Set from Smart-AVI is comprised of the HDX-W100 HDMI Transmitter and HDX-W100 HDMI Receiver Wall Plates. The set extends HDMI over Cat5e/6 and utilizes slim wall plates to keep the wires as concealed as possible while providing 150' high-quality HD video transmission. The system supports high-resolution video up to 1080p, 60 Hz. It makes controlling the attached video source easy with its bidirectional IR communication, so users can adjust the source while at the screen's location over a hundred feet away. For corporate, academic, industrial, and home applications, the HDX-W100 provides a fully integrated solution for HDMI extension. Both the transmitter and receiver can be powered through the included 12V power adapter connected to the transmitter. - HDX-W100 HDMI over Cat5e/6 Wall Plate Receiver The HDX-W100 HDMI over Cat5e/6 Wall Plate Receiver from Smart-AVI receives HDMI signals from 150' away via a single Cat5e/6 cable. The receiver supports high-resolution video up to 1080p 60 Hz, and features bidirectional IR communication so you can easily control the video source. The unit is powered via the included 12V power adapter.
- Accepts HDMI signals via a single Cat5e/6 cable
- Supports uncompressed HD video up to 1080p @ 60 Hz
- HDMI 1.3 and HDCP compliant
- Supports bidirectional IR communication
- Supports automatic EDID callback
- Compatible with DVI-D with converter
- Cascadable for additional extensions
- VESA DDC and hot swap technology (HPD)
- Power over Ethernet (PoE)

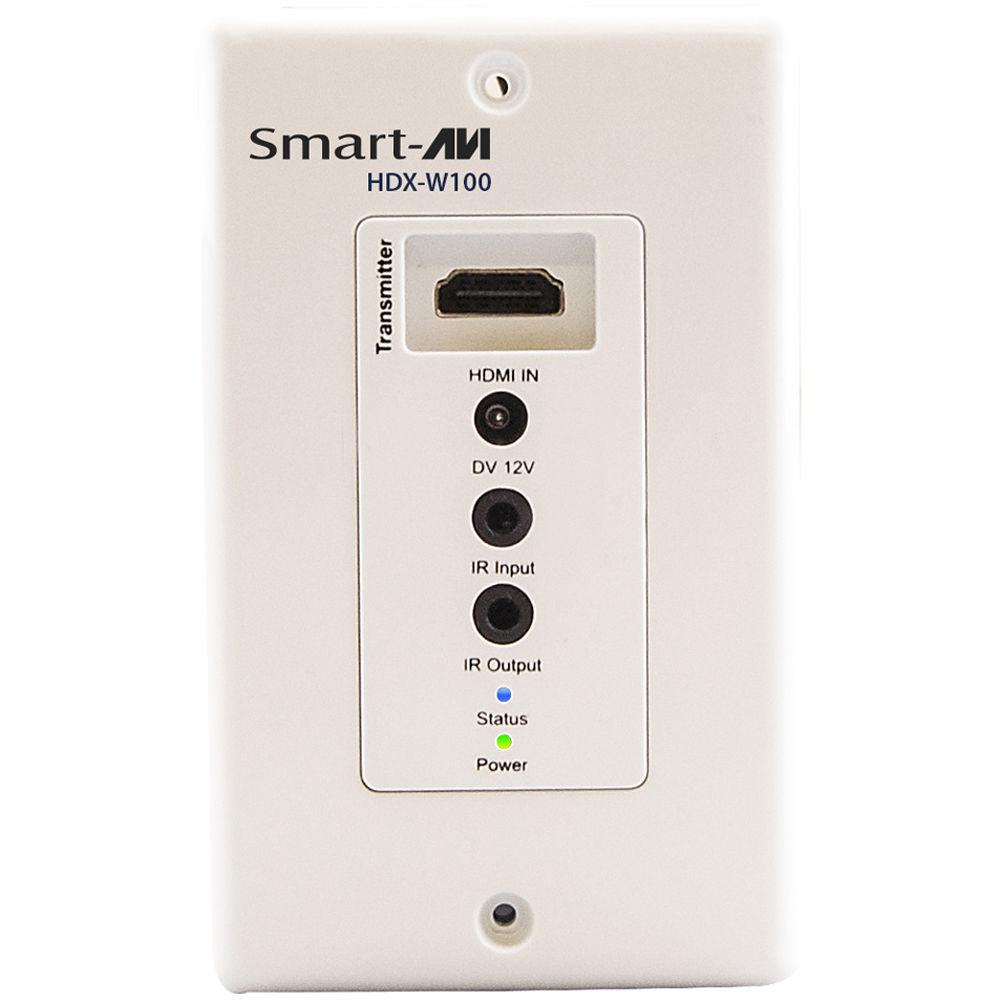

UPC: 813280021944 - HDX-W100 HDMI over Cat5e/6 Wall Plate Transmitter The HDX-W100 HDMI over Cat5e/6 Wall Plate Transmitter from Smart-AVI transmits HDMI signals from 150' away via a single Cat5e/6 cable. The trasmitter supports high-resolution video up to 1080p 60 Hz, and features bidirectional IR communication so you can easily control the video source. The unit is powered via the included 12V power adapter.
- Extends HDMI signals via a single Cat5e/6 cable
- Supports uncompressed HD video up to 1080p @ 60 Hz
- HDMI 1.3 and HDCP compliant
- Supports bidirectional IR communication
- Supports automatic EDID callback
- Compatible with DVI-D with converter
- Cascadable for additional extensions
- VESA DDC and hot swap technology (HPD)
- Power over Ethernet (PoE)

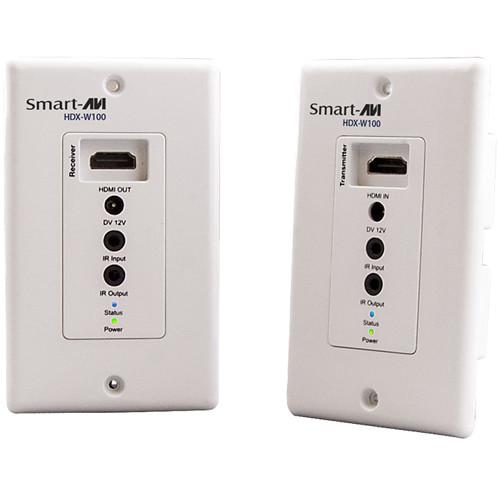

UPC: 813280021951 In the Box Bundle Items HDX-W100 HDMI over Cat5e/6 Wall Plate Receiver fyvbcrtbzx HDX-W100 HDMI over Cat5e/6 Wall Plate Transmitter fyvbcrtbzx
Also Includes - PS12V2A Power Supply
- Limited 1-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI HDX-W100S HDMI over Cat5e 6 with IR Wall Plate Extender Set in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - HDX-W100 HDMI over Cat5e/6 Wall Plate Receiver
| Video Resolution | Up to 1080p @ 60 Hz | | Audio Format | Up to PCM 8-channel, Dolby Digital, TrueHD, and DTS-HDMaster Audio | | IR Range | 38 kHz | | Video Bandwidth | 4.95 Gbps | | Input Video Signal | 1.2 Vpp | | Input DDC Signal | 5 Vpp | | Input Connectors | RJ45
3.5 mm Mini jack, IR receiver
12 VDC power input barrel | | Output Connectors | 3.5 mm Mini jack, IR emitter
19-Pin HDMI type A | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Compliance | FCC, CE, RoHS | | | | Box Dimensions (LxWxH) | 7.7 x 5.4 x 4.4" | - HDX-W100 HDMI over Cat5e/6 Wall Plate Transmitter
| Video Resolution | UP to 1080p @ 60 Hz | | Audio Format | Up to PCM 8-channel, Dolby Digital, TrueHD, and DTS-HDMaster Audio | | IR Range | 38 kHz | | Video Bandwidth | 4.95 Gbps | | Input Video Signal | 1.2 Vpp | | Input DDC Signal | 5 Vpp | | Input Connectors | 19-Pin HDMI type A
3.5 mm Mini jack, IR receiver
12 VDC power input barrel | | Output Connectors | RJ45
3.5 mm Mini jack, IR emitter | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Compliance | FCC, CE, RoHS | | | | Box Dimensions (LxWxH) | 10.0 x 8.0 x 6.0" |
