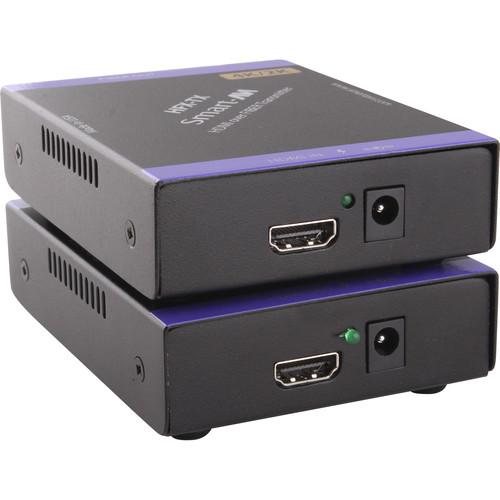

Product description The HFX-S 4K HDMI over Fiber Cable Extender Set from Smart-AVI is a point-to-point fiber optic 4K HDMI extender which comes with both a transmitter and receiver unit. Without the need for any other hardware or software, the HFX-S provides an uncompressed long-distance HDMI signal, up to 1,000', with fiber optic extension capabilities. Supported resolutions extend up to 4K Ultra HD @ 30Hz, as well as 3D HD video. High-quality digital audio is also transmitted via the extender, making it ideal for home theater, corporate/educational presentations, call centers, information terminals/kiosks, airport installations, medical campuses, recording studios, and financial applications. - Extends HDMI signals up to 1,000 feet at 10.3 Gbps with OM3 multi-mode fiber optic cabling
- Supports resolutions up to 4K Ultra HD @30 Hz
- LC type fiber optic connector
- Designed and manufactured in the USA
UPC: 813280018227 In the Box Smart-AVI HFX-S 4K HDMI over Fiber Cable Extender Set 2 x PS5VD2A 5V 2A Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI HFX-S 4K HDMI over Fiber Cable Extender Set in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSmart-AVI HFX-S Specs | Format | Video: HDMI 1.4 and HDCP compliant
Audio: Dolby TrueHD, DTS-HD MA | | Resolutions | 480p, 720p, 1080i, 1080p @ 60 Hz 48-bit
4K x 2K @ 30 Hz | | Refresh Rate | 130 Hz | | Wavelength | 850 nm | | Bit Error Rate | 1.00 E-12 | | Interfaces | Transmitter Unit:
19-Pin female, HDMI video input (with integrated audio)
LC-Type, fiber optic port
DC power input
Receiver Unit:
19-Pin female, HDMI video output (with integrated audio)
LC-Type, fiber optic port
DC power input | | Cable Length | Input: 40' (12.2 m) Maximum
Output: 40' (12.2 m) Maximum | | Cable Requirements | Multi-mode, OM3 | | Maximum Length | 1000' (300 m) | | Laser | Output Power: Class 1
EN 60825-1 2007; EN 60825-2 A2 2010 | | Power Supply | External, 5 VDC, 2 A @ 10 W | | Approvals | UL, CE, ROHS Compliant | | Temperature | Operating: 32 to 131°F (0 to 55°C)
Storage: -4 to 185°F (-20 to 85°C) | | Maximum Humidity | 95% | | Dimensions | Each Unit: 1.1 x 5.0 x 4.1" (2.9 x 12.7 x 10.5 cm) | | Weight | Each Unit: 1 lb (0.5 kg) | | | | Box Dimensions (LxWxH) | 10.0 x 8.0 x 7.0" |
