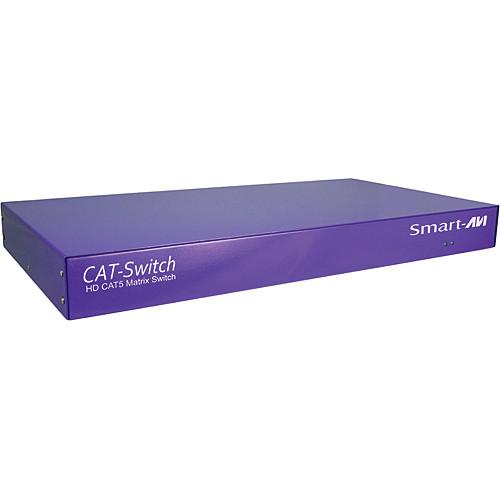

User Manual for Smart-AVI High Definition HDTV CAT5 Matrix Switch Click to enlarge the picture
Contents of the user manual for the Smart-AVI High Definition HDTV CAT5 Matrix
- Product category: Routers & Switchers Smart-AVI
- Brand: Smart-AVI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Smart-AVI Routers & Switchers
|
User manual for the Smart-AVI High Definition HDTV CAT5 Matrix contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Smart-AVI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Smart-AVI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Smart-AVI product will considerably shorten its lifespan!
|
Product description The Smart-AVI High Definition HDTV CAT5 Matrix Switch (32 x 16) with 1U rack-mounted chassis offers easy access to multiple servers in various locations and routes high-quality audio signals and high resolution video up to 1920 x 1200 with 32 inputs and 16 outputs. Infrared, RS-232, PC software, and TCP/IP protocols allow for full control of the matrix and all connected displays and devices. Routing takes place over standard CAT-5/5e/6/7/8 cables, up to a distance of 1500' (500m) between the local and remote units using an integral UTP distribution system. The High Definition HDTV CAT5 Matrix Switch supports HDTV (720p, 1080i, and 1080p), VGA, XGA, Sun, MAC, and SGI video formats and is compatible with line level stereo audio signals. Offering high ground loop immunity, the High Definition HDTV CAT5 Matrix Switch features a built-in power surge and transient protection circuits which safeguards the switcher. It also features a designated trimmer in the remote unit to compensate for length. - Offers easy access to multiple servers in various locations
- Routes high-quality audio signals and high resolution video up to 1920 x 1200
- Offers routing using standard CAT-5/5e/6/7/8 cables up to a distance of 1500' (500m) using an integral UTP distribution system
- Supports HDTV (720p, 1080i, and 1080p), VGA, XGA, Sun, MAC, and SGI video formats
- Compatible with line level stereo audio signals
- Offers high ground loop immunity
- Built-in power surge and transient protection circuits to safeguard the switcher
- Features a designated trimmer in the remote unit to compensate for length
- Increases productivity by facilitating testing and performance evaluation of software and equipment, on multiple servers, from a single keyboard mouse and monitor station
- Can be used in multimedia presentations, where the information is transmitted from various computers
In the Box Smart-AVI High Definition HDTV CAT5 Matrix Switch (32 x 16) GUI Software (SM-CSW) Power Supply (CCPWR06US) 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI High Definition HDTV CAT5 Matrix Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSmart-AVI CSW32X16S Specs | | | Bandwidth | 250MHz | | Signal Level | 1V pk-pk into 75R | | Impedance | Output impedance: 75R Ohms
Input impedance: 75R Ohms | | Connector | RJ45 | | Format | VGA/SVGA/XGA/RGB | | | | Bandwidth | 20KHz | | Signal Level | 0dB | | Impedance | Output impedance: 100 Ohms
Input impedance: 10K Ohms | | Input Connector | VIA RJ45 | | | | Bandwidth | Digital | | Signal Level | 5V | | Output Impedance | 100 Ohms | | Input Impedance | 10K Ohms | | Input Connector | HD15 socket | | Cable | Cat5 signals
Pair 1
Red video balanced 1V pk-pk + audio left
Pair 2
Green video balanced 1V pk-pk + audio right
Pair 3
Blue video balanced 1V pk-pk + sync
Pair 4
Data RS232 and IR | | Control | IR: Remote Unit
RS232: Software | | Power | Voltage: 90-230V
Connector: IEC
Fuse rating: 1A A/S
Frequency: 50/60 Hz | | Dimensions (HxWxD) | 5.2 x 19 x 18" (133 x 483 x 450mm) | | Weight | 22 lbs (10kg) |
