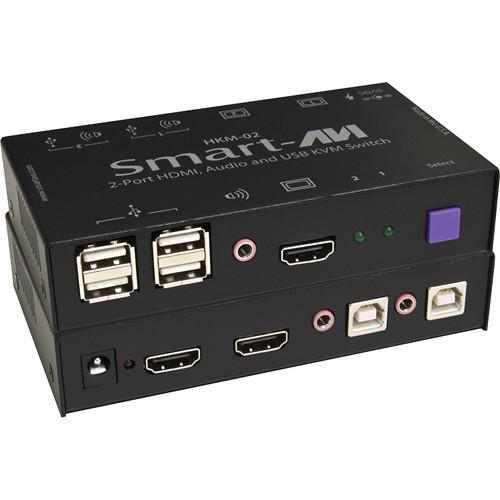

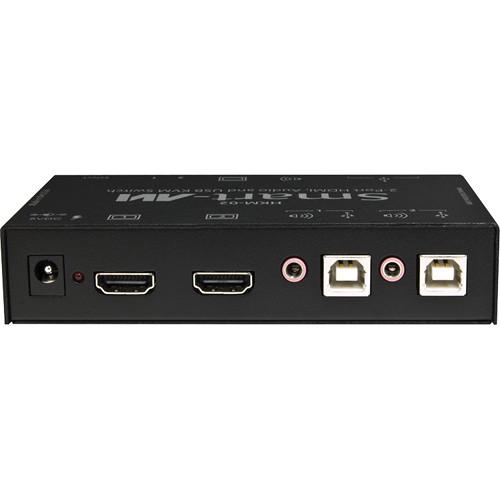

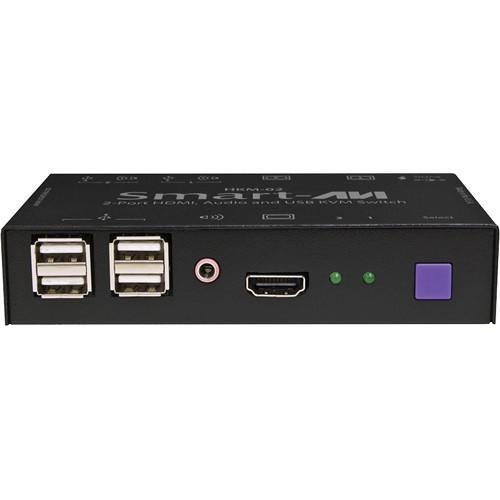

User Manual for Smart-AVI HKM-02 2-Port Cross-Platform HDMI KVM Switch Click to enlarge the picture
Contents of the user manual for the Smart-AVI HKM-02 2-Port Cross-Platform HDMI KVM
- Product category: KVM Switches Smart-AVI
- Brand: Smart-AVI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Smart-AVI KVM Switches
 |
User manual for the Smart-AVI HKM-02 2-Port Cross-Platform HDMI KVM contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Smart-AVI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Smart-AVI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Smart-AVI product will considerably shorten its lifespan!
|
Product description Multi-Monitors: Maximizing Multitasking Read More bwryadxtufxcbsaqyazxcxefd The Smart-AVI HKM-02 2-Port Cross-Platform HDMI KVM Switch is a cross-platform KVM for sharing a WUXGA display, keyboard and mouse, and stereo audio between 2 computers. This KVM switch is especially helpful for situations where multiple computers need to be remotely linked to one set of peripheral devices. Featuring HDMI video support and stereo audio, this device is ideal for use in home theaters and film and recording studios. - Cross-platform KVM for sharing a WUXGA display, keyboard and mouse, and stereo audio between 2 computers.
- Ideal for media-centric use, this device features HDMI video support and balanced stereo audio.
- Compatible with Mac, PC, Linux, and Sun operating systems.
- Front panel switch, LED indicator, and auto-scan mode provide ease of use and simple installation.
UPC: 813280021968 In the Box Smart-AVI HKM-02 2-Port Cross-Platform HDMI KVM Switch Power Adapter 1-Year Limited Warranty Guides & Manuals bwryadxtufxcbsaqyazxcxefd Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI HKM-02 2-Port Cross-Platform HDMI KVM Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Smart-AVI HKM-02 2-Port Cross-Platform HDMI KVM Switch can be downloaded in PDF format at the link stated below.
Technical parametersSmart-AVI HKM-02S Specs | | | Format | HDMI 1.3b (Deep Color, xvYcc color space supported) | | DVI Compliance | Single-link DVI-D 1.1 | | HDCP Compliance | 1.0/1.1 | | Video Bandwidth | Single-link 340MHz (10.2GB/s) | | Resolution | 480i, 480p, 720i, 720p, 1080i, 1080p | | Input/Output Interface | 2 x HDMI (7.1ch audio and video) / 1 x HDMI (7.1ch audio and video) | | Connector | Type A (19-pin female) | | Maximum Distance | 25' / 7.6m | | | | Frequency Response | 20Hz - 20KHz | | Impedance | 600ohm | | Nominal Level | 0 - 1.0V | | Common Mode Rejection | Rejection at 60dB | | Input/Output Interface | 2 x 3.5mm stereo audio / 1 x 3.5mm stereo audio | | | | Signal | USB 1.1 and 1.0 | | Input/Output Interface | 2 x USB Type B / 4 x USB Type A | | | | Control | Front panel tact switch | | Approvals | UL, CE, ROHS compliant | | Power | External 100-240VAC / 5VDC2A at 10W | | Operating Temperature | 32 - 131°F / 0 - 55°C | | Storage Temperature | -4 - 185°F / -20 - 85°C | | Humidity | Up to 95% | | Weight | 12.8oz / 362.9g | | Dimensions | 5 x 1.25 x 2.88" / 12.7 x 3.2 x 7.3cm | | | | Package Weight | 0.85 lb | | Box Dimensions (LxWxH) | 7.8 x 5.3 x 4.3" |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 40 owners. Add your rating and experience with the product.
