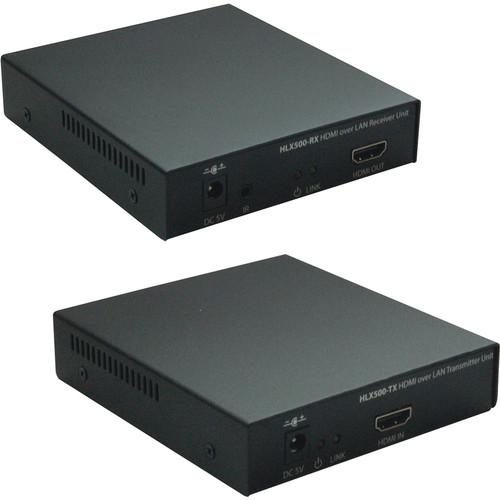

Product description The HLX-500 Chainable HDMI Extender from Smart-AVI consists of the HLX-TX500 Transmitter and HLX-RX500 Receiver. A single extender extends HDMI signals up to 500' via LAN. However, multiple extenders can be chained to generate thousands of feet of HDMI signal extension, breaking distance barriers. Users can set up their own extension cabling or utilize the pre-existing LAN infrastructure they have access to. The HLX-500 HDMI Extender uses compressed data to utilize Cat5e/6 cables, but users will see no degradation of signal when using one Gigabit Internet connections and up. For users utilizing pre-existing LAN connections, implementing a one Gigabit switch allows for full resolution extension. Users with lesser bandwidth will experience compressed signals, if they choose. With no software or driver required, users can easily extend HDMI signals from sources such as HDTVs, Blu-ray players, and video game consoles. The HLX-500 Extender supports up to Full HD 1080p video at 60 Hz, and can be controlled with an IR remote control (not included). The transmitter and receiver are compact units that can be easily integrated into a digital display network at retail stores, restaurants, and office spaces. - HLX-TX500 Chainable HDMI Extender Transmitter The HLX-TX500 Chainable HDMI Extender Transmitter from Smart-AVI transmits HDMI signals up to 500' via LAN. It is designed for use with the HLX-RX500 Receiver. Users can set up their own extension cabling or utilize the pre-existing LAN infrastructure they have access to. The HLX-TX500 Transmitter compresses data to utilize Cat5e/6 cables, but users will see no degradation of signal when using one Gigabit Internet connections and up. For users utilizing pre-existing LAN connections, implementing a one Gigabit switch allows for full resolution extension. Users with lesser bandwidth will experience compressed signals, if they choose. With no software or driver required, users can easily extend HDMI signals from sources such as HDTVs, Blu-ray players, and video game consoles. The HLX-TX500 Transmitter supports up to Full HD 1080p video at 60 Hz, and can be controlled with an IR remote control (not included). The transmitter is a compact unit that can be easily integrated into a digital display network at retail stores, restaurants, and office spaces.
- Transmits HDMI signal up to 500' feet via LAN (CAT5e/6 cables)
- Chainable for thousands of feet of extension
- Supports high resolution Full HD 1080p video (1920 x 1080) at 60 Hz
- Can be controlled with an IR remote control (not included)
- No software or driver required
- Designed and manufactured in USA
UPC: 813280022019 - HLX-RX500 Chainable HDMI Extender Receiver The HLX-RX500 Chainable HDMI Extender Receiver from Smart-AVI receives HDMI signals up to 500' via Cat5e/6. It is designed for use with the HLX-TX500 Transmitter. Users can set up their own extension cabling or utilize the pre-existing LAN infrastructure they have access to.The HLX-RX500 Receiver compresses data to utilize the Cat5e/6 cables, but users see no degradation of signal when using 1Gb Internet connections and up. For users utilizing pre-existing LAN connections, implementing a 1Gb switch allows for full-resolution extension. Users with lesser bandwidth will experience compressed signals.With no software or driver required, users can easily extend HDMI signals from sources such as HDTVs, Blu-ray players, and video game consoles. The HLX-RX500 Receiver supports up to Full HD 1080p60 video, and can be controlled with an IR remote control (not included). The receiver is a compact unit that can be easily integrated into a digital display network at retail stores, restaurants, and office spaces.
- Receives HDMI signal up to 500' feet via Cat5e/6 cables
- Chainable for thousands of feet of extension
- Supports high-resolution Full HD video at 60 Hz
- Can be controlled with an IR remote control (not included)
- No software or driver required
- Designed and manufactured in the USA
In the Box Bundle Items HLX-TX500 Chainable HDMI Extender Transmitter dzruqacwswbtyvvsfcutrqda - PS5VD2A 5V 2A Power Supply
HLX-RX500 Chainable HDMI Extender Receiver Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI HLX-500 Chainable HDMI Extender via LAN in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

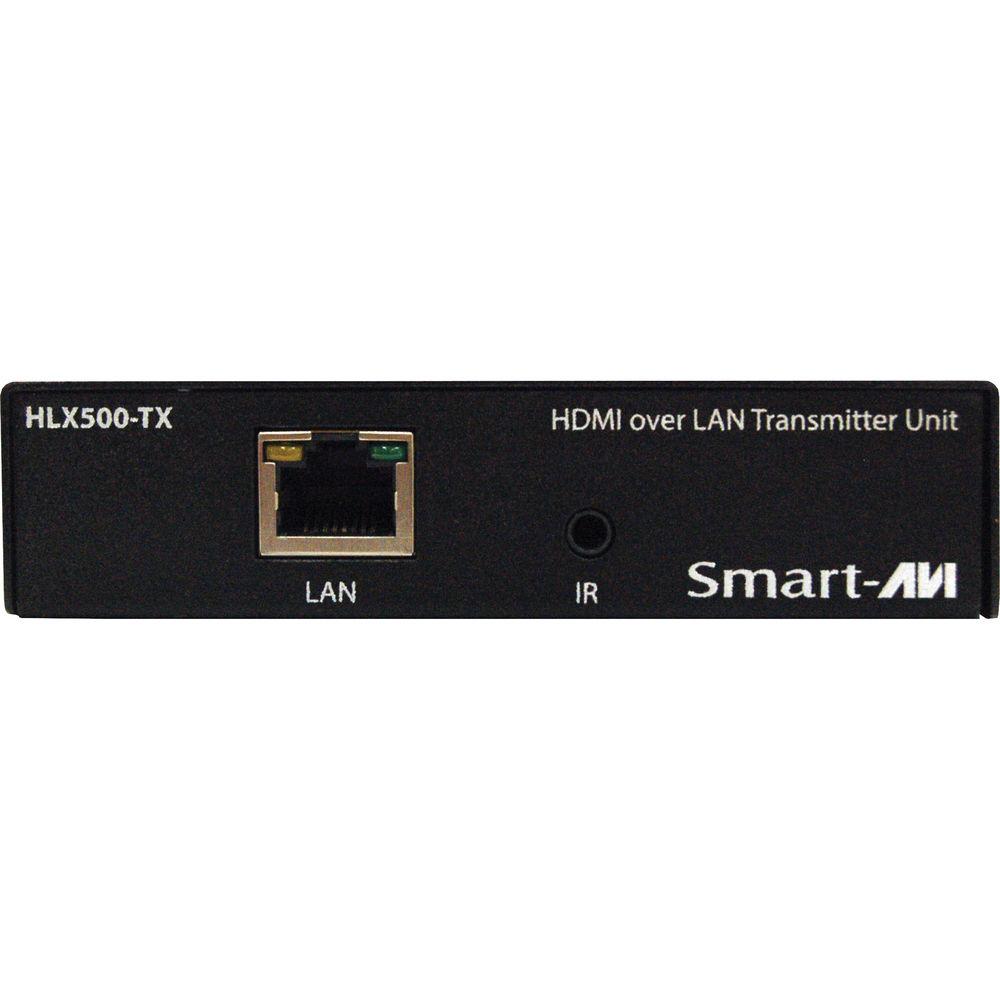

Technical parameters - HLX-TX500 Chainable HDMI Extender Transmitter
| | | Format | HDMI 1.3 and HDCP compliant | | Resolutions | HDTV: 480p, 720p, 1080i, 1080p / 60 Hz / 48-bit
TV: 480i | | Input Interface | HDMI type A 19-pin female TMDS | | Input Cable Length | Up to 40' (12.2 m) | | | | Format | Dolby TrueHD, DTS-HD MA | | Input Interface | HDMI (integrated) | | | | Signal Type | 38 kHz | | Connector | 3.5 mm jack (female) | | | | Baud Rate | Up to 19,200 bps | | Input Interface | DB-9 (serial) female | | | | Interface | RJ45 | | Cable Requirements | CAT5/5e/6 | | Maximum Length | 500' (152.4 m) | | | | Power | External 100 to 240 VAC / 5 VDC, 2 A @ 10 W | | Approvals | UL, CE, ROHS compliant | | Operating Temperature | 32 to 131°F (0 to 55°C) | | Storage Temperature | -4 to 185°F (-20 to 85°C) | | Humidity | Up to 95% | | Dimensions (W x H x D) | 4.0 x 1.0 x 4.3" (10.2 x 2.5 x 10.9 cm) | | Weight | 0.6 lb (0.3 kg) | | | | Box Dimensions (LxWxH) | 22.0 x 10.0 x 9.0" | - HLX-RX500 Chainable HDMI Extender Receiver
| | | Format | HDMI 1.3 and HDCP compliant | | Resolutions | 1080p60 / 48-bit
1080i
720p
480p
480i | | Output Interface | HDMI type A 19-pin, female | | Output Cable Length | Up to 40' / 12.2 m | | | | Format | Dolby TrueHD, DTS-HD MA | | Output Interface | HDMI (integrated) | | | | Signal Type | 38 kHz | | Connector | 3.5 mm jack, female | | | | Baud Rate | Up to 19,200 bps | | Output Interface | DB-9 (serial), female | | | | Interface | RJ45 | | Cable Requirements | Cat5/5e/6 | | Maximum Length | 500' / 152.4 m | | | | Power | External 100 to 240 VAC / 5 VDC, 2 A @ 10 W | | Approvals | UL, CE, ROHS compliant | | Operating Temperature | 32 to 131°F / 0 to 55°C | | Storage Temperature | -4 to 185°F / -20 to 85°C | | Humidity | Up to 95% | | Dimensions (W x H x D) | 4.0 x 1.0 x 4.3" / 10.2 x 2.5 x 10.9 cm | | Weight | 0.6 lb / 0.3 kg |
