User Manual for Smart-AVI HLX-RX500 Chainable HDMI Extender Receiver Click to enlarge the picture
Contents of the user manual for the Smart-AVI HLX-RX500 Chainable HDMI Extender Receiver
- Product category: Video Extenders & Repeaters Smart-AVI
- Brand: Smart-AVI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Smart-AVI Video Extenders & Repeaters
|
User manual for the Smart-AVI HLX-RX500 Chainable HDMI Extender Receiver contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Smart-AVI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Smart-AVI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Smart-AVI product will considerably shorten its lifespan!
|

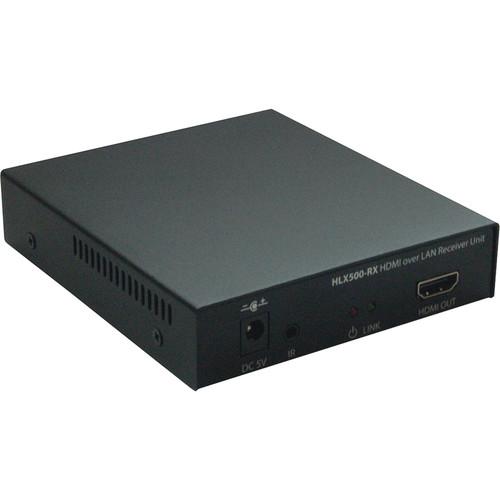

Product description The HLX-RX500 Chainable HDMI Extender Receiver from Smart-AVI receives HDMI signals up to 500' via Cat5e/6. It is designed for use with the HLX-TX500 Transmitter. Users can set up their own extension cabling or utilize the pre-existing LAN infrastructure they have access to.The HLX-RX500 Receiver compresses data to utilize the Cat5e/6 cables, but users see no degradation of signal when using 1Gb Internet connections and up. For users utilizing pre-existing LAN connections, implementing a 1Gb switch allows for full-resolution extension. Users with lesser bandwidth will experience compressed signals.With no software or driver required, users can easily extend HDMI signals from sources such as HDTVs, Blu-ray players, and video game consoles. The HLX-RX500 Receiver supports up to Full HD 1080p60 video, and can be controlled with an IR remote control (not included). The receiver is a compact unit that can be easily integrated into a digital display network at retail stores, restaurants, and office spaces. - Receives HDMI signal up to 500' feet via Cat5e/6 cables
- Chainable for thousands of feet of extension
- Supports high-resolution Full HD video at 60 Hz
- Can be controlled with an IR remote control (not included)
- No software or driver required
- Designed and manufactured in the USA
In the Box Smart-AVI HLX-RX500 Chainable HDMI Extender Receiver Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI HLX-RX500 Chainable HDMI Extender Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSmart-AVI HLX-RX500 Specs | | | Format | HDMI 1.3 and HDCP compliant | | Resolutions | 1080p60 / 48-bit
1080i
720p
480p
480i | | Output Interface | HDMI type A 19-pin, female | | Output Cable Length | Up to 40' / 12.2 m | | | | Format | Dolby TrueHD, DTS-HD MA | | Output Interface | HDMI (integrated) | | | | Signal Type | 38 kHz | | Connector | 3.5 mm jack, female | | | | Baud Rate | Up to 19,200 bps | | Output Interface | DB-9 (serial), female | | | | Interface | RJ45 | | Cable Requirements | Cat5/5e/6 | | Maximum Length | 500' / 152.4 m | | | | Power | External 100 to 240 VAC / 5 VDC, 2 A @ 10 W | | Approvals | UL, CE, ROHS compliant | | Operating Temperature | 32 to 131°F / 0 to 55°C | | Storage Temperature | -4 to 185°F / -20 to 85°C | | Humidity | Up to 95% | | Dimensions (W x H x D) | 4.0 x 1.0 x 4.3" / 10.2 x 2.5 x 10.9 cm | | Weight | 0.6 lb / 0.3 kg |
