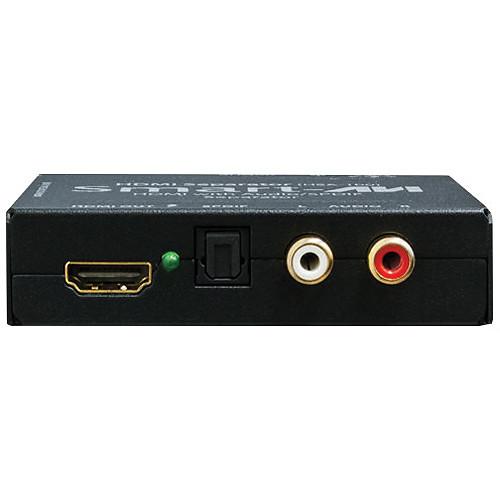

Product description The Smart-AVI HSA-100S HDMI to HDMI & Stereo Audio/SPDIF Converter separates your audio signal from HDMI and sends it to external speakers, an audio receiver without digital inputs, or an amplifier without digital inputs. This HDMI converter supports optical or analog L/R audio in all digital audio formats including 5.1/7.1 Surround. This converter comes with the PS5VDC2A Wall Mount Power Supply. - HDMI 1.3, HDCP 1.1, and DVI 1.1 compliant
- Supports HDMI sample rates up to 192 kHz, optical sample rate up to 48 kHz, TMDS clock frequency rate of 225 MHz, and HBR (High-Bit-Rate) audio
- HDMI cable distance testing showed that with 1080p 8-bit resolution, the input and output can run up to 49.21' (15m)
- Applications: Security, PC networking, conference center systems, point of sale, camera surveillance, video phone, control room systems, and recording studio
UPC: 813280022040 In the Box Smart-AVI HSA-100-S HDMI to HDMI & Stereo Audio/SPDIF Converter with PS5VDC2A Wall Mount Power Supply PS5VDC2A Wall Mount Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI HSA-100-S HDMI to HDMI & Stereo Audio SPDIF Converter with PS5VDC2A Wall Mount Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSmart-AVI HSA-100-S Specs | Format | HDMI Video Input: HDMI 1.3b (deep color, xvYcc color space supported)
HDMI Video Output: HDMI 1.3b (deep color, xvYcc color space supported) | | Compliance | HDMI Video Input:
DVI: Single link DVI-D 1.1
HDCP: 1.0/1.1
HDMI Video Output: DVI: Single link DVI-D 1.1
HDCP: 1.0/1.1 | | Video Bandwidth | HDMI Video Input: Single link 340 MHz (10.2 Gb/s)
HDMI Video Output: Single link 340 MHz (10.2 Gb/s) | | Resolution | HDMI Video Input: 480i, 480p, 720i, 720p, 1080i, 1080p
HDMI Video Output: 480i, 480p, 720i, 720p, 1080i, 1080p | | Input Interface (TX) | HDMI Video Input: 1 x HDMI (7.1 channel audio & video)
HDMI Video Output: 1 x HDMI (7.1 channel audio & video) | | Connector | HDMI Video Input: Type A (19-pin female)
HDMI Video Output: Type A (19-pin female) | | Distance | HDMI Video Input: Maximum 25.00' (7.62 m)
HDMI Video Output: Maximum 25.00' (7.62 m)
S/PDIF Audio Output: 30.00' (9.14 m) | | Frequency Response | RCA Audio Output: 20 Hz to 20 kHz | | Impedance | RCA Audio Output: 600 Ω | | Nominal Level | RCA Audio Output: 0 to 1 V
S/PDIF Audio Output: 0.2 V | | Common Mode Rejection | RCA Audio Output: Rejection at 60 dB | | Output Interface | RCA Audio Output: Right/left RCA female
S/PDIF Audio Output: TOSLINK female | | Output Level | S/PDIF Audio Output: 0.5 to 0.6 V peak to peak | | Input Level | S/PDIF Audio Output: Minimum 600 Ω | | Power | External 100 to 240 VAC/5 VDC; 2 A @ 10 W | | Temperature | Operating: 32 to 131°F (0 to 55°C)
Storage: -4 to 185°F (-20 to 85°C) | | Humidity | Up to 95% | | Dimensions (W x H x D) | 3.38 x 0.88 x 2.50" (85.85 x 22.35 x 63.50 mm) | | Weight | 0.83 lb (0.38 kg) | | | | Package Weight | 0.65 lb | | Box Dimensions (LxWxH) | 5.7 x 4.4 x 3.1" |
