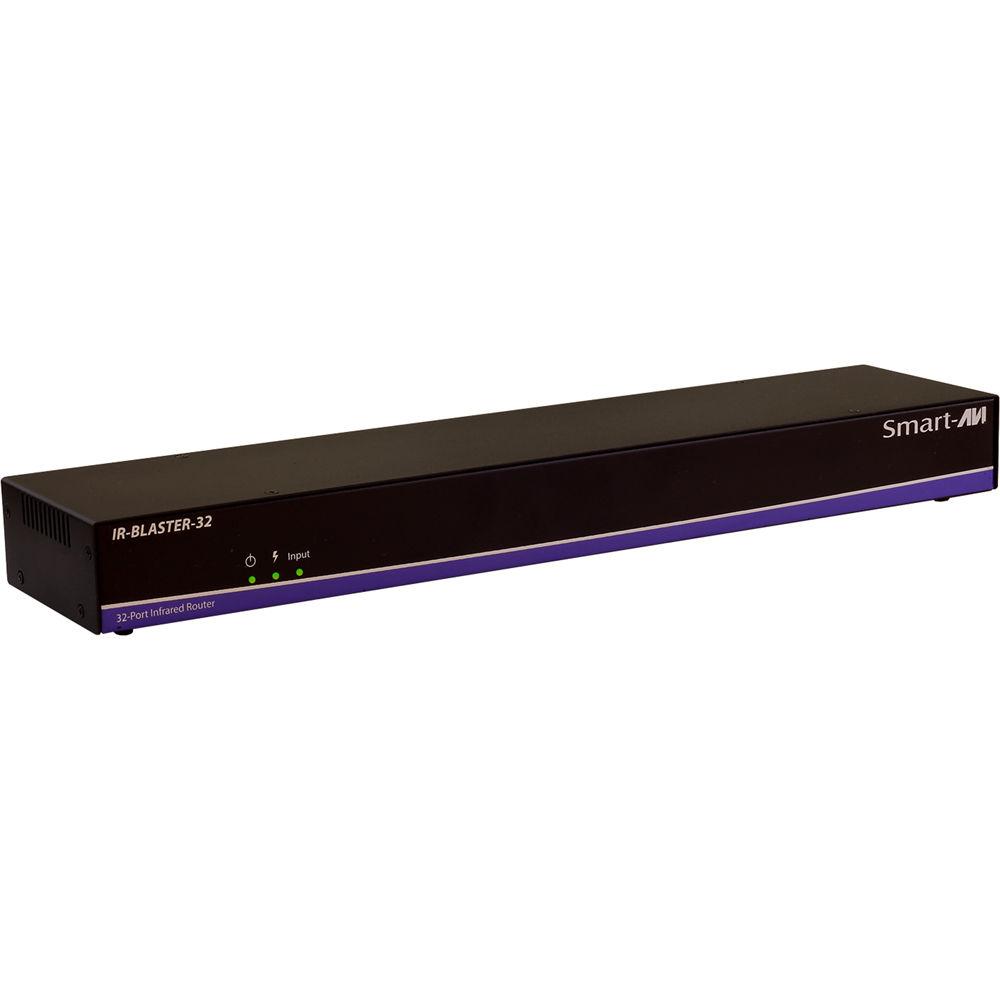

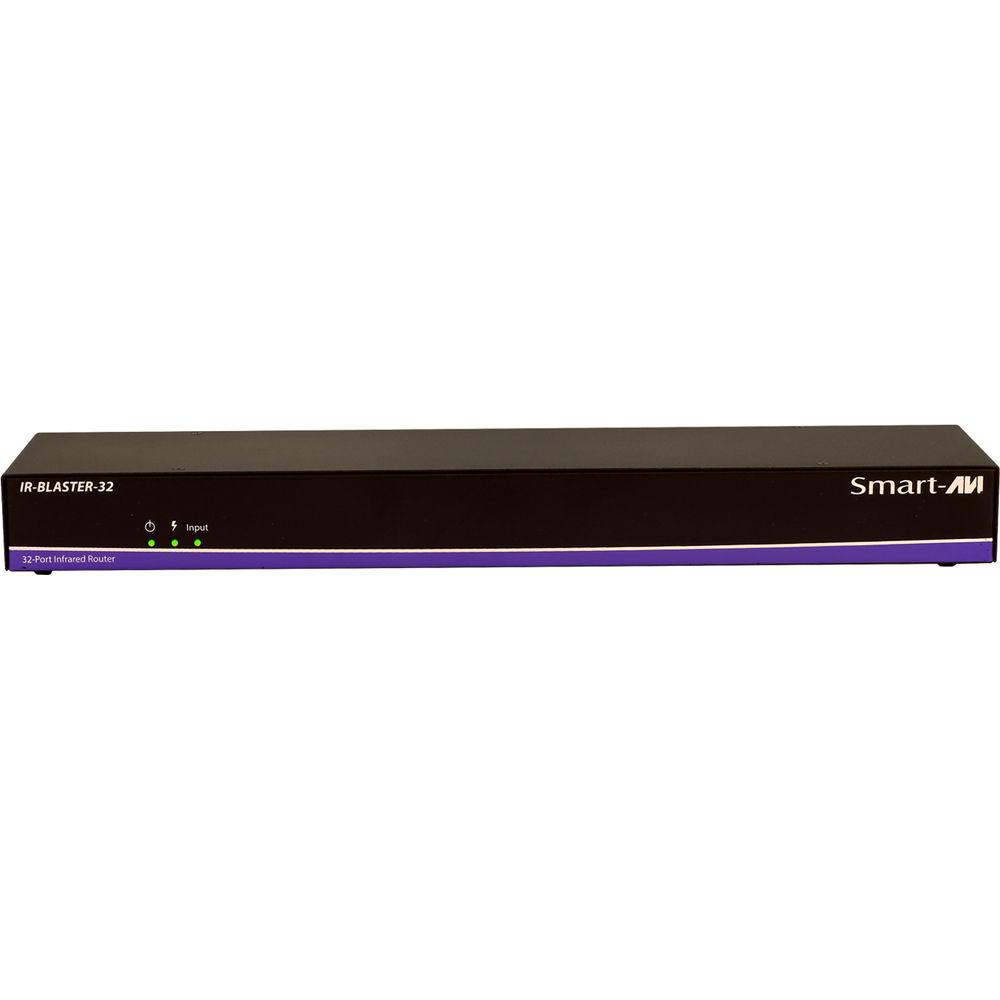

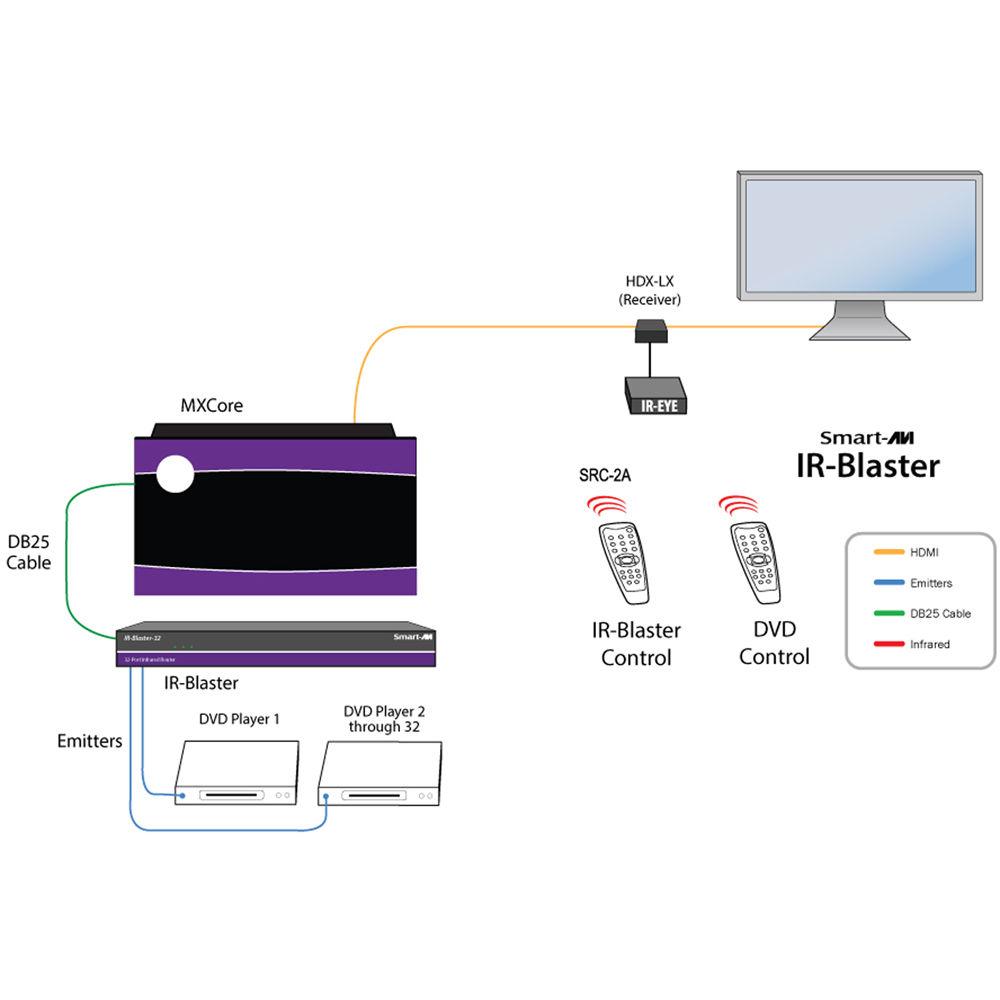

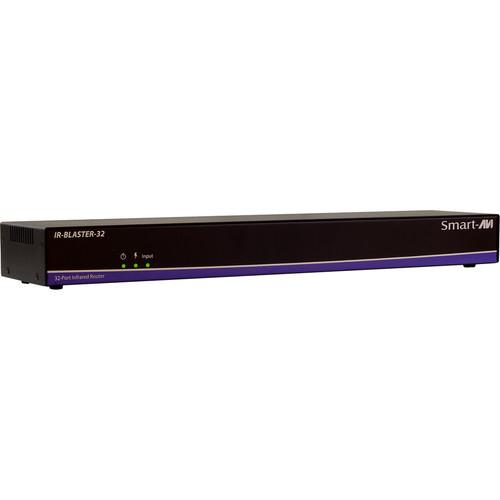

Product description The IR-Blaster 32-Port Infrared Router from Smart-AVI is a router which can switch matrix inputs and manage input devices from one unit over infrared. It can switch input and output sources while controlling the devices that deliver signal to the matrix simultaneously, by utilizing infrared signals and the data transferring capabilities of HDMI cables. The IR-Blaster features full matrix signal routing so that each IR input can be routed to any combination of IR outputs. Additionally, each output can drive the IR emitter up to 30 feet away. It controls matrix switching up to 32 x 32, with simultaneous control of up to 32 input devices via infrared. The router is fully compliant with standard modulated IR protocols and the latest IRDA standards. - Controls routers up to 32 x 32
- Full matrix signal routing
- Fully compliant with standard modulated IR protocols and the latest IRDA standards
- Enables matrix switching and input device control
- Allows users to control A/V set ups remotely
- SmartAVI SRC-2A remote control
- Applications: wall displays, digital signage, airports, dealer rooms, control rooms, audio/visual presentations, shopping centers, security, point-of-sale, hotels/resorts
- Designed and manufactured in the USA
In the Box Smart-AVI IR-Blaster 32-Port Infrared Router PS5VD4A Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI IR-Blaster 32-Port Infrared Router in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSmart-AVI IRB-MX32PS Specs | IR Frequency Range | IR Eye Input: 30-80 kHz

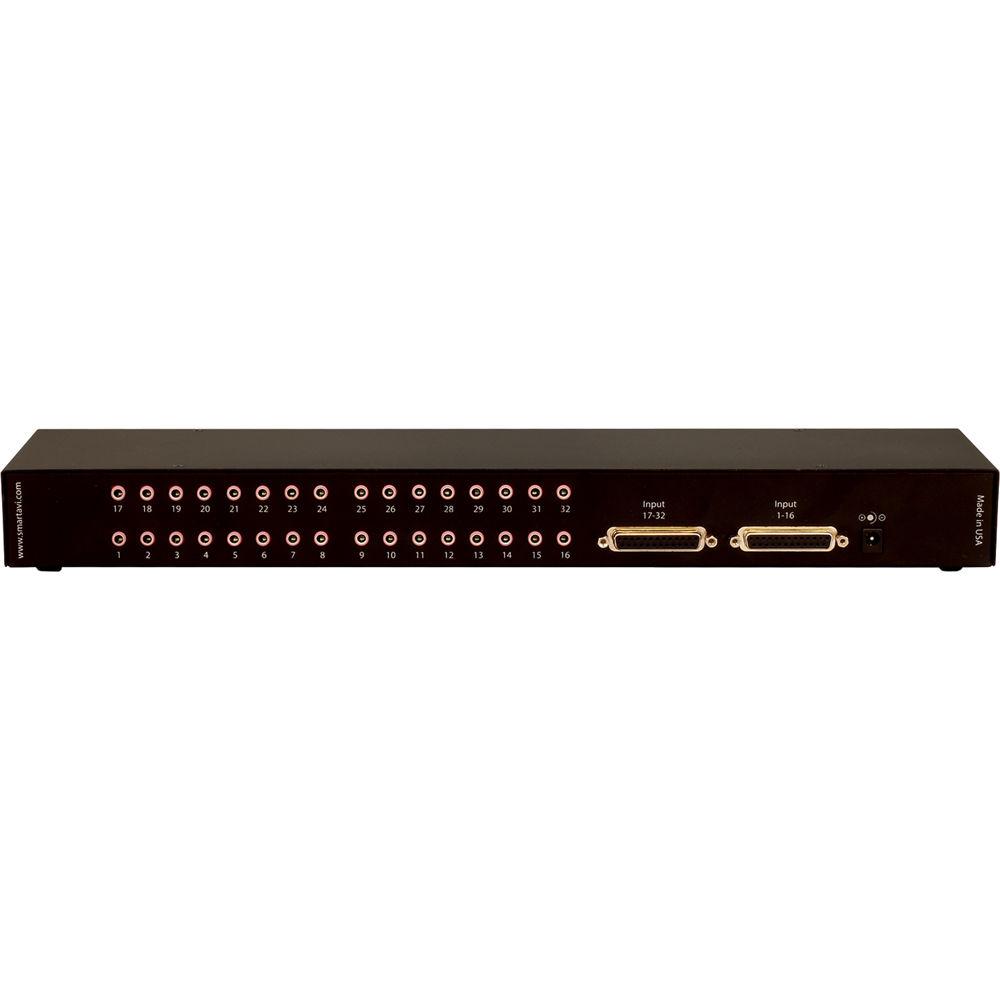

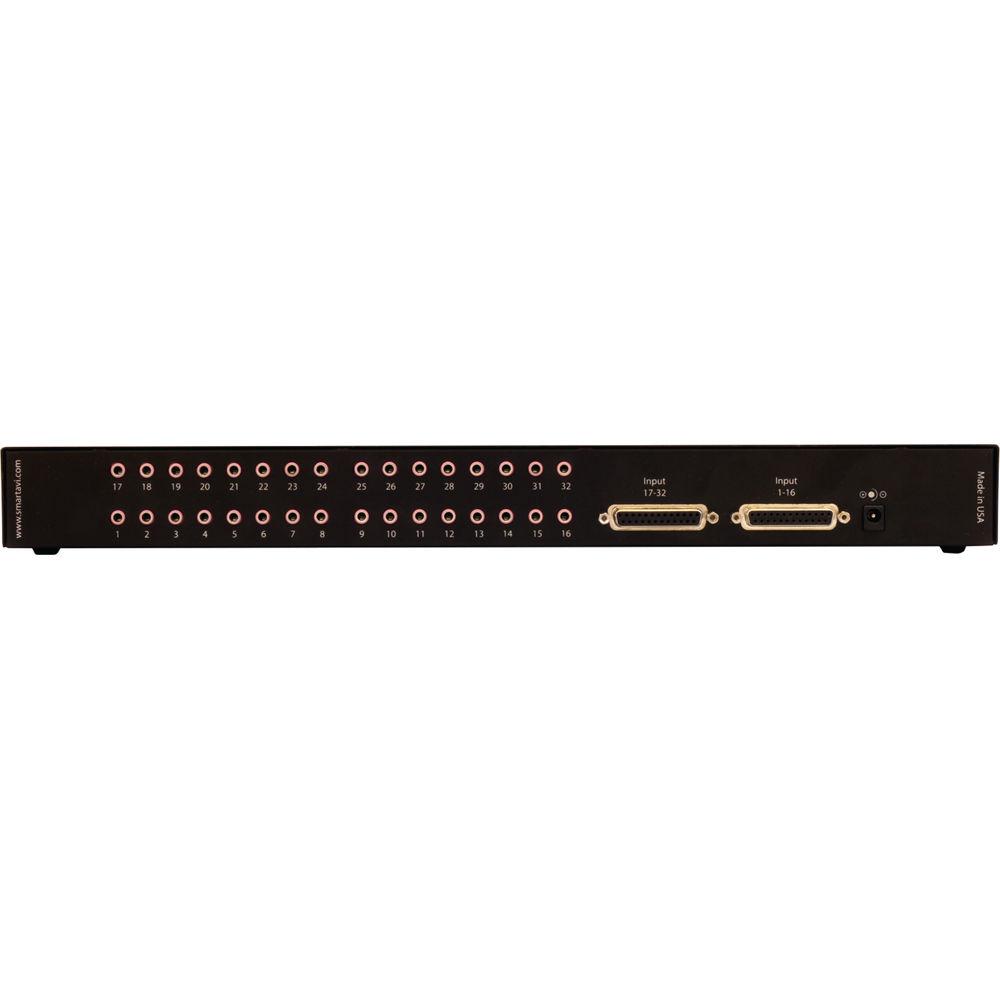

IR Emitter Output: 30-80 kHz | | Inputs/Outputs | 32 x 3.5 mm stereo phone jack, output
25-pin Sub-D, matrix input

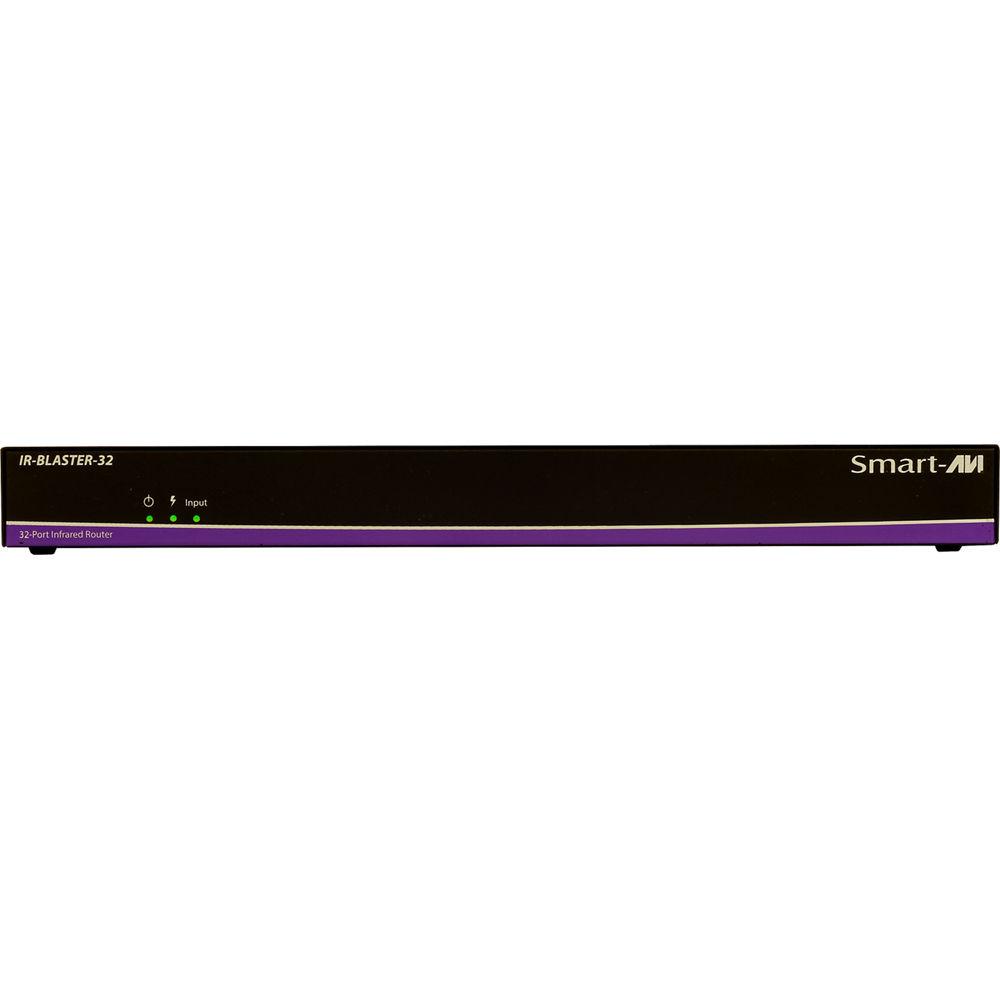

DC power, power input | | Indicators | 1 x LED green, input
1 x LED green, status
1 x LED green, power | | Distance | Capture: 30' (9 m) maximum
Emitter: 25' (8 m) maximum | | Signal Type | TTL | | Power Requirements | 12 VDC, 2 A | | Dimensions | 17.0 x 3.8 x 1.8" (43.2 x 9.5 x 4.4 cm) | | Weight | 5 lb (2.27 kg) approx. |
