User Manual for Smart-AVI IR-EYE External Infrared Remote Control Receiver Click to enlarge the picture
Contents of the user manual for the Smart-AVI IR-EYE External Infrared Remote Control
- Product category: DA & Extender/Repeater Accessories Smart-AVI
- Brand: Smart-AVI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Smart-AVI DA & Extender/Repeater Accessories
 |
User manual for the Smart-AVI IR-EYE External Infrared Remote Control contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Smart-AVI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Smart-AVI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Smart-AVI product will considerably shorten its lifespan!
|

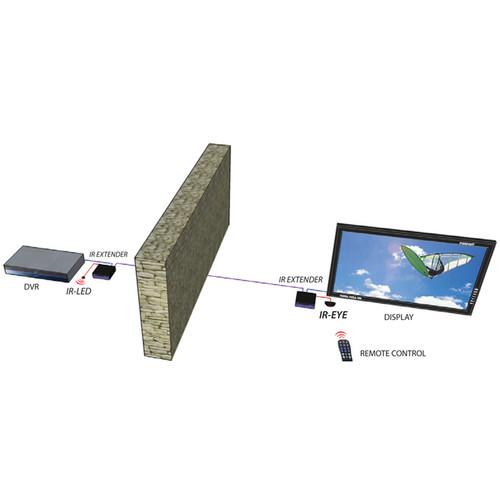

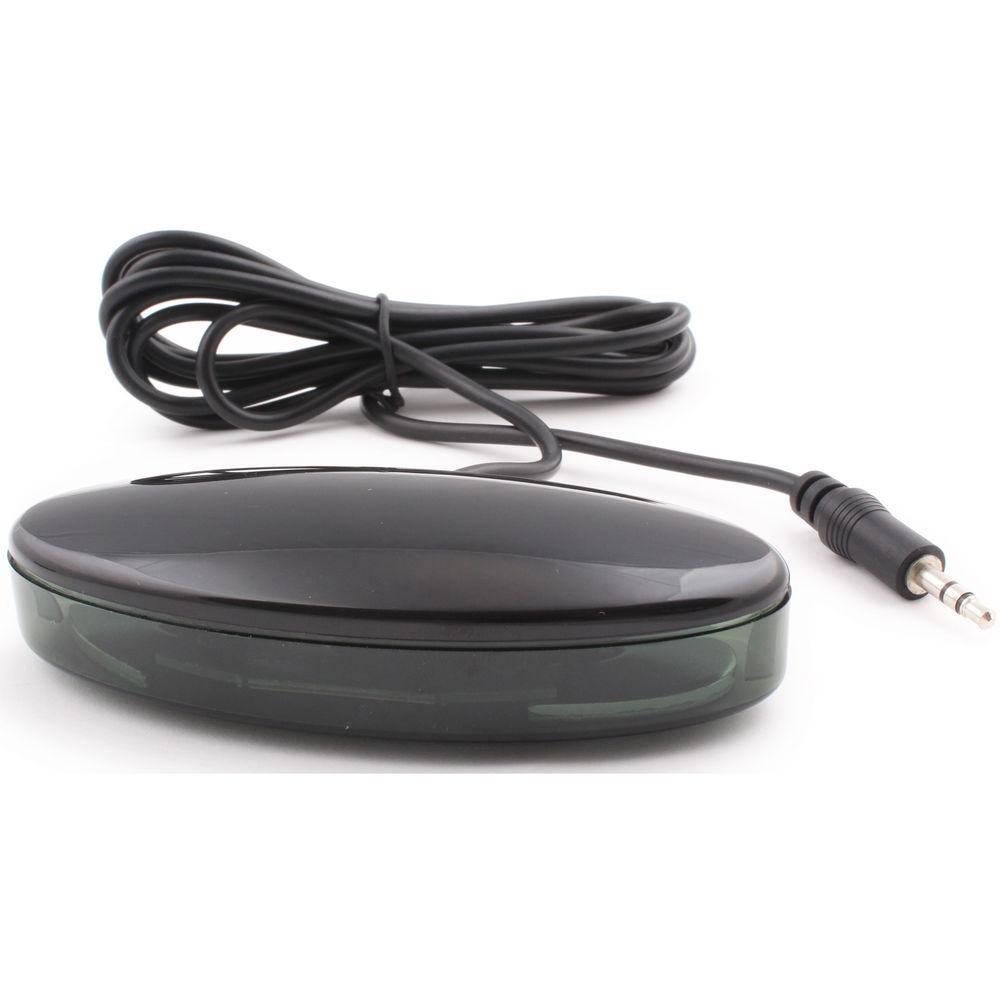

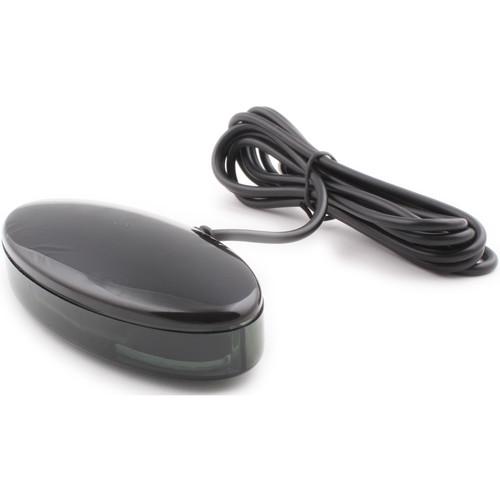

Product description The IR-EYE External Infrared Remote Control Receiver from Smart-AVI is an IR receiver which receives infrared signals from your remote control and sends them to your media center device by way of an infrared extender (sold separately); this allows you to place your media center device in a centralized location which is not in the line-of sight of your display. The IR-EYE is designed to work in combination with the IR-LED transmitter (sold separately); the IR-LED inputs the wired signal from the infrared extender and transmits it via IR to your media center device. The receiver can be used with audio visual equipment, home appliances, infrared remote control toys, industrial control devices, CATV set top boxes, optical switches, and more. - Receives infrared signals from almost any remote control device
- Designed to mount on a cabinet, TV, or wall

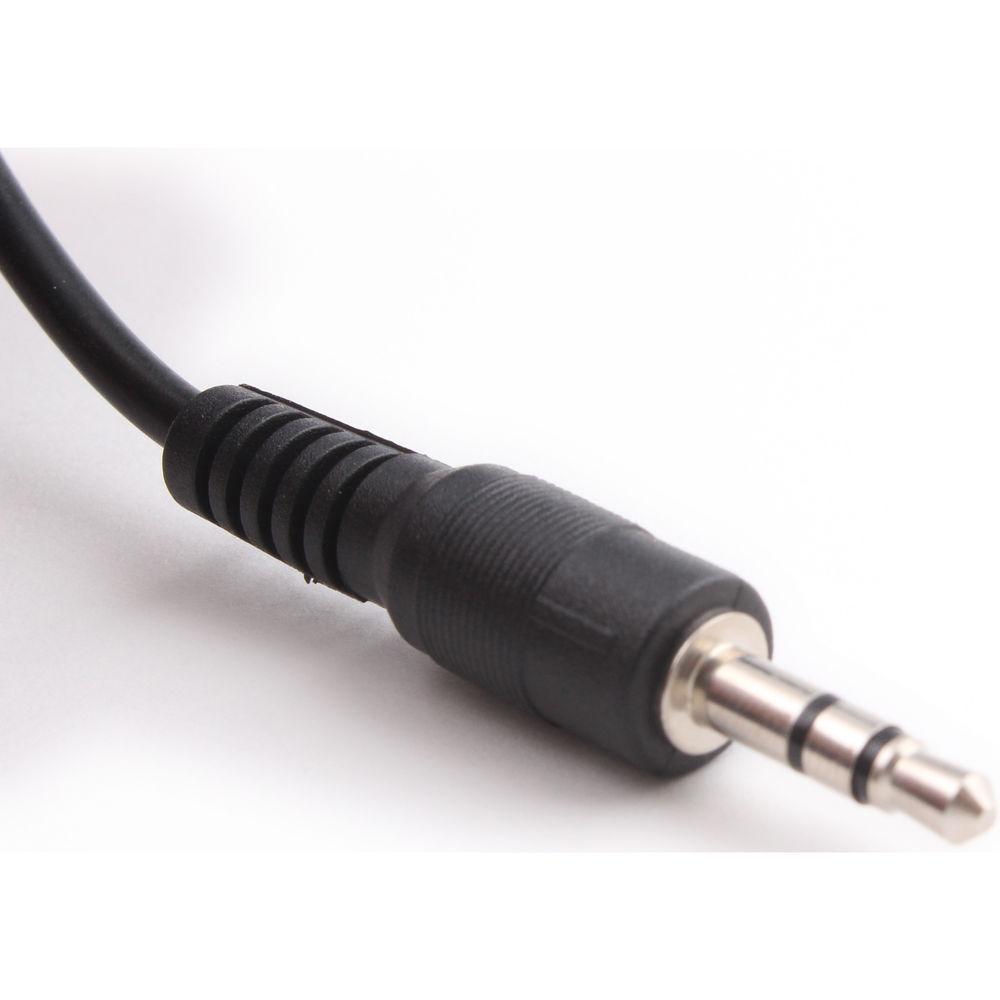

- 3.5mm quad mini phone connector connects to IR extender
- Ambient light noise suppressor reduces interference
- Receives infrared signals from up to 50' away
- Frequency range from 20 to 60 kHz
- Can be used with audio visual equipment, home appliances, infrared remote control toys, industrial control devices, CATV set top boxes, optical switches, and more
UPC: 813280022071 In the Box Smart-AVI IR-EYE External Infrared Remote Control Receiver Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI IR-EYE External Infrared Remote Control Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSmart-AVI IR-EYE Specs | Signal Type | TTL | | Frequency | 20 - 60 kHz | | Receiving Range | 10 to 50' (3.0 to 15.2 m) | | Connector | 1 x 3.5 mm, quad mini phone plug | | Compatibility | IR-LED type 3 | | Operating Temperature | 32 to 131°F (0 to 55°C) | | Storage Temperature | -4 to 185°F (-20 to 85°C) | | Humidity | Up to 95% | | Approvals | UL and CE
RoHS compliant | | Dimensions | 0.5 x 0.5 x 1.0" (1.3 x 1.3 x 2.5 cm) | | Weight | 0.2 lb (0.1 kg) | | | | Box Dimensions (LxWxH) | 10.0 x 8.0 x 7.0" |
