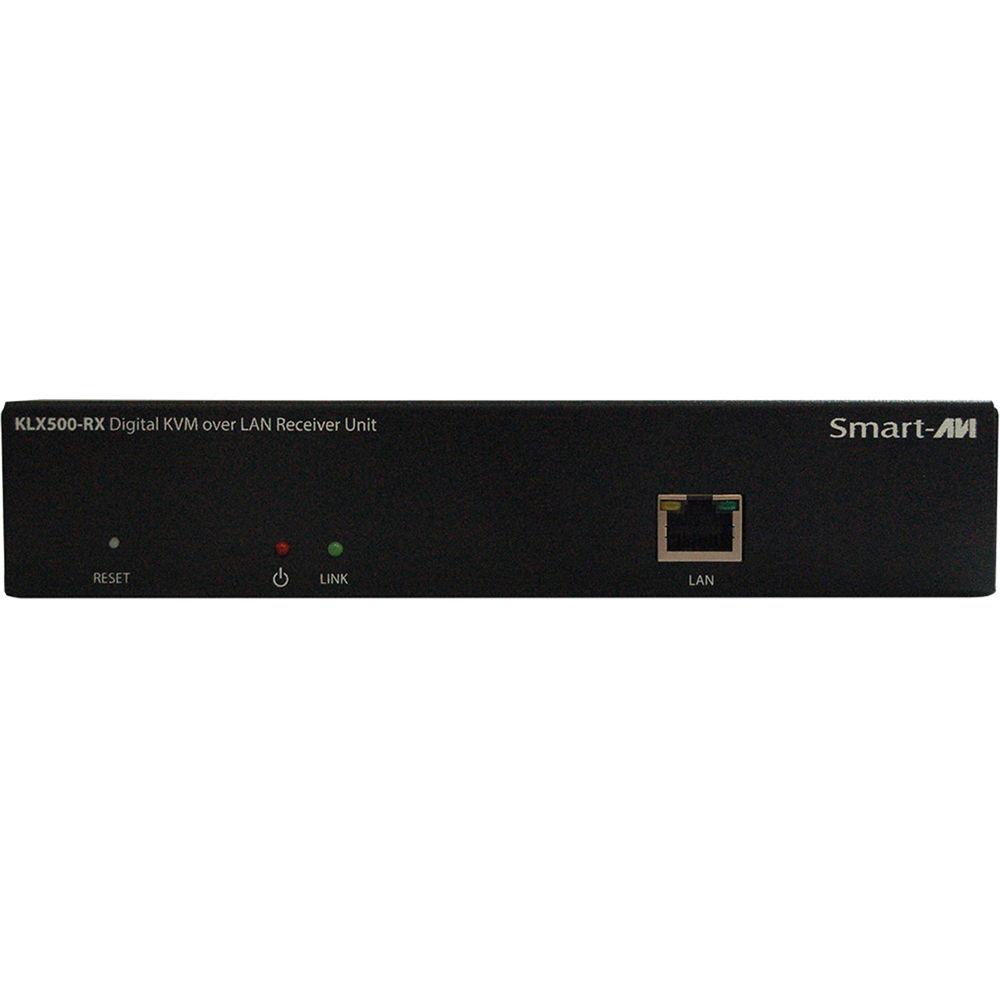

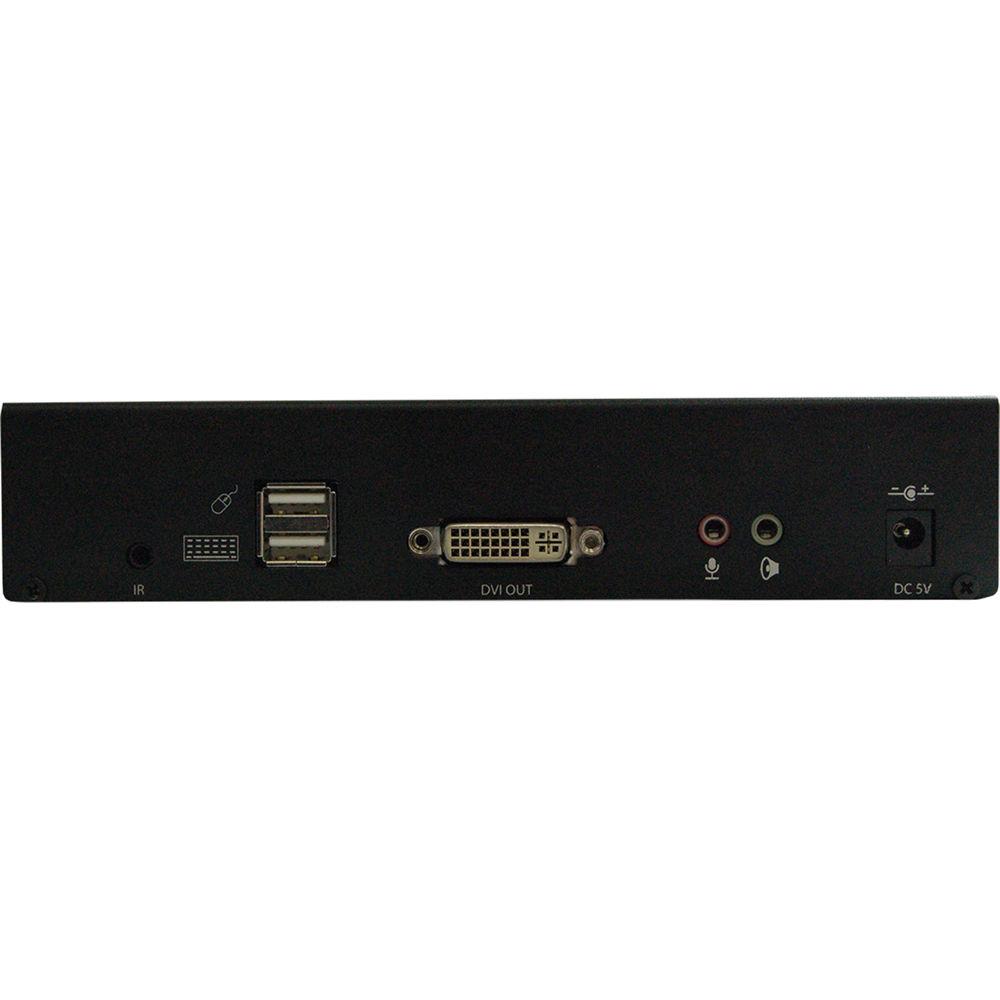

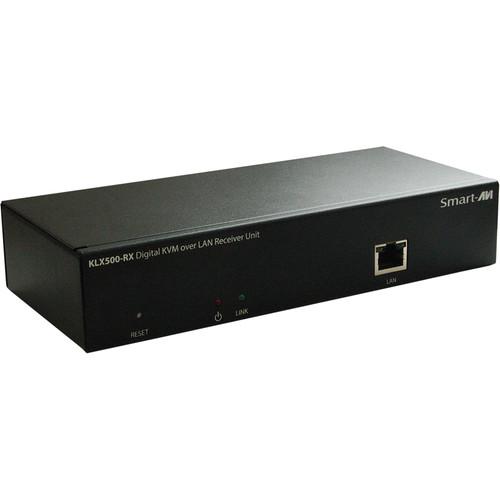

User Manual for Smart-AVI KLX-RX500 Chainable DVI VGA KVM Receiver Click to enlarge the picture
Contents of the user manual for the Smart-AVI KLX-RX500 Chainable DVI VGA KVM
- Product category: KVM Extenders Smart-AVI
- Brand: Smart-AVI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Smart-AVI KVM Extenders
 |
User manual for the Smart-AVI KLX-RX500 Chainable DVI VGA KVM contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Smart-AVI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Smart-AVI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Smart-AVI product will considerably shorten its lifespan!
|
Product description The KLX-RX500 Chainable DVI/VGA KVM Receiver from Smart-AVI receives DVI/VGA, KVM, and IR signals up to 500' via LAN. It is designed for use with the KLX-TX500 Transmitter. You can set up you own extension cabling or utilize the pre-existing LAN infrastructure you have access to. The KLX-RX500 Receiver compresses data to utilize Cat5e/6 cables, but you will see no degradation of signal when using one Gigabit Internet connections and up. When utilizing pre-existing LAN connections, implementing a one Gigabit switch allows for full resolution extension. If you use smaller bandwidth, you will experience compressed signals, if you choose to forgo the additional switch. With no software or driver required, you can easily extend DVI/VGA, KVM, and IR signals. The KLX-RX500 Receiver supports USB emulation and Full HD 1080p video at 60 Hz, and can be controlled with an IR remote control (not included). The receiver is a compact unit that is suitable for use in pre-configured work environments. - Receives KVM signals up to 500' feet via LAN (CAT5e/6 cables)
- Chainable for thousands of feet of extension
- Supports DVI and VGA monitors
- Supports full USB emulation
- Dual control operation with both local and remote use of KVM
- Supports high resolution Full HD 1080p up to 1920 x 1080 resolution at 60 Hz
- Can be controlled with an IR remote control (not included)
- No software or driver required
In the Box Smart-AVI KLX-RX500 Chainable DVI/VGA KVM Receiver Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI KLX-RX500 Chainable DVI VGA KVM Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSmart-AVI KLX-RX500 Specs | | | Format | DVI-D | | Resolutions | HDTV: 480p, 720p, 1080i, 1080p / 60 Hz / 48-bit
TV: 480i | | Output Connectors | 1 x DVI-I
2 x USB type A female | | Output Cable Length | Up to 40' (12.2 m) | | | | Format | Stereo | | Output Connectors | 1 x 3.5 mm phone jack female | | | | Connector | RJ45 | | Cable Requirements | CAT5/5e/6 | | Maximum Length | 500' (152.4 m) | | | | Power | External 100 to 240 VAC / 5 VDC, 2 A @ 10 W | | Approvals | UL, CE, ROHS compliant | | Operating Temperature | 32 to 131°F (0 to 55°C) | | Storage Temperature | -4 to 185°F (-20 to 85°C) | | Humidity | Up to 80% | | Dimensions | 7.0 x 1.4 x 3.3" (17.8 x 3.6 x 8.4 cm) | | Weight | 0.6 lb (0.3 kg) |
