Product description The Mini-XT-RXS VGA Extender with Audio Receiver from Smart-AVI is a receiver unit which can receive a VGA video signal at up to 1,000' away via a single CAT5e/6 cable. At a 250' distance the maximum video resolution is 1920 x 1200. In addition, audio can be received via the 3.5mm jack. The unit has adjustable brightness and focus attenuation dials, which give you better control over the video quality. The receiver requires power, and can be powered with the included 5V power supply. The Mini-XT-RXS is suitable for corporate and educational environments, industrial workstations, airports, medical campuses, production studios, and more. - Up to 1,000' of signal extension
- Up to 1920 x 1200 video resolution
- Internal EDID for full support
- Supports adjustable video gain control to compensate for distance
- Adjustable brightness control to enhance the signal under long distance transmission
- Supports VGA, SVGA, XGA, SXGA and Multisync monitors
- Complies with Windows, LINUX, Mac OS 8.6/9/10, and SUN Solaris
UPC: 813280018425 In the Box Smart-AVI Mini-XT-RXS VGA Extender w/ Audio Receiver over CAT5e/6 5 VDC 2A Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI Mini-XT-RXS VGA Extender w Audio Receiver over CAT5e 6 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSmart-AVI MINI-XT-RXS Specs | Connectors | 1 x RJ45, port

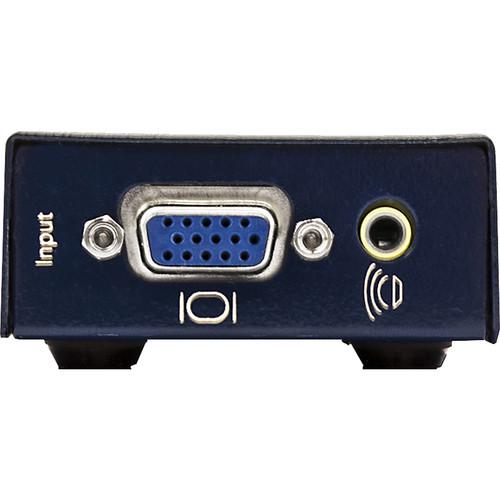

1 x VGA, video output
1 x 3.5 mm jack, audio output

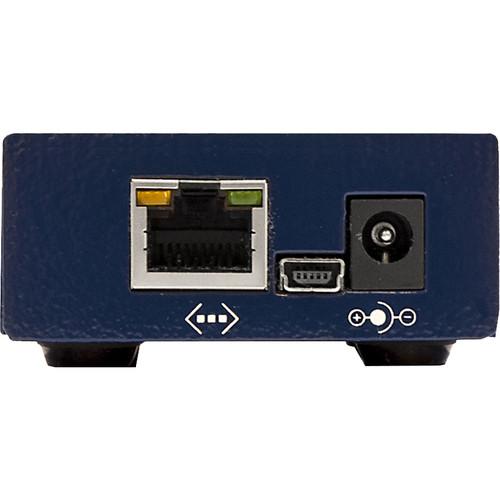

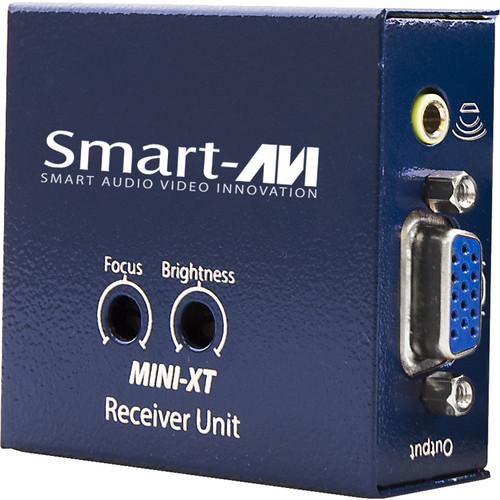

1 x DC power jack, power input | | Controls | 1 x Dial, focus
1 x Dial, bright with Ultra-Bright switch | | Bandwidth | 150 MHz -3 dB @ 1500 V/us | | Video Input Level | ±0.75 Vrms, typical | | Maximum Resolution / Distance | 1920 x 1200 - 250' (76.2 m)
1600 x 1200 - 325' (99.1 m)
1440 x 900 - 500' (152.4 m)
1280 x 1024 - 650' (198.1 m)
1024 x 768 - 820' (249.9 m)
800 x 600 - 1,000' (304.8 m) | | Audio Sampling Rate | 32 kHz, 24-bits @ 256 f/s | | Audio Bandwidth | -0.1 dB @ 20 Hz
-3 dB @ 126 kHz | | Temperature | Operating: 32 to 122°F (0 to 50°C)
Storage: -4 to 140°F (-20 to 60°C) | | Humidity | 0 - 80% | | Power Consumption | 300 mA | | Power Source | 5 VDC, 2A | | Dimensions | 2.6 x 2.0 x 1.1" (6.5 x 5.2 x 2.7 cm) | | Weight | 8.8 oz (249.5 g) | | | | Box Dimensions (LxWxH) | 14.0 x 14.0 x 7.0" |
