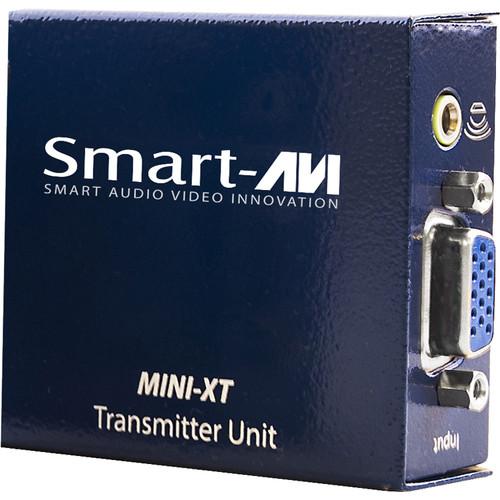

Product description The Mini-XT-TXS VGA Extender with Audio Transmitter from Smart-AVI is a transmitter unit that can transmit a VGA video signal to up to 1,000' away via a single CAT5e/6 cable. At a 250' distance the maximum video resolution is 1920 x 1200. In addition, audio can be transmitted via the 3.5mm jack. The transmitter requires power, and can be powered with the included 5V power supply or via the mini-USB port. The Mini-XT-TXS is suitable for corporate and educational environments, industrial workstations, airports, medical campuses, production studios, and more. - Up to 1,000' of signal extension
- Up to 1920 x 1200 video resolution
- Internal EDID for full support
- Supports adjustable video gain control to compensate for distance
- Adjustable brightness control to enhance the signal under long distance transmission
- Supports VGA, SVGA, XGA, SXGA and Multisync monitors
- Complies with Windows, LINUX, Mac OS 8.6/9/10, and SUN Solaris
UPC: 813280018432 In the Box Smart-AVI Mini-XT-TXS VGA Extender w/ Audio Transmitter over CAT5e/6 5 VDC 2A Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI Mini-XT-TXS VGA Extender w Audio Transmitter over CAT5e 6 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSmart-AVI MINI-XT-TXS Specs | Connectors | 1 x RJ45, port

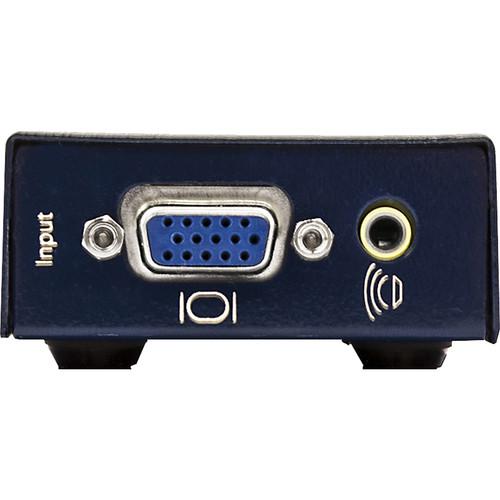

1 x VGA, video input
1 x 3.5 mm jack, audio input

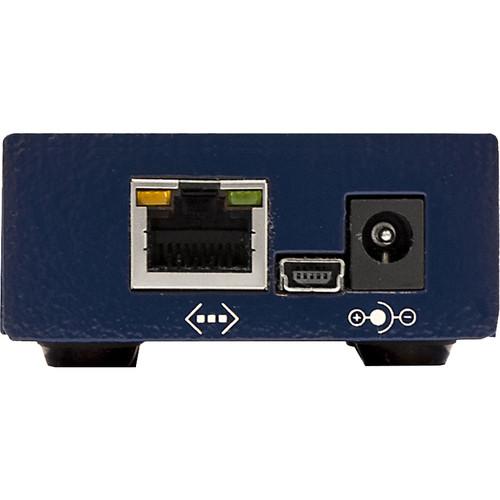

1 x Mini-USB, port
1 x DC power jack, power input | | Bandwidth | 150 MHz -3 dB @ 1500 V | | Video Input Level | ±0.75 Vrms | | Maximum Resolution / Distance | 1920 x 1200 - 250' (76.2 m)
1600 x 1200 - 325' (99.1 m)
1440 x 900 - 500' (152.4 m)
1280 x 1024 - 650' (198.1 m)
1024 x 768 - 820' (249.9 m)
800 x 600 - 1,000' (304.8 m) | | Audio Sampling Rate | 32 kHz, 24-bits @ 256 f/s | | Audio Input Impedance | 10 kOhms | | Audio Input Level | 2 Vrms, line level | | Temperature | Operating: 32 to 122°F (0 to 50°C)
Storage: -4 to 140°F (-20 to 60°C) | | Humidity | 0 - 80% | | Power Consumption | 100 mA | | Power Source | 5 VDC 2A, mini-USB | | Dimensions | 2.6 x 2.0 x 1.1" (6.5 x 5.2 x 2.7 cm) | | Weight | 8.8 oz (249.5 g) | | | | Box Dimensions (LxWxH) | 14.0 x 14.0 x 7.0" |
