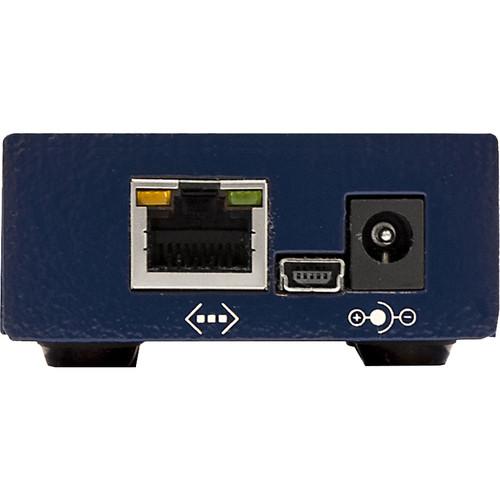

Product description The Mini-XTS VGA Extender with Audio from Smart-AVI is a transmitter unit and a receiver unit set which extends a VGA video signal up to 1,000' away over a single CAT5e/6 cable. At a 250' distance the maximum video resolution is 1920 x 1200. In addition, audio can be transmitted via the 3.5mm jack. The receiver has adjustable brightness and focus attenuation dials, which give you better control over the video quality. Both the receiver and transmitter require power. They can be powered with the included power supplies, and the transmitter can be powered via the mini-USB port as well. The Mini-XTS is suitable for corporate and educational environments, industrial workstations, airports, medical campuses, production studios, and more. - Mini-XT-RXS VGA Extender w/ Audio Receiver over CAT5e/6 The Mini-XT-RXS VGA Extender with Audio Receiver from Smart-AVI is a receiver unit which can receive a VGA video signal at up to 1,000' away via a single CAT5e/6 cable. At a 250' distance the maximum video resolution is 1920 x 1200. In addition, audio can be received via the 3.5mm jack. The unit has adjustable brightness and focus attenuation dials, which give you better control over the video quality. The receiver requires power, and can be powered with the included 5V power supply. The Mini-XT-RXS is suitable for corporate and educational environments, industrial workstations, airports, medical campuses, production studios, and more.
- Up to 1,000' of signal extension
- Up to 1920 x 1200 video resolution
- Internal EDID for full support
- Supports adjustable video gain control to compensate for distance
- Adjustable brightness control to enhance the signal under long distance transmission
- Supports VGA, SVGA, XGA, SXGA and Multisync monitors
- Complies with Windows, LINUX, Mac OS 8.6/9/10, and SUN Solaris

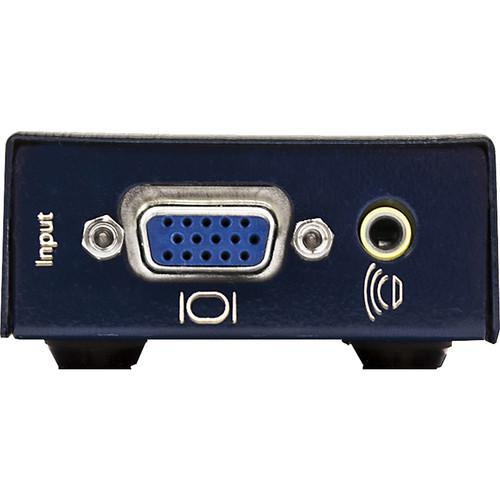

UPC: 813280018425 - Mini-XT-TXS VGA Extender w/ Audio Transmitter over CAT5e/6 The Mini-XT-TXS VGA Extender with Audio Transmitter from Smart-AVI is a transmitter unit that can transmit a VGA video signal to up to 1,000' away via a single CAT5e/6 cable. At a 250' distance the maximum video resolution is 1920 x 1200. In addition, audio can be transmitted via the 3.5mm jack. The transmitter requires power, and can be powered with the included 5V power supply or via the mini-USB port. The Mini-XT-TXS is suitable for corporate and educational environments, industrial workstations, airports, medical campuses, production studios, and more.
- Up to 1,000' of signal extension
- Up to 1920 x 1200 video resolution
- Internal EDID for full support
- Supports adjustable video gain control to compensate for distance
- Adjustable brightness control to enhance the signal under long distance transmission
- Supports VGA, SVGA, XGA, SXGA and Multisync monitors
- Complies with Windows, LINUX, Mac OS 8.6/9/10, and SUN Solaris

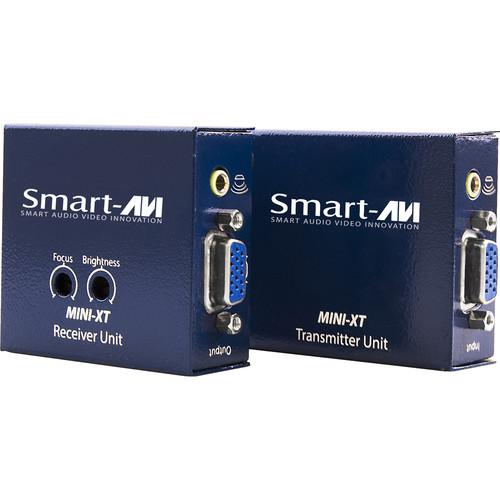

UPC: 813280018432 In the Box Bundle Items Mini-XT-RXS VGA Extender w/ Audio Receiver over CAT5e/6 yedevete Mini-XT-TXS VGA Extender w/ Audio Transmitter over CAT5e/6
Also Includes - 2 x 5 VDC 2A Power Supplies
- Limited 1-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI Mini-XTS VGA Extender with Audio over CAT5e 6 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Mini-XT-RXS VGA Extender w/ Audio Receiver over CAT5e/6
| Connectors | 1 x RJ45, port
1 x VGA, video output
1 x 3.5 mm jack, audio output
1 x DC power jack, power input | | Controls | 1 x Dial, focus
1 x Dial, bright with Ultra-Bright switch | | Bandwidth | 150 MHz -3 dB @ 1500 V/us | | Video Input Level | ±0.75 Vrms, typical | | Maximum Resolution / Distance | 1920 x 1200 - 250' (76.2 m)
1600 x 1200 - 325' (99.1 m)
1440 x 900 - 500' (152.4 m)
1280 x 1024 - 650' (198.1 m)
1024 x 768 - 820' (249.9 m)
800 x 600 - 1,000' (304.8 m) | | Audio Sampling Rate | 32 kHz, 24-bits @ 256 f/s | | Audio Bandwidth | -0.1 dB @ 20 Hz
-3 dB @ 126 kHz | | Temperature | Operating: 32 to 122°F (0 to 50°C)
Storage: -4 to 140°F (-20 to 60°C) | | Humidity | 0 - 80% | | Power Consumption | 300 mA | | Power Source | 5 VDC, 2A | | Dimensions | 2.6 x 2.0 x 1.1" (6.5 x 5.2 x 2.7 cm) | | Weight | 8.8 oz (249.5 g) | | | | Box Dimensions (LxWxH) | 14.0 x 14.0 x 7.0" | - Mini-XT-TXS VGA Extender w/ Audio Transmitter over CAT5e/6
| Connectors | 1 x RJ45, port
1 x VGA, video input
1 x 3.5 mm jack, audio input
1 x Mini-USB, port
1 x DC power jack, power input | | Bandwidth | 150 MHz -3 dB @ 1500 V | | Video Input Level | ±0.75 Vrms | | Maximum Resolution / Distance | 1920 x 1200 - 250' (76.2 m)
1600 x 1200 - 325' (99.1 m)
1440 x 900 - 500' (152.4 m)
1280 x 1024 - 650' (198.1 m)
1024 x 768 - 820' (249.9 m)
800 x 600 - 1,000' (304.8 m) | | Audio Sampling Rate | 32 kHz, 24-bits @ 256 f/s | | Audio Input Impedance | 10 kOhms | | Audio Input Level | 2 Vrms, line level | | Temperature | Operating: 32 to 122°F (0 to 50°C)
Storage: -4 to 140°F (-20 to 60°C) | | Humidity | 0 - 80% | | Power Consumption | 100 mA | | Power Source | 5 VDC 2A, mini-USB | | Dimensions | 2.6 x 2.0 x 1.1" (6.5 x 5.2 x 2.7 cm) | | Weight | 8.8 oz (249.5 g) | | | | Box Dimensions (LxWxH) | 14.0 x 14.0 x 7.0" |
