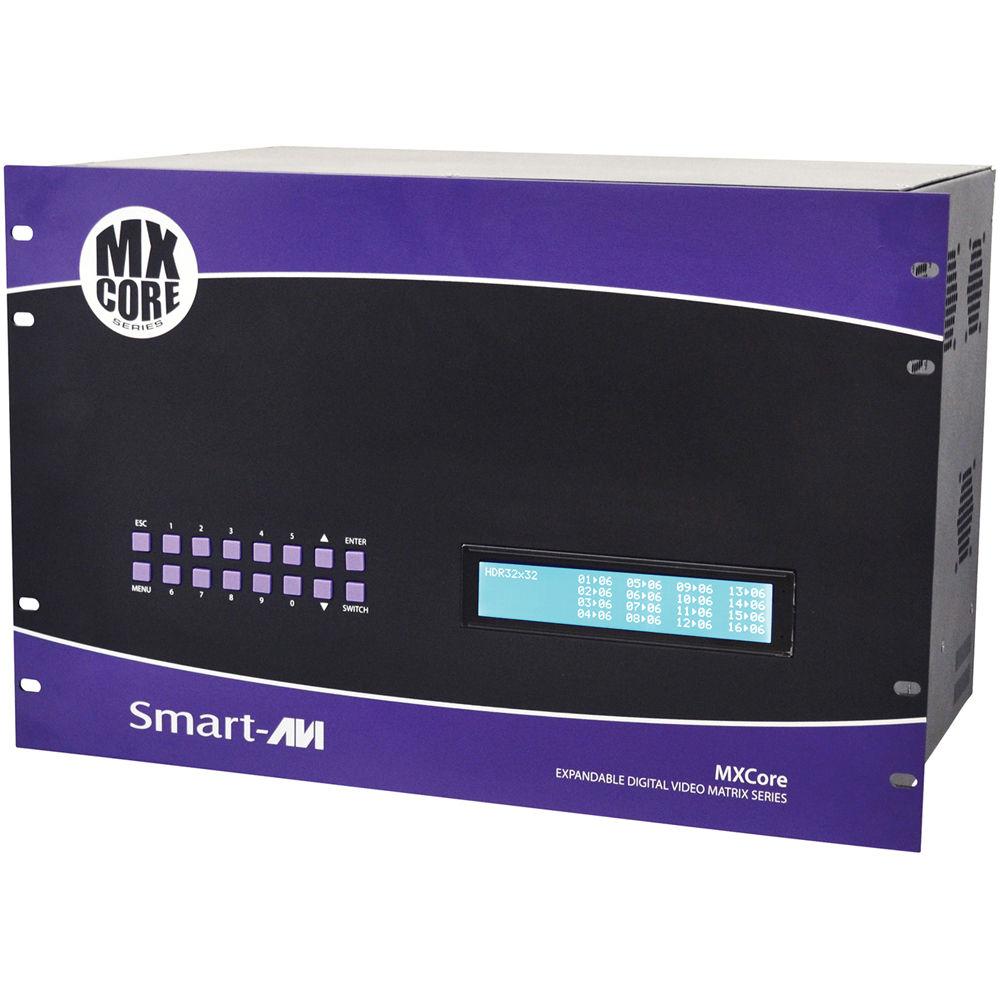

Product description The MXC-HD08X32S 8 x 32 HDMI Matrix Switcher is part of the MXCORE-HD line of modular switchers from Smart AVI. It allows you to route up to 8 HDMI sources to any of 32 HDMI outputs. Each input can be assigned to a dedicated output or a single input can be mapped to multiple outputs. The switcher supports resolutions up to 1920 x 1200 and can pass DVI and HDMI 1.3b compliant signals as well as embedded audio. The inputs are equalized to help restore weak signals resulting from an extended cable runs.
The MXC-HD08X32S supports Smart AVI's SmartControl GUI software application. Through this applications you can adjust the switcher's settings using a Windows computer. This saves you the trouble of having to code your own RS-232 control software. Alternatively, an integrated web server combined with the Net-IP-Pro feature allows multiple users to operate the switcher from anywhere in the world using a web browser. The web server also supports Telnet for integration with third-party or custom control solutions.

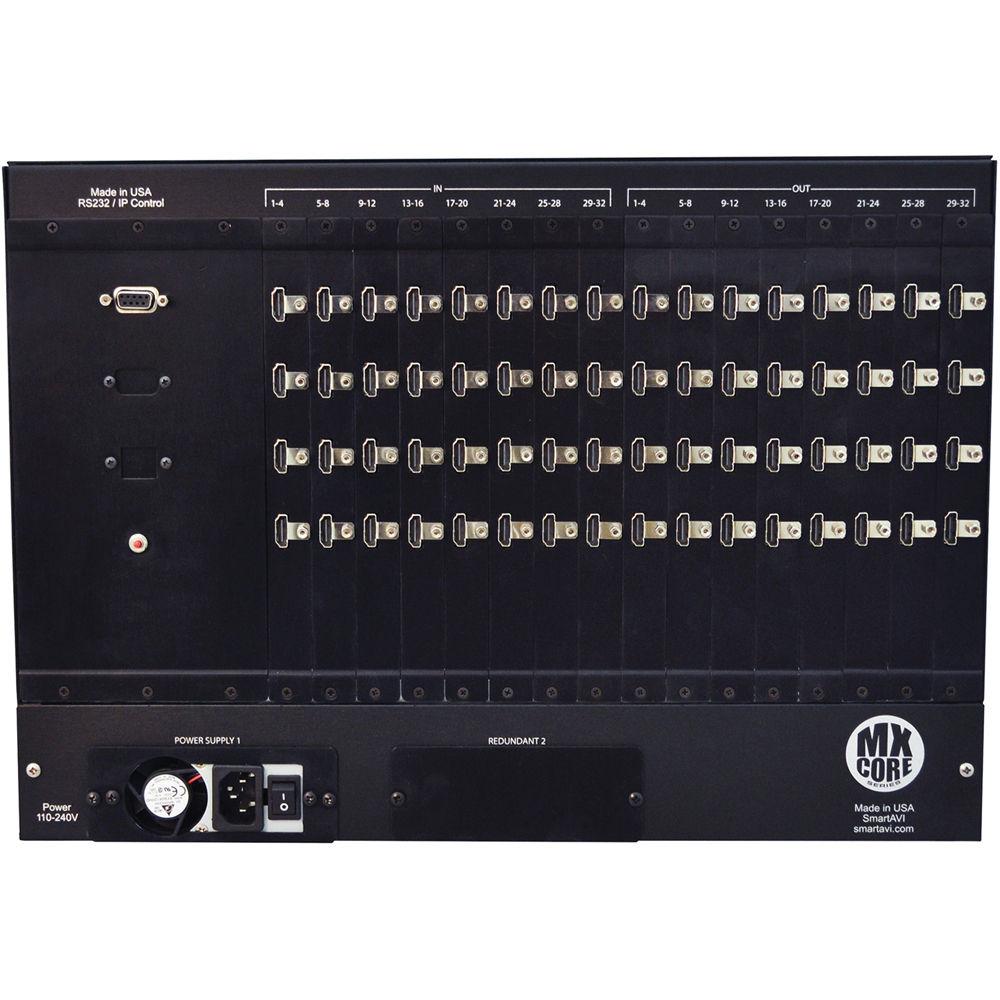

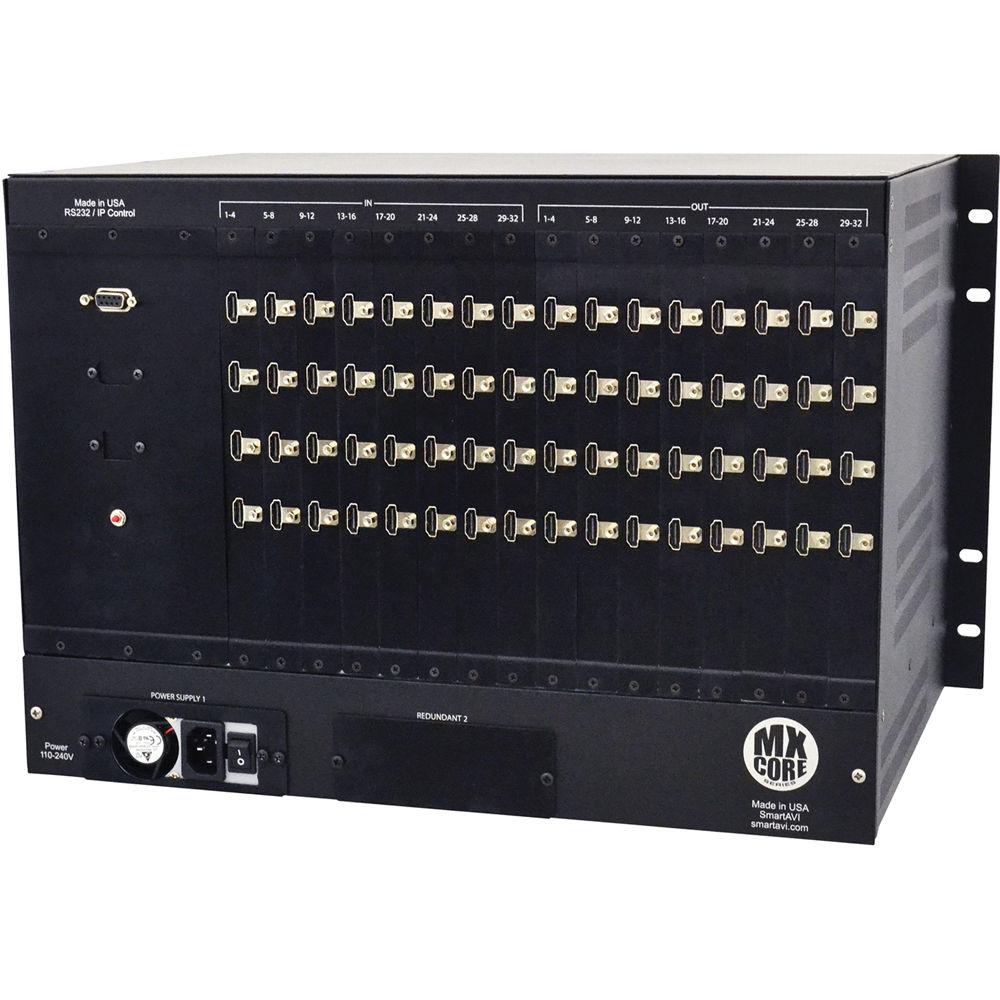

The unit is designed for rackmount installation. A single power supply comes integrated and a second, redundant power supply can be added if required. - Applications for matrix switchers include: wall displays, digital signage, airports, dealer rooms, control rooms, Audio/visual presentations, shopping centers, security, point-of-sale, hotels and resorts, KVM switching, and more
- Switches any HDMI source input to any output
- Sources can be routed independently to any display
- Supports video resolutions of 480p, 720p, 1080i and 1080p
- Supports computer resolutions of VGA, SVGA, SXGA, UXGA and WUXGA (1920 x 1200)
- Supports HDMI Deep Color with up to 12 bits per color
- Compatible with HDMI version 1.4 and single-link DVI
- Supports 7.1-channel digital surround sound audio
- Supports EDID for total control of compliant displays
- Transmits uncompressed digital video with zero signal loss
- Switching controlled via RS-232, IR remote, SmartControl GUI, or web server (Telnet supported)
- Front panel 4 x 40 LCD display
- Firmware upgradeable for future support
In the Box Smart-AVI MXC-HD08X32S 8 x 32 HDMI Matrix Switcher Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI MXC-HD08X32S 8 x 32 HDMI Matrix Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSmart-AVI MXC-HD08X32S Specs | | | Video Bandwidth | 340 MHz, 10.2 Gbp/s | | Input Video Signal | Video (TMDS) 0.5 to 1.0 Vpp | | Input DDC Signal | 5 V | | Supported Resolutions | HDMI: 480, 720p, 1080i, 1080p
DVI: Up to 1920 x 1200 at 60 Hz | | Supported Standards | HDMI - DVI-D single-link 1.1 and HDPC 1.0 and 1.1 compliant
Sampling: 4:2:2 and 4:4:4
Word Length: RGB / YCBCR: 24, 30, or 36-bit; YCBCR: 8, 10, 12, 16, 20, or 24-bit | | | | Audio Supported | DTS-HD Master Audio, Dolby True-HD, and Dolby Digital Plus - embedded in HDMI signal | | | | Input | 8 x HDMI | | Output | 32 x HDMI | | | | Input Card Slots | Supports up to 8 cards - 2 used | | Output Card Slots | Supports up to 8 cards - 8 used | | Control | IR Remote: 38 kHz RC5
Front Panel: 2 x 8 keyboard with 4 x 40 LCD
RS-232: 9600 bp/s on DB9 female connector
TC/IP: Web Server, Telnet | | Power Consumption | 300 W | | Power Requirements | 100 to 230 VAC at 50 or 60 Hz | | Operating Temperature | 32 to 131°F / 0 to 55°C | | Humidity | 10 to 90% | | Dimensions | 17.1 x 12 x 12" / 435 x 305 x 305 mm | | Weight | 20 lb / 9.1 kg |
