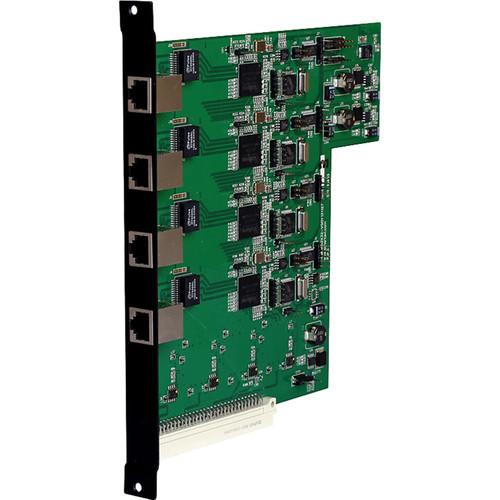

User Manual for Smart-AVI MXC-UD-4O 4-Port HDBaseT Cat 5e 6 Output Card for MXCore-UD Matrix Click to enlarge the picture
Contents of the user manual for the Smart-AVI MXC-UD-4O 4-Port HDBaseT Cat 5e
- Product category: Router, Switcher & Patchbay Accessories Smart-AVI
- Brand: Smart-AVI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Smart-AVI Router, Switcher & Patchbay Accessories
|
User manual for the Smart-AVI MXC-UD-4O 4-Port HDBaseT Cat 5e contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Smart-AVI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Smart-AVI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Smart-AVI product will considerably shorten its lifespan!
|
Product description The MXC-UD-4O 4-Port HDBaseT Cat 5e/6 Output Card from Smart-AVI is an output card with four RJ-45 ports to provide DVI-D signal extension from the MXCore Series of DVI-D matrix switchers. Using HDBaseT technology, users can route DVI-D signals up to 400' away from the matrix. The MXC-UH-4O offers zero signal loss while delivering HDMI and DVI-D signal flexibility. - Four RJ-45 ports for DVI-D signal extension
- HDBaseT technology enables you to route DVI-D signals up to 400' away from the matrix
In the Box Smart-AVI MXC-UD-4O 4-Port HDBaseT Cat 5e/6 Output Card for MXCore-UD Matrix Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI MXC-UD-4O 4-Port HDBaseT Cat 5e 6 Output Card for MXCore-UD Matrix in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSmart-AVI MXC-UD4PO Specs | Compatibility | MXCore-UD DVI-D Matrix | | Format | DVI-D | | Resolution | Up to 1920 x 1200 | | Signal Type | 38 kHz | | Output Connectors | 4 x RJ45, HDBaseT Cat 5e/6 | | Cable Requirements | Cat 5/5e/6 | | Output Cable Length | Up to 400' (122 m) | | Temperature | Operating: 32 - 131°F (0 - 55°C)
Storage: -4 - 185°F (-20 - 85 °C) | | Humidity | Up to 95% | | Compliance | UL, CE, RoHS | | Dimensions | 10 x 4 x 2" (25.4 x 10.2 x 5.1 cm) | | Weight | 1 lb (454 g) |
