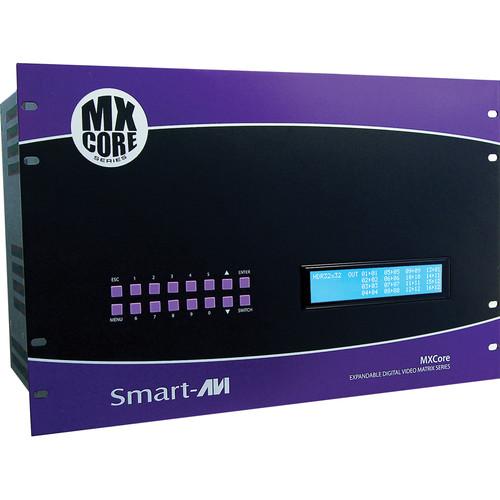

User Manual for Smart-AVI MXCore-DX 12 x 16 DVI-D Matrix Switcher Click to enlarge the picture
Contents of the user manual for the Smart-AVI MXCore-DX 12 x 16 DVI-D
- Product category: Routers & Switchers Smart-AVI
- Brand: Smart-AVI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Smart-AVI Routers & Switchers
|
User manual for the Smart-AVI MXCore-DX 12 x 16 DVI-D contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Smart-AVI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Smart-AVI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Smart-AVI product will considerably shorten its lifespan!
|
Product description The MXCore-DX 12 x 16 DVI-D Matrix Switcher from Smart-AVI allows you to distribute and route 12 DVI-D input sources across 16 DVI-D display devices. The switcher supports transmission of 1080p, 2K, and 1920 x 1200 resolutions with no loss of picture clarity and no ghosting of images. The DVI-D cable is automatically equalized for compensation in long distance transmissions up to 40'. The Matrix supports DVI-D operation at the maximum TDMS rate of 2 x 1.65 Gb/s.The switcher allows you to locally switch between sources via the easy-to-operate front panel, or remotely through RS-232, IR, or TCP/IP connection. It can also be controlled via an included Windows-based manager software that allows users to assign a unique name to each port on the Matrix along with a display for specific project requirements.Each input incorporates the SmartEDID programmable technology that is capable of learning video resolutions, audio settings, and 3D data. The EDID memory of each display is stored in a single flash memory, giving users freedom to choose any EDID and emulation of any display. Note: Can be expanded to support up to 32 inputs and 32 outputs
Additional I/O cards sold separately - Switcher
-
- Multiple EDID support
- Programmable EDID from computer
- Automatic EDID learning from monitor
- 12 x 16 non-blocking, single-link DVI-D matrix switch
- Automatic output pre-emphasis and drive level
- Automatic receiver equalization
- Supports DVI-D operation at the maximum rate of 2 x 1.65 Gb/s
- Supports resolutions up to 1080p, 2K and 1920 x 1200
- Easy protocol for integration with the most common control systems such as AMX, Creston, and more
- Supports protocols with error-detecting code for secure switching
- For use in wall displays, digital signage, airports, dealer rooms, control rooms, audio/visual presentations, shopping centers, security, point-of-sale, hotels/resorts, and KVM switches
- Flexible Control
-
- Easily accessible LCD front panel and keypad that allows users to determine which inputs are connected to which outputs
- Front panel features a LCD screen for displaying detailed information about the status of the switch at any given moment
- RS232 signaling allows control via the Windows-based SmartControl software that allows customization of all the switchers’ functions
- Users can assign a unique name to each port on the matrix along with a display for specific project requirements
- Software enables configuration of the size and type of the matrix, including a preset defined at macro
- Supports Infrared command signals for control
- Supports TCP/IP connection for real-time remote control management with the Net-IP-Pro control module (not included)
- EDID Emulation
-
- Built-in SmartEDID programmable technology for learning video resolutions, audio settings, and 3D data
- EDID memory of each display is stored in a single flash memory
- Enables DVI-D sources to continuously read the EDID of a monitor with full emulation at any given time
- EDID management allows learning and saving of up to 100 displays, including audio
In the Box Smart-AVI MXCore-DX 12 x 16 DVI-D Matrix Switcher SM-CSW SmartControl Software CCPWR06 6' Power Plug Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI MXCore-DX 12 x 16 DVI-D Matrix Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSmart-AVI MXC-DX12X16S Specs | | | Video Amplifier Bandwidth | 3.2 GHz | | Input Video Signal | Video (TMDS) 0.5 to 1 Vpp | | Input DDC Signal | 5 V | | Signal Supports | DVI-D Standard, DVI-D and HDCP compliant | | Pixels | Clock frequency beyond 165 MP/sec | | Format | 4:4:4 and 4:2:2 data input formats | | Resolution | Up to 1080p, 2K, and 1920 x 1200 | | Input | Slots: 3 cards of 4 x DVI-D inputs each | | Output | Slots: 4 cards of 4 x DVI-D inputs each | | Supported Video Types | RGB/YCBCR : 24/30/36 bits
YCBCR: 8/10/12/16/20/24 bits | | | | IR | 38 kHz RC5 | | Front Panel | 2 x 8 keyboard with 4 x 40 LCD | | RS232 | 9600 bps, software flow DB9 female | | TCP/IP | Webserver, Telnet | | | | Power Supply | 100 to 230 VAC, 50/60 Hz, 6.0' (1.8 m) power plug cable included | | Power Consumption | 300 W | | Working Temperature | 32 to 131°F (0 to 55°C) | | Humidity | 10 to 90% | | Dimensions | 17.1 x 12.0 x 12.0" (43.2 x 30.5 x 30.5 cm) | | Weight | 20.0 (9.1 kg) |
