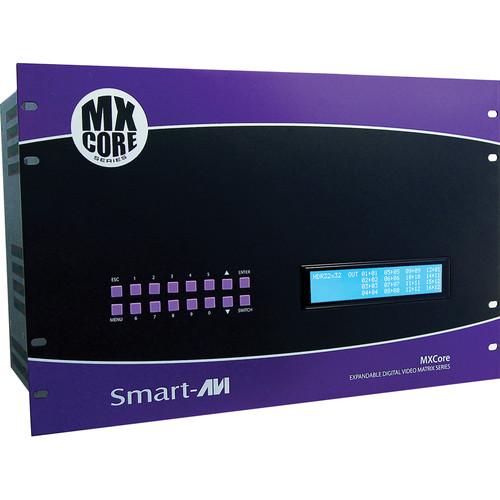

User Manual for Smart-AVI MXCore-UD 32 x 16 Expandable DVI-D Matrix Switcher over CAT5e 6 Click to enlarge the picture
Contents of the user manual for the Smart-AVI MXCore-UD 32 x 16 Expandable
- Product category: Routers & Switchers Smart-AVI
- Brand: Smart-AVI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Smart-AVI Routers & Switchers
|
User manual for the Smart-AVI MXCore-UD 32 x 16 Expandable contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Smart-AVI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Smart-AVI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Smart-AVI product will considerably shorten its lifespan!
|
Product description The MXCore-UD 32 x 16 Expandable DVI-D Matrix Switcher from Smart-AVI allows you to distribute and route HD signals from 32 DVI-D across 16 display devices over CAT5e/6 cables. It utilizes HDBaseT technology that enables routing of video signals up to 1080p and 1920 x 1200 resolutions, Ethernet, IR, and power up to 425'. This gives users the option of remotely switching the source as well as controlling input sources, all from one device. The switcher can be expanded with additional output cards to support up to 32 DVI-D outputs.
The MXCore-UD gives you the ability to switch locally between sources via the easily accessible LCD front panel and buttons, or switch remotely through a RS-232, IR, or TCP/IP connection. The switcher can be controlled by SmartAVI's Windows-based SmartControl software, or from anywhere in the world using the Net-IP-Pro web browser application. A 6' power plug comes included.
Note: An optional HDX-MX HDBaseT Receiver unit is required at each output destination. Additional I/O cards sold separately. - Switcher
-
- Switches any DVI-D source input to any output
- Up to 32x32 matrix configuration with additional output cards
- Sources can be routed independently to any display
- Supports high definition video resolutions of 480p, 720p, 1080i, and 1080p
- Supports PC resolutions VGA, SVGA, SXGA,UXGA, and WUXGA (1920 x 1200)
- Supports EDID for total control of compliant displays
- Delivers uncompressed digital video with zero signal loss
- Input cable equalization
- Switching controlled via RS-232, IR, Smart Control GUI, or web server
- Front panel 4 x 40 LCD display
- Easy switching via front panel
- Windows-based GUI application
- Web-based interface
- Telnet support
- Firmware upgradeable for future support
- Extends DVI-D, IR output over single CAT5/5e/6 UTP cable
- Extends IR and signals for remote control
- Supports data signals up to 3.4 Gbps
- Support RC5 IR for local switching
- Support IR bypass for 36 to 60 kHz
- Flexible Control
-
- Easily accessible LCD front panel and keypad that allows users to determine which inputs are connected to which outputs
- Front panel features a LCD screen for displaying detailed information about the status of the switch at any given moment
- RS232 signaling allows control via the Windows-based SmartControl software that allows customization of all the switchers’ functions
- Users can assign a unique name to each port on the matrix along with a display for specific project requirements
- Software enables configuration of the size and type of the matrix, including a preset defined at macro
- Supports Infrared command signals for control
- Supports Philips RC5 IR transmission protocols
- Supports TCP/IP connection for real-time remote control management with the Net-IP-Pro control module (not included)
- Easy protocol for integration with the most common control systems such as AMX, Creston, and more
- Supports protocols with error-detecting code for secure switching
- EDID Emulation
-
- Built-in SmartEDID programmable technology for learning video resolutions, audio settings, and 3D data
- EDID memory of each display is stored in a single flash memory
- Enables DVI-D sources to continuously read the EDID of a monitor with full emulation at any given time
- EDID management allows learning and saving of up to 100 displays, including audio
- Example Applications
-
- Wall displays
- Digital signage
- Airports
- Dealer rooms
- Control rooms
- Audio/Visual presentations
- Shopping Centers
- Security
- Point-of-Sale
- Hotels/Resorts
- KVM switch
In the Box Smart-AVI MXCore-UD 32 x 16 Expandable DVI-D Matrix Switcher over CAT5e/6 SM-CSW SmartControl Software CCPWR06 6' Power Plug Cable wfataffffzwwvxfvwxrcbx Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI MXCore-UD 32 x 16 Expandable DVI-D Matrix Switcher over CAT5e 6 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSmart-AVI MXC-UD32X16S Specs | | | Video Amplifier Bandwidth | 3.2 GHz | | Input Video Signal | Video (TMDS) 0.5 to 1 Vpp | | Input DDC Signal | 5 V | | Signal Supports | DVI-D Standard, DVI-D and HDCP compliant | | Pixels | Clock frequency beyond 165 MP/sec | | Format | 4:4:4 and 4:2:2 | | Resolution | 480p
720p
1080i
1080p
1920x1200 | | Card Slots | 8 x Input
8 x Output | | Inputs | 32 x DVI-D (8 cards of 4 x DVI-D inputs each) | | Outputs | 16 x HDBaseT (4 cards of 4 x HDBaseT outputs each) | | Supported Video Types | RGB/YCBCR : 24/30/36 bits
YCBCR: 8/10/12/16/20/24 bits | | Transmission Distance | Up to 425' (129.5 m) | | | | IR | 38 kHz RC5 | | Front Panel | 2 x 8 keyboard with 4 x 40 LCD | | RS232 | 9600 bps, software flow DB9 female | | TCP/IP | Webserver, Telnet | | | | Power Supply | 100 to 230 VAC, 50/60 Hz | | Power Consumption | 300 W | | Working Temperature | 32 to 131°F (0 to 55°C) | | Humidity | 10 to 90% | | Dimensions | 17.1 x 12.0 x 12.0" (43.2 x 30.5 x 30.5 cm) | | Weight | 20.0 lb (9.1 kg) |
