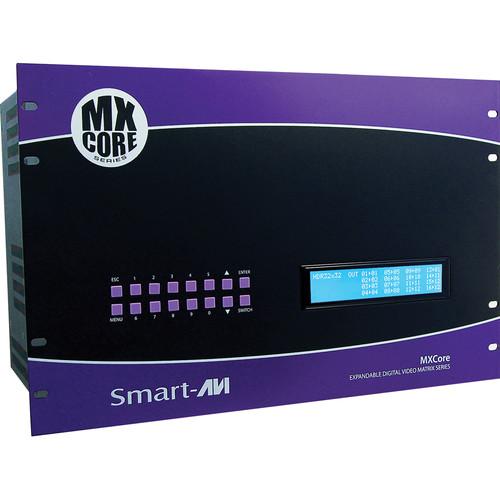

User Manual for Smart-AVI MXCore-UH Expandable HDMI Video Router over Cat5e 6 Matrix Click to enlarge the picture
Contents of the user manual for the Smart-AVI MXCore-UH Expandable HDMI Video Router
- Product category: Routers & Switchers Smart-AVI
- Brand: Smart-AVI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Smart-AVI Routers & Switchers
|
User manual for the Smart-AVI MXCore-UH Expandable HDMI Video Router contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Smart-AVI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Smart-AVI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Smart-AVI product will considerably shorten its lifespan!
|
Product description The 32x16 MXCore-UH Expandable HDMI Video Router over Cat5e/6 Matrix from Smart-AVI is an HDMI video router that features HDBaseT technology, which enables you to route 1080p HD video, multi-channel audio, Ethernet, IR, and power signals up to 425' away over a single CAT 5e/6 cable. This unit includes 8 input cards, and 4 output cards. Each card features 4 inputs/outputs respectively for a total matrix of 32 HDMI inputs to 16 RJ45 outputs. In order to convert the signals back to HDMI, an HDX-MX receiver is required (not included).
You can locally switch between sources via the front panel controls, or remotely via the RS-232, IR, or TCP/IP connections. The MXCore-UH can be controlled by Smart-AVI's Windows-based manager software. The front-panel LCD display and keypad allow you to determine which inputs are routed to which outputs. The RS-232 allows you to assign a unique name to each port on the Matrix along with a display for specific project requirements. The IR control interface allows you greater flexibility when managing the MXCore-UH from a distance. This can be used when the displays are not visible from the Matrix, which would require control via Infrared command signals.
The MXCore-UH features 32 inputs, each incorporating the SmartEDID programmable technology capable of learning video resolutions, audio settings and 3D data. The EDID memory of each display is stored in a single flash memory, designed to give you freedom to choose any EDID and emulation of any display. The MXCore-UH enables HDMI sources to continuously read the EDID of a monitor with full emulation at any given time. The EDID management allows learning and saving of up to 100 displays, including audio. The MXCore-UH can learn EDID from any display device provided.
SmartConrol is the Windows GUI application that enables users to control SmartAVI Matrix using graphic user interface without having to write the codes and send serial commands to the devices. The software allows configuration of the size and type of the Matrix, including a preset defined at macro. The software also enables identification by name for each source and display. The Net-IP-Pro gives the user full control of the Matrix from anywhere in the world through this web browser software. The Net-IP-Pro enables multiple users to control and configure the Matrix, including names of sources, names of displays, IP addresses and low level features of the Matrix. This Google based software enables the support of telnet for easy integration with other control systems. - Switches any HDMI source input to any RJ45 output
- Sources can be routed independently to any display
- Supports high definition video resolutions of 480p, 720p, 1080i, and 1080p
- Supports digital formats in Deep Color to 12-bit per color
- Supports EDID for total control of compliant displays
- Delivers uncompressed digital video with zero signal loss
- Switching controlled via RS-232, IR, Smart Control GUI or webserver
- Front panel 4x40 LCD display
- Easy switching via front panel
- Browser Graphical User Interface (GUI)
- Firmware upgradeable for future support
- Extends HDMI, IR output over single Cat5/5e/6UTP cable
- Extends IR and signals for remote control
- Data signals up to 3.4 Gb/s
- Support RC5 IR for local switching
- Support IR bypass for 36 to 60 kHz
In the Box Smart-AVI MXCore-UH Expandable HDMI Video Router over Cat5e/6 Matrix (32x16) CCPWR06 6' Power Plug Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI MXCore-UH Expandable HDMI Video Router over Cat5e 6 Matrix in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSmart-AVI MXC-UH32X16S Specs | | | Format | HDMI 1.3 and HDCP compliant | | Resolutions | HDTV: 480p, 720p, 1080i, 1080p/60 Hz/48-bit
TV: 480i | | IR Signal | 38 kHz | | Connectors | Front Panel:
1 x 3.5 mm phone jack, IR interface Rear Panel:
1 x 19-pin type A TMDS female, DVI-D input
1 x 19-pin type A TMDS female, DVI-D output
1 x 9-pin Sub-D, RS-232
32 x HDMI input
16 x RJ45 output
1 x 3-pin IEC, power input | | Controls | 1 x Esc push-button
1 x Menu push-button
1 x Enter push-button
1 x Switch push-button
1 x Up push-button
1 x Down push-button
10 x Input select push-button
1 x 4x40 LCD display
Rear Panel:
1 x Power On/Off switch | | Approvals | UL, CE, ROHS compliant | | Operating Temperature | 32 to 131°F (0 to 55°C) | | Storage Temperature | -4 to 185°F (-20 to 85°C) | | Humidity | Up to 95% | | Power Supply | 100-240 VAC/5 VDC, 2 A @ 10 W | | Dimensions (W x H x D) | 5.0 x 1.1 x 4.1" (12.7 x 2.9 x 10.5 cm) | | Cable Length | Up to 40' (12.2 m) | | Weight | 20.0 lb (9.1 kg) | | | | Video Amplifier Bandwidth | 3.2 G | | Input Video Signal | 0.5 - 1.0 V pp (TMDS) | | Input DDC Signal | 5 V | | Supported Signals | HDMI and HDCP compliant | | Pixel Clock Frequency | >165 Mpix/sec | | Format | 4:4:4 and 4:2:2 data input formats | | Resolution | 480p, 720p, 1080i, and 1080p | | Input Card Slots | Each Card: 4 x HDMI | | Output Card Slots | Each Card: 4 x RJ45 (CAT5e/6) | | Supported Video Types | RGB/YCBCR: 24/30/36-bits
YCBCR: 8/10/12/16/20/24-bits | | IR | 38 kHz, RC5 | | RS-232 | 9600 b/s, software flow | | TCP/IP | Webserver, Telnet | | Operating Temperature | 32 to 131°F (0 to 55°C) | | Storage Humidity | 10 - 90% | | Power Supply | 100 - 230 VAC, 50/60 Hz | | Power Consumption | 300 W | | Dimensions (W x H x D) | 17.1 x 12.0 x 12.0" (43.5 x 30.5 x 30.5 cm) | | Weight | 0.6 lb (0.3 kg) |
