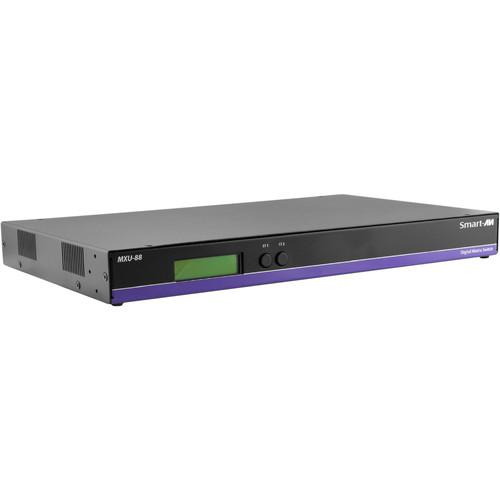

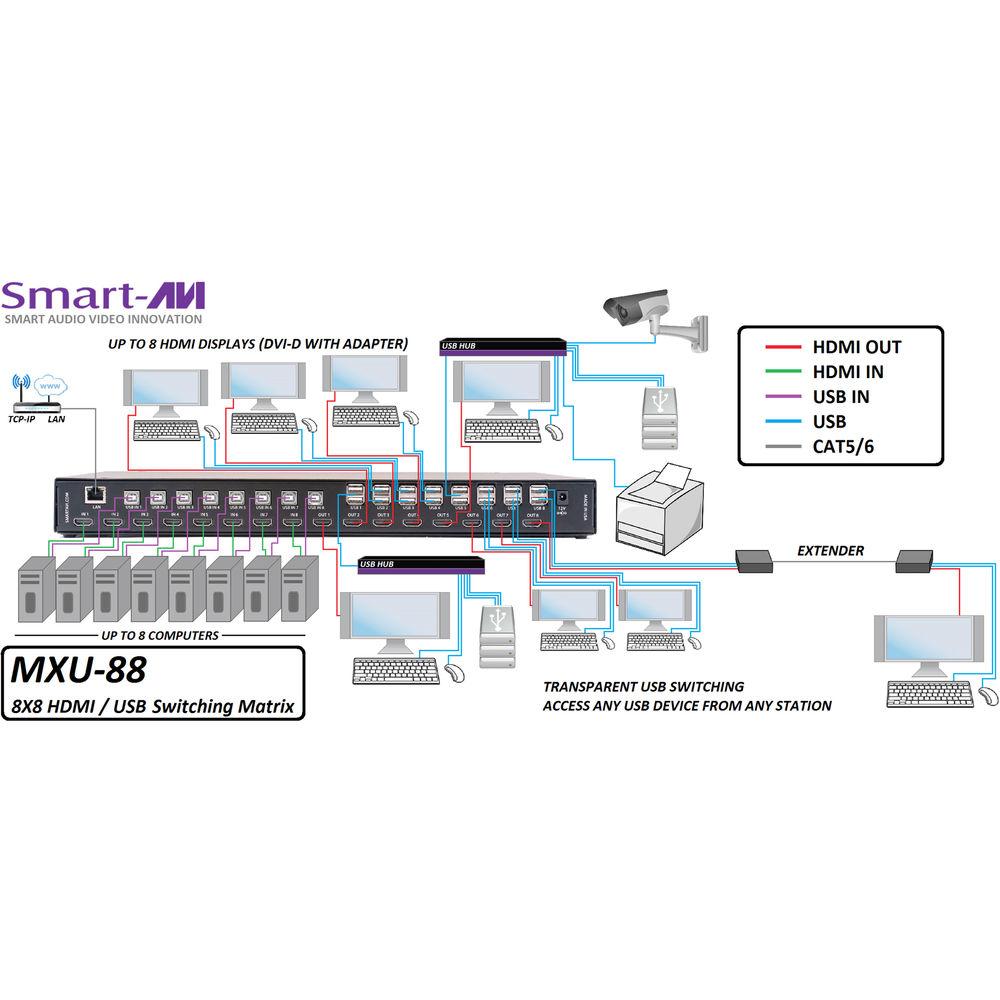

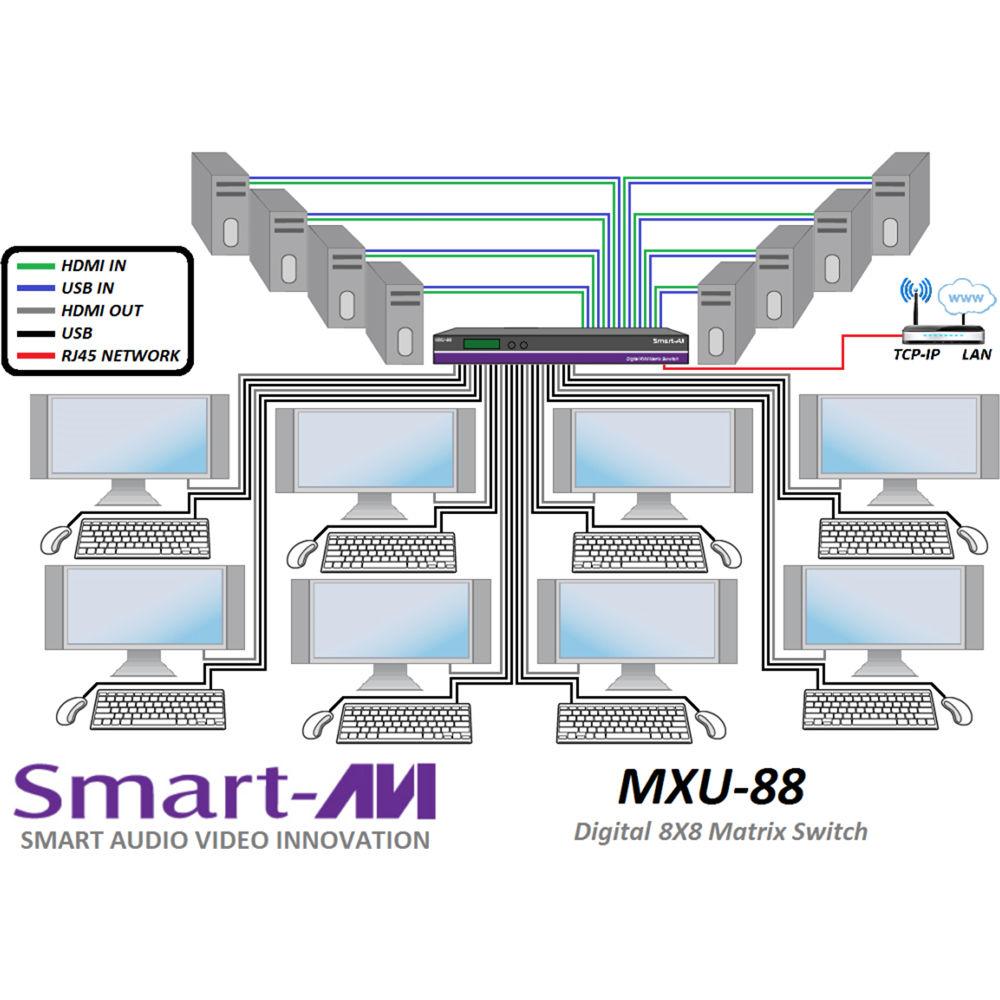

Product description Multi-Monitors: Maximizing Multitasking Read More The Smart-AVI MXU-88 8 x 8 HDMI/USB 2.0 Matrix Switch enables up to eight users to access your HDMI-enabled systems outfitted with different performance levels. The MXU-88 allows a person to switch between different systems that are designed for creating images, rendering 3D graphics, or editing videos. The switch comes with eight HDMI 1.4 and eight USB 2.0 Type-B ports to connect with your computers. For outputs, it has eight HDMI ports as well as eight sets of two USB 2.0 Type-A ports, allowing you to access these systems with a workstation set that includes an HDMI monitor, keyboard, and mouse. The sixteen USB 2.0 Type-A ports are also compatible with external hard drives, scanners, printers, and more, so you can share transparent USB 2.0 devices with the systems.
The switch supports resolutions of up to 3840 x 2160 and delivers audio via an HDMI signal. Aside from multimedia capabilities, switching between the systems can be accomplished via convenient buttons on the front panel. Moreover, an Ethernet port is on board to provide management over the web. - Eight HDMI inputs and eight HDMI outputs support resolutions of up to 3840 x 2160 @ 30 Hz
- Eight USB 2.0 Type-B inputs
- Eight dual USB 2.0 Type-A outputs
- Supports digital audio over HDMI
- Supports DVI-D with optional adapters
- USB 2.0 keyboard/mouse control compatible (no emulation)
- Supports transparent USB 2.0 peripheral devices such as external hard drive, smart-card readers, scanners, printers, and other devices

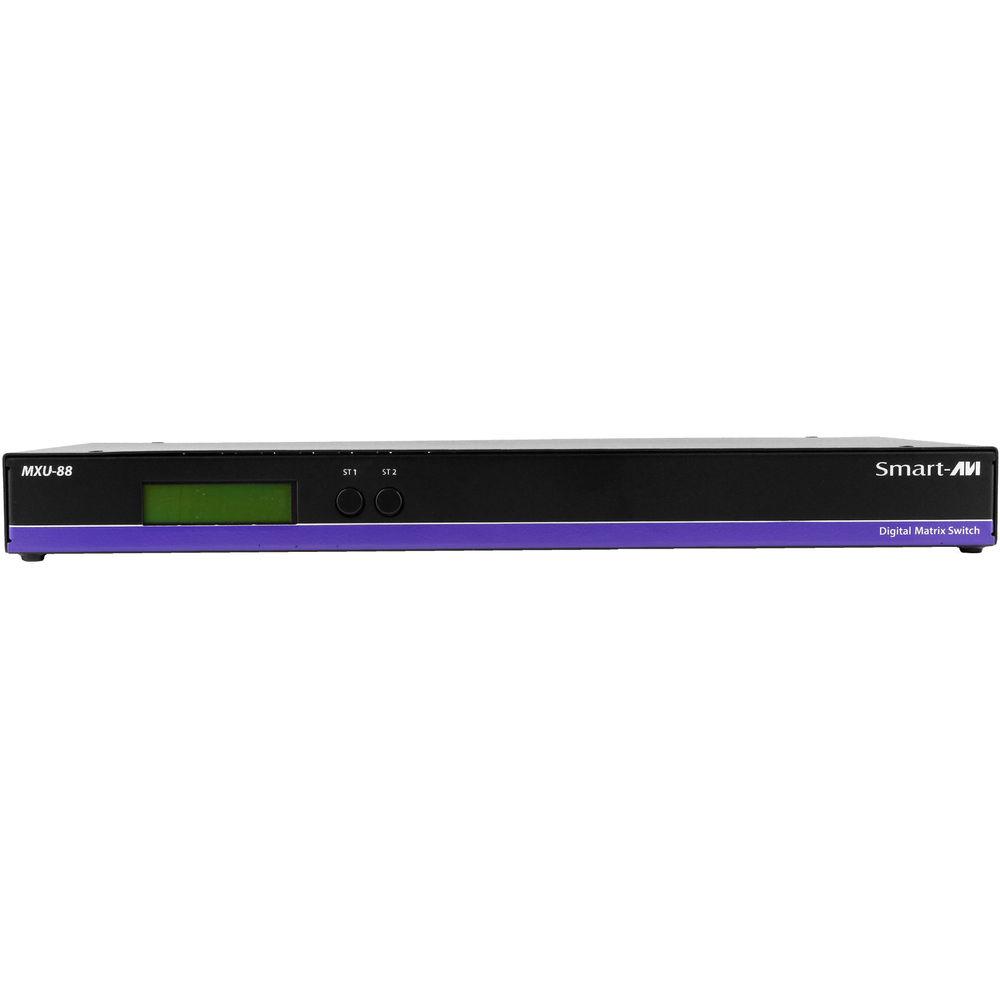

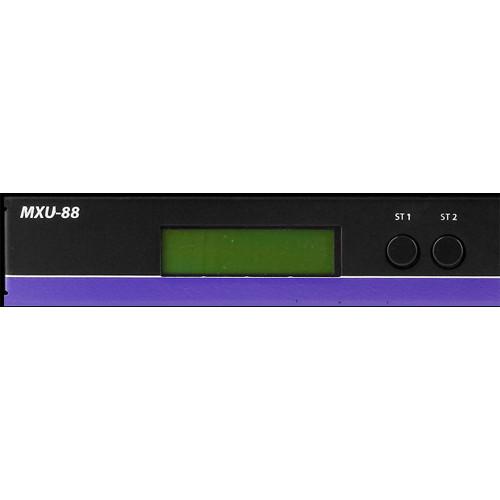

- Two-button front panel control with LCD status display

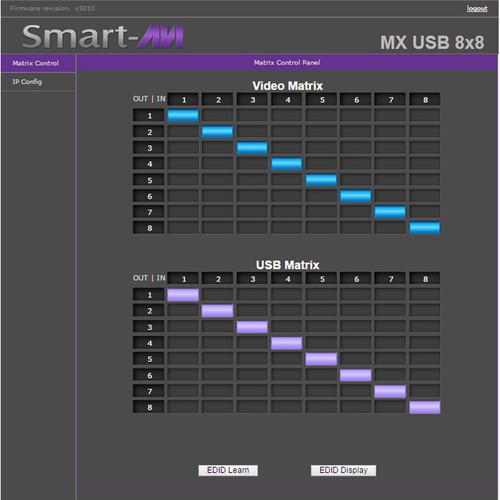

- Web-based control console over Ethernet
- Learns and stores EDID information
- HDMI 1.4 and HDCP compliant
- Control Sun, Mac, or Windows systems from one workstation
UPC: 813280024280 In the Box Smart-AVI MXU-88 8 x 8 HDMI/USB 2.0 Matrix Switch Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI MXU-88 8 x 8 HDMI USB 2.0 Matrix Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

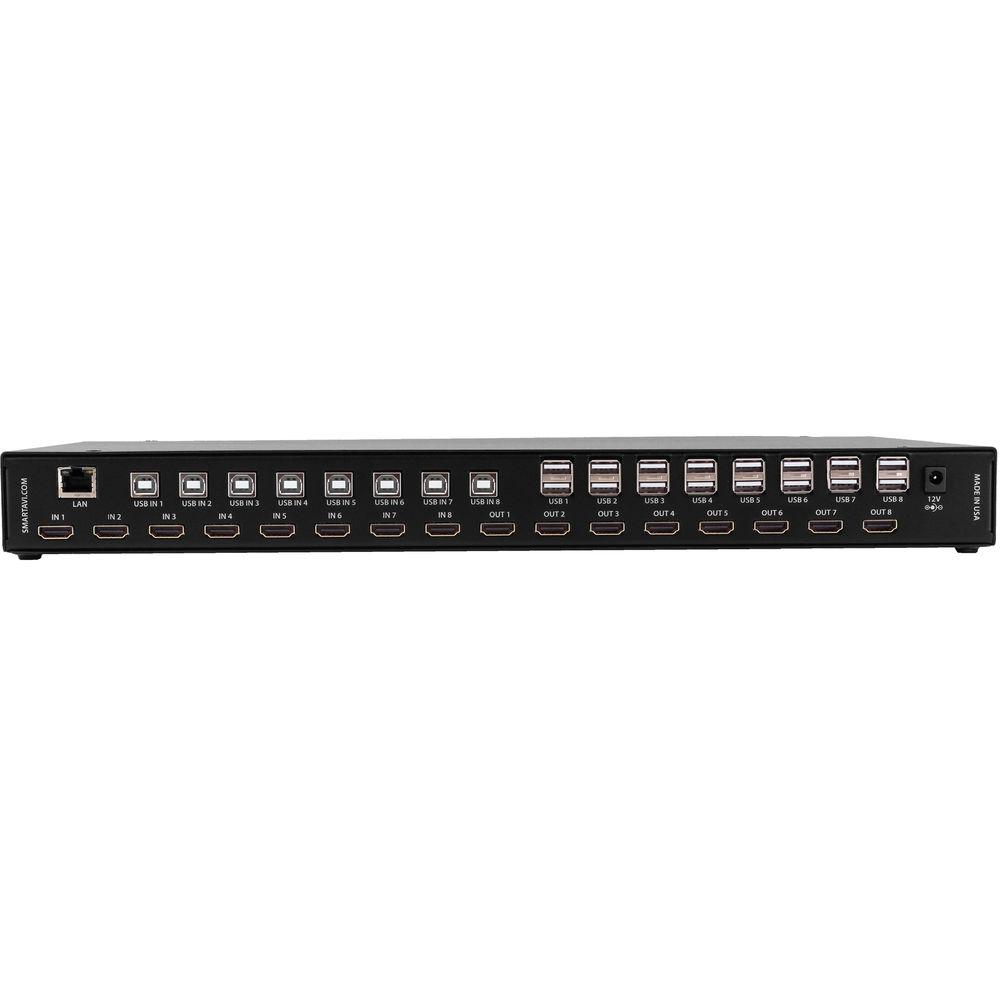

Technical parametersSmart-AVI MXU-88 Specs | Inputs | 8 x HDMI 1.4 Type-A (19-pin) female TMDS
8 x USB 2.0 Type-B female (no emulation) | | Outputs | 8 x HDMI 1.4 Type-A (19-pin) female TMDS
16 x USB 2.0 Type-A female | | Resolution | Up to 4K (3840 x 2160 @ 30 Hz) | | Video Bandwidth | 300 MHz | | Cable Lengths Supported | Up to 20' / 6.1 m | | Audio | Stereo embedded in HDMI signal | | Control | Front panel buttons
1 x RJ45 Ethernet (TCP/IP) port | | Voltage Input | 100 to 240 VAC | | Power Supply | 12 VDC, 2 A | | Power Consumption | 100 W maximum | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Storage Temperature | -4 to 149°F / -20 to 65°C | | Humidity | Up to 85% | | Dimensions (W x H x D) | 17.1 x 2 x 10.4" / 43.4 x 5.1 x 26.4 cm | | Weight | 8.8 lb / 4 kg | | | | Package Weight | 10.35 lb | | Box Dimensions (LxWxH) | 19.0 x 12.25 x 4.0" |
