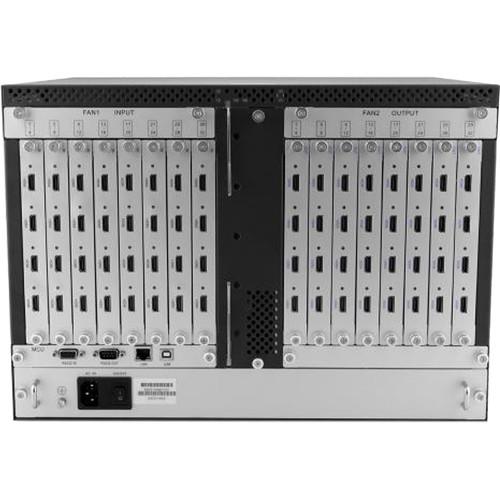

User Manual for Smart-AVI MXWall-Pro 32x32 HDMI Matrix Switcher with Integrated Video Wall Click to enlarge the picture
Contents of the user manual for the Smart-AVI MXWall-Pro 32x32 HDMI Matrix Switcher
- Product category: Routers & Switchers Smart-AVI
- Brand: Smart-AVI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Smart-AVI Routers & Switchers
 |
User manual for the Smart-AVI MXWall-Pro 32x32 HDMI Matrix Switcher contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Smart-AVI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Smart-AVI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Smart-AVI product will considerably shorten its lifespan!
|

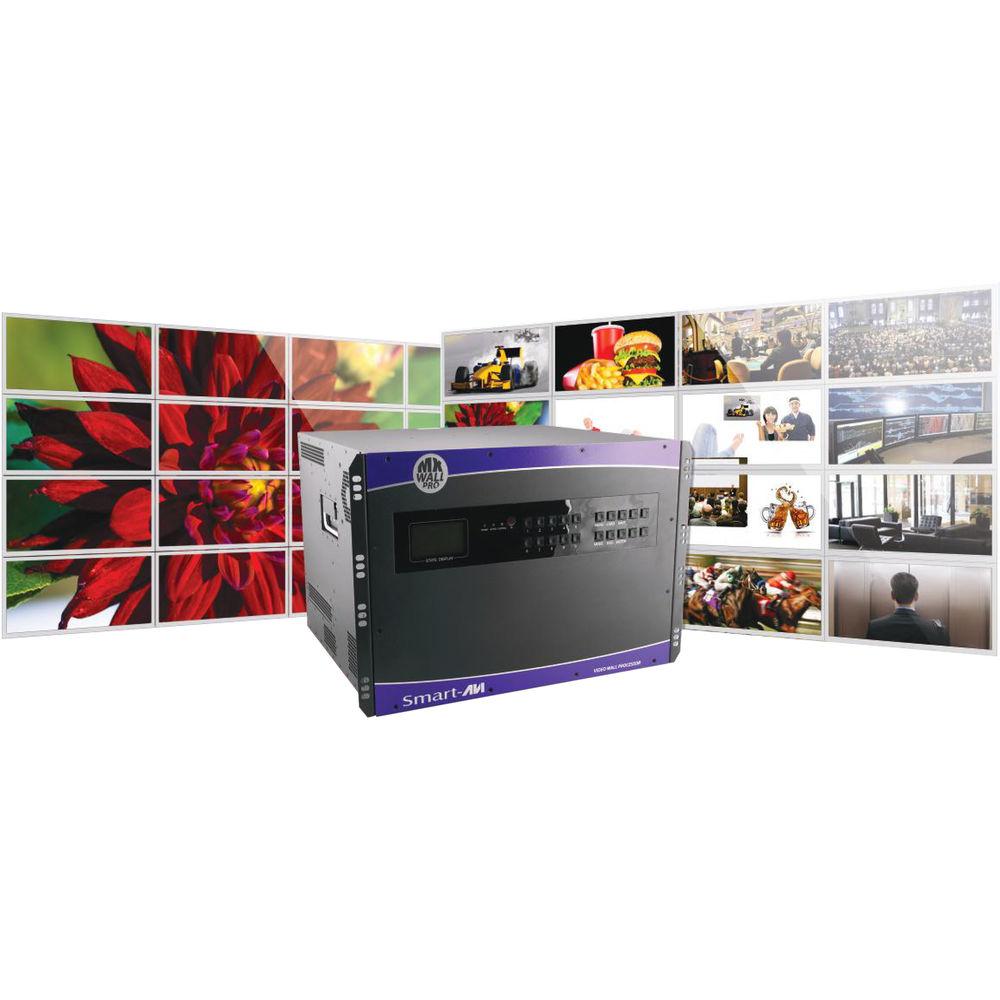

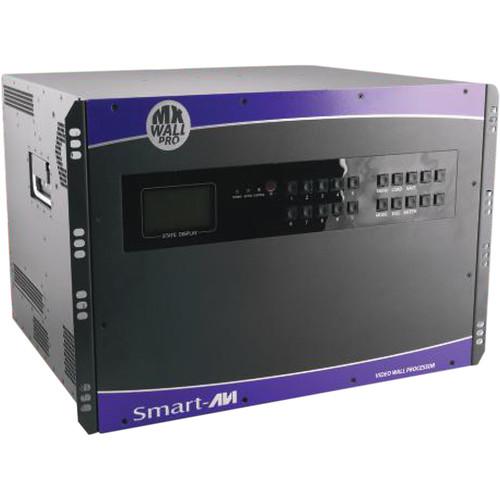

Product description The MXWall-Pro 32x32 HDMI Matrix Switcher with Integrated Video Wall from Smart-AVI is an all-in-one, hardware-based, real-time matrix routing and video wall solution with an integrated scaler. It supports up to 1080p input signals and automatically scales the signal to 1080p60 whether for matrix or video wall functionality.

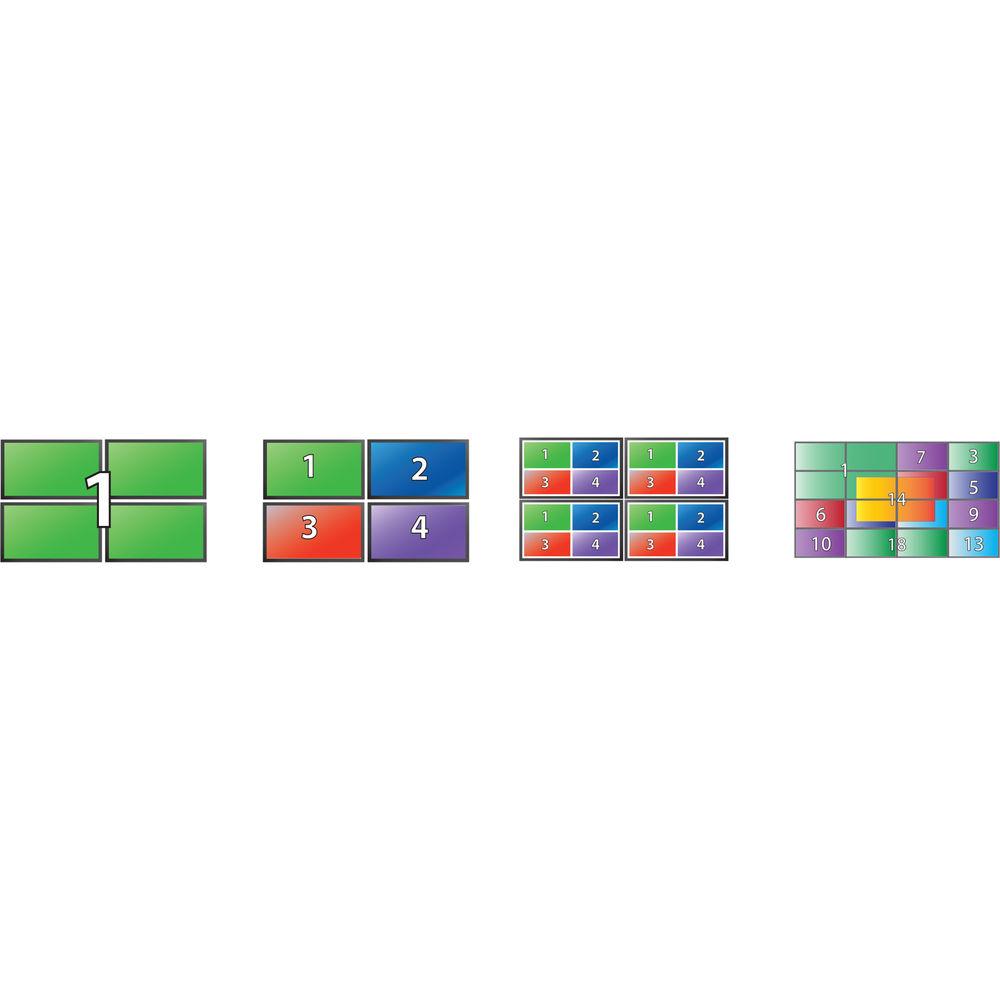

The MXWall-Pro 32x32 includes 8 input and 8 output cards, each featuring four HDMI 1.4 connectors. It allows you to route one input to any or all outputs at the same time in a matrix configuration. In a video wall setup, it lets you display from a single input to all inputs in various video wall layouts, including in a one-to-one arrangement. For example, you can display one input source on all your output screens as one image, or two input sources as two images split across your output screens, or each input on one output screen.
An included (free download), user-friendly Windows software allows you to easily assign your matrix or video wall setups, and the MXWall-Pro can then be left to operate up to 24/7 without interruption. The software also lets you upload your logo as well as make various adjustments to display settings such as aspect ratio. If you'd like to make further adjustments to your matrix or video wall arrangement, you can do so in the software or in a free Android app that can be used after the initial setup in the main software. Although software is used, the MXWall-Pro is a fully hardware-based device, so switching and output all happen in real time.

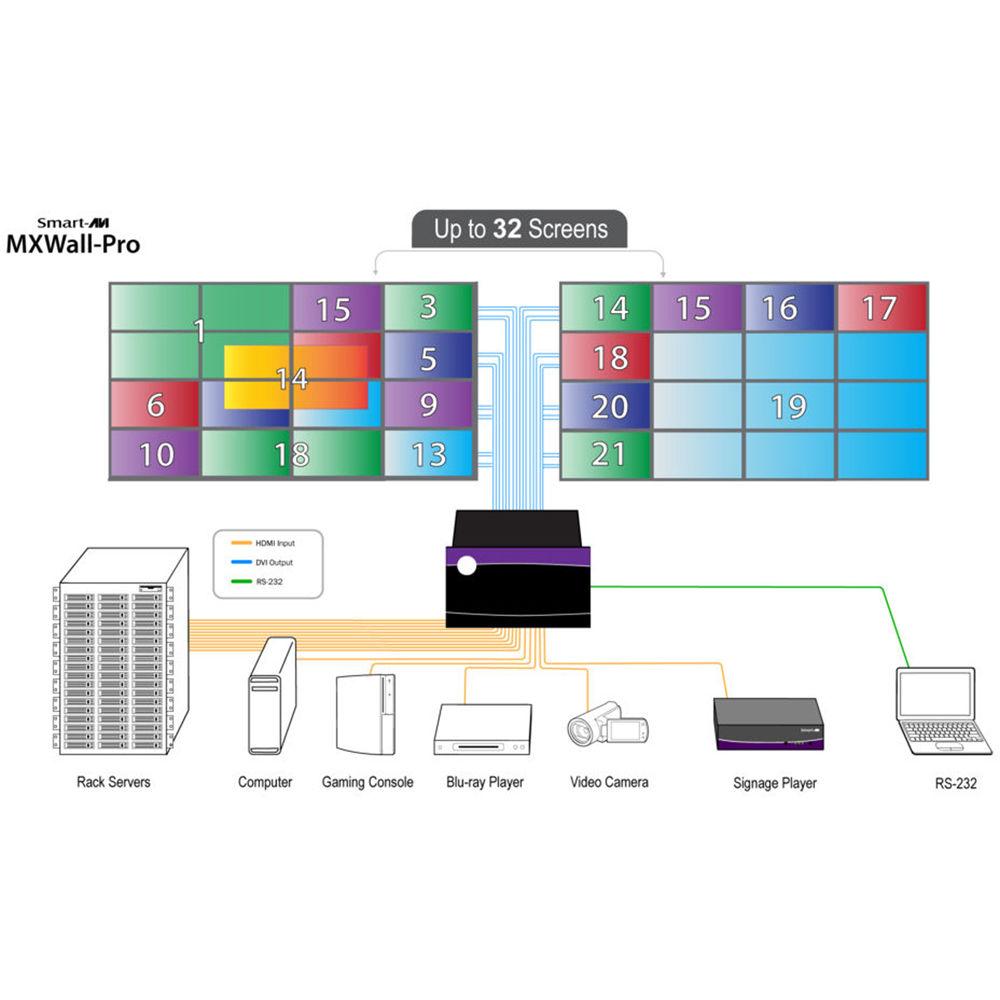

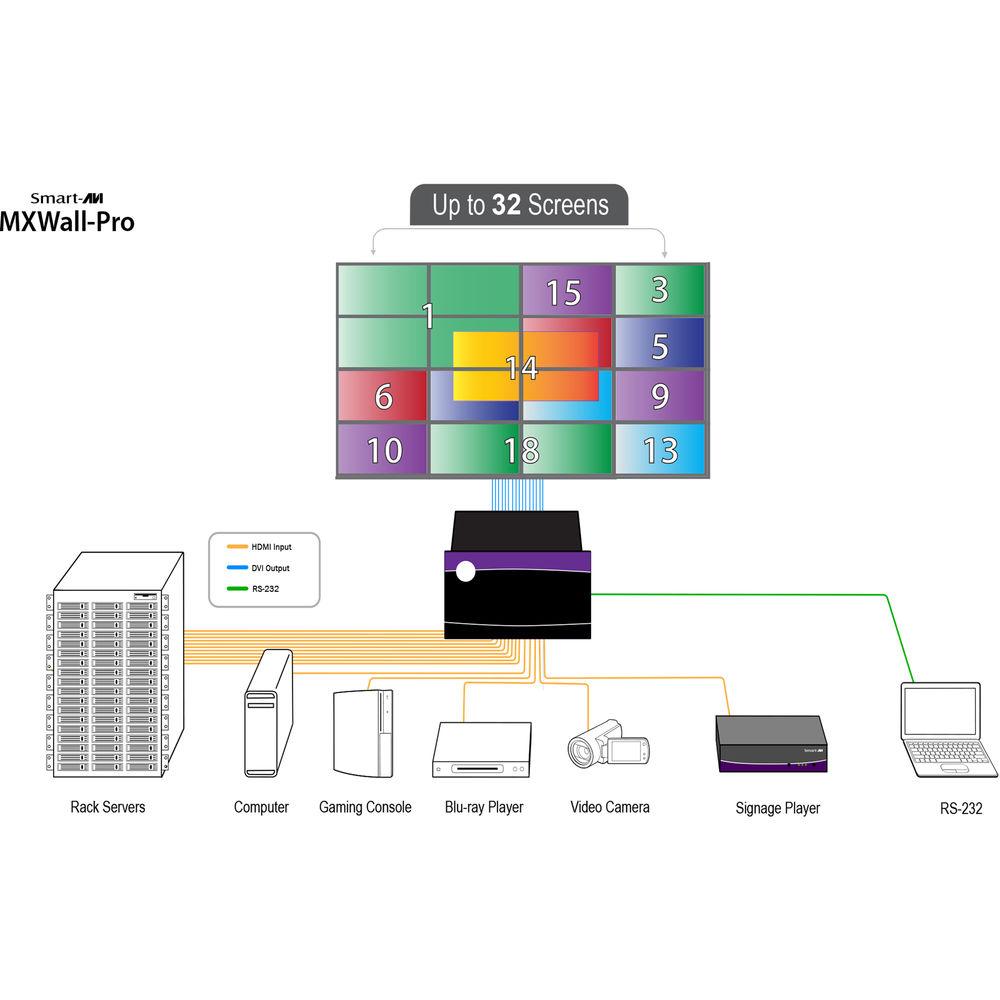

Connect devices such as a computer, game console, or video camera. The MXWall-Pro is designed for display and signage applications in airports, malls, outdoor locations, security stations, entertainment venues, and many other settings. It's plug-and-play ready and is HDCP compliant. Complementary hardware is available sold separately from Smart-AVI that provides an integrated media player and allows you to save content on-board. - Key Features
-
- Hardware-based, real-time, plug-and-play ready HDMI video wall and matrix solution
- Automatic Scaling to 1080p60
- 24/7 uninterrupted use
- HDMI 1.4 connections
- 7 RU height
- User-friendly MXWall Manager Windows setup software
- Android app for post-setup adjustments
- RS-232 and TCP/IP control
- HDCP compliant
UPC: 813280024501 In the Box Smart-AVI MXWall-Pro 32x32 HDMI Matrix Switcher with Integrated Video Wall CCPWR06 6' Power Plug Cable zzcftbdcduxesdctxexqxuyz Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI MXWall-Pro 32x32 HDMI Matrix Switcher with Integrated Video Wall in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSmart-AVI MXWALLPRO-3232S Specs | Rack Height | 7 U | | Number of Input Cards | 8 (4 x HDMI 1.4 Inputs Each) | | Number of Output Cards | 8 (4 x HDMI 1.4 Outputs Each) | | Total Number of Cards Supported | 8 Input Cards, 8 Output Cards | | Video Amplifier Bandwidth | 3.2 Gb/s | | Input Video Signal | Video (TMDS) 0.5 - 1.0 V pp | | Input DDC Signal | 5 V | | HDCP Compliance | Yes | | Pixel Rates | Clock Frequency Beyond 165 MHz per Second | | Format | 4:4:4 and 4:2:2 Data Input Formats | | Input Resolution | 1080p, 1080i, 720p, 480p | | Output Resolution | 1080p at 60 Hz | | Supported Video Types | RGB/YCBCR: 24-/30-/36-Bit, YCBCR: 8-/10-/12-/16-/20-/24-Bit | | Controls | Front (Limited Control):

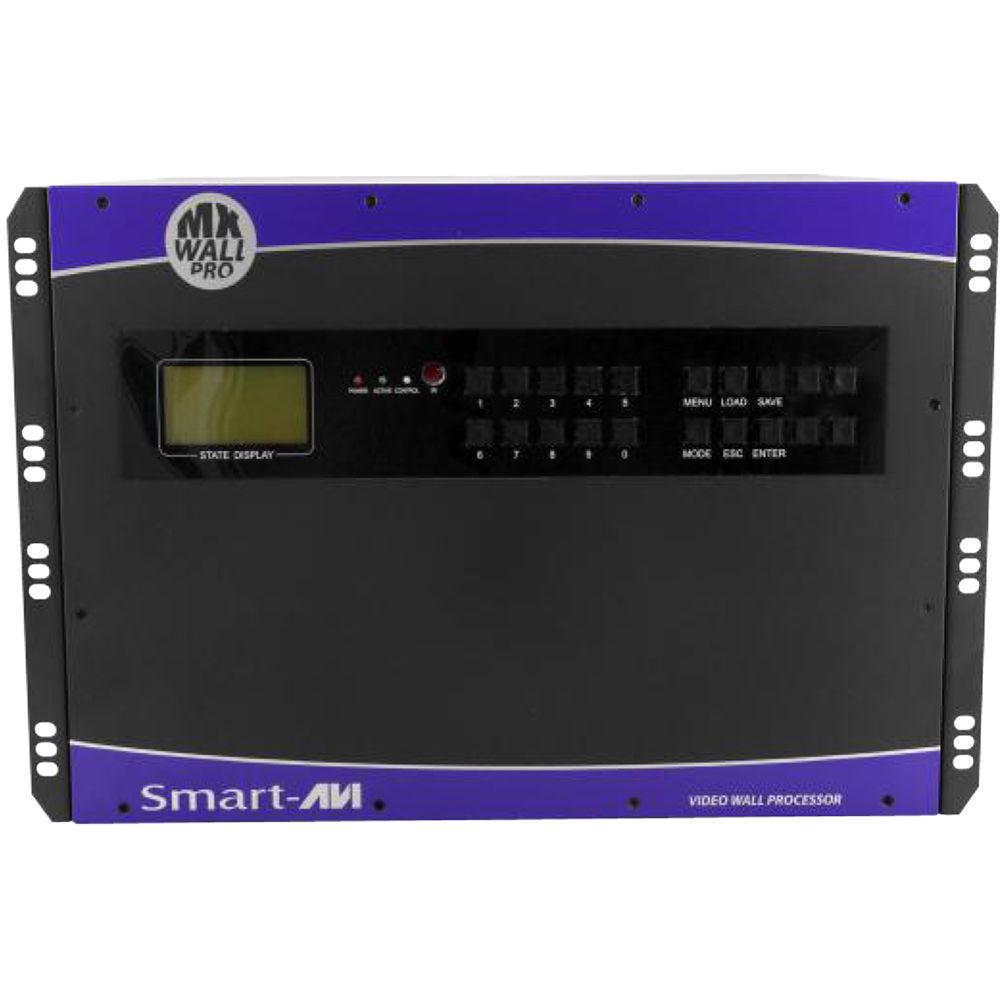

2x8 Keyboard with 4x40 Resolution LCD
RS-232:
DB9 Female, 115200 BPS, N, 8, 1, No Flow Control
TCP/IP:
Webserver, Telnet
MXWall Manager Software (Included as Free Download):
Windows 7 and Height
Mobile App (Free Download):
Android 4.4 and Higher | | Power Supply | 100-230 VAC, 50/60 Hz | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Operating Humidity | Up to 85% RH (No Condensation) | | Storage Temperature | -4 to 149°F / -20 to 65°C | | Storage Humidity | Up to 90% RH (No Condensation) |
