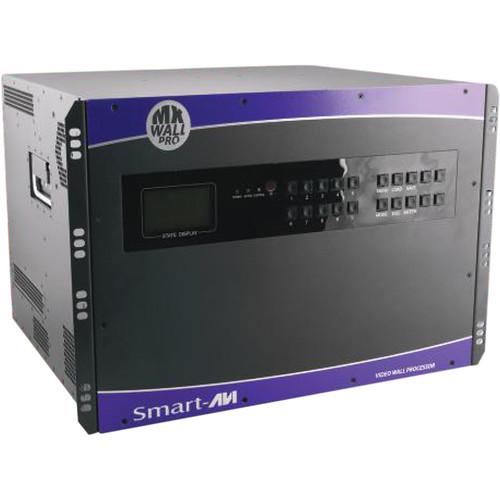

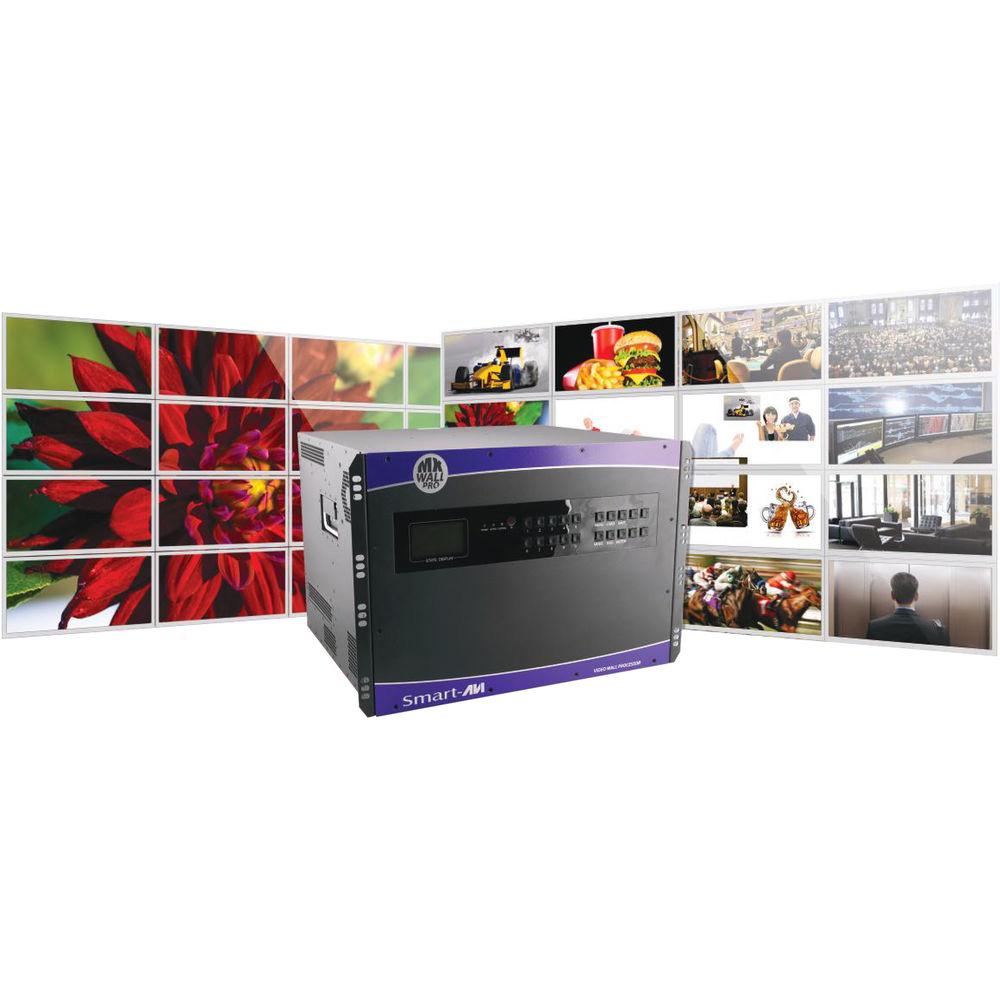

Product description The MXWall-Pro 4x4 HDMI Matrix Switcher with Integrated Video Wall from Smart-AVI is an all-in-one, hardware-based, real-time matrix routing and video wall solution with an integrated scaler. It supports up to 1080p input signals and automatically scales the signal to 1080p60 whether for matrix or video wall functionality.

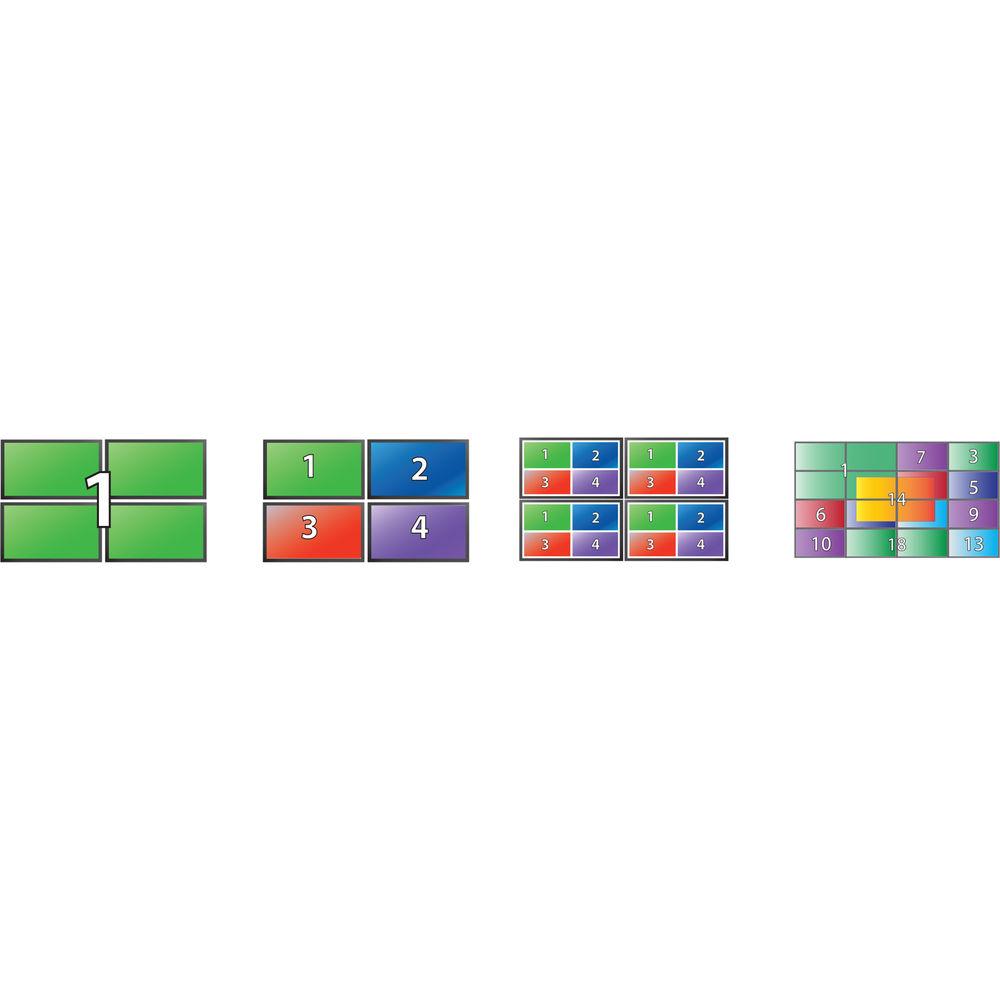

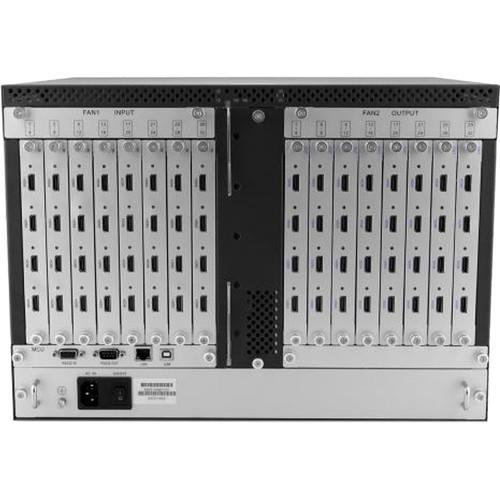

The MXWall-Pro 4x4 includes 1 input and 1 output card, each featuring four HDMI 1.4 connectors. It allows you to route one input to any or all outputs at the same time in a matrix configuration. In a video wall setup, it lets you display from a single input to all inputs in various video wall layouts, including in a one-to-one arrangement. For example, you can display one input source on all your output screens as one image, or two input sources as two images split across your output screens, or each input on one output screen.
An included (free download), user-friendly Windows software allows you to easily assign your matrix or video wall setups, and the MXWall-Pro can then be left to operate up to 24/7 without interruption. The software also lets you upload your logo as well as make various adjustments to display settings such as aspect ratio. If you'd like to make further adjustments to your matrix or video wall arrangement, you can do so in the software or in a free Android app that can be used after the initial setup in the main software. Although software is used, the MXWall-Pro is a fully hardware-based device, so switching and output all happen in real time.

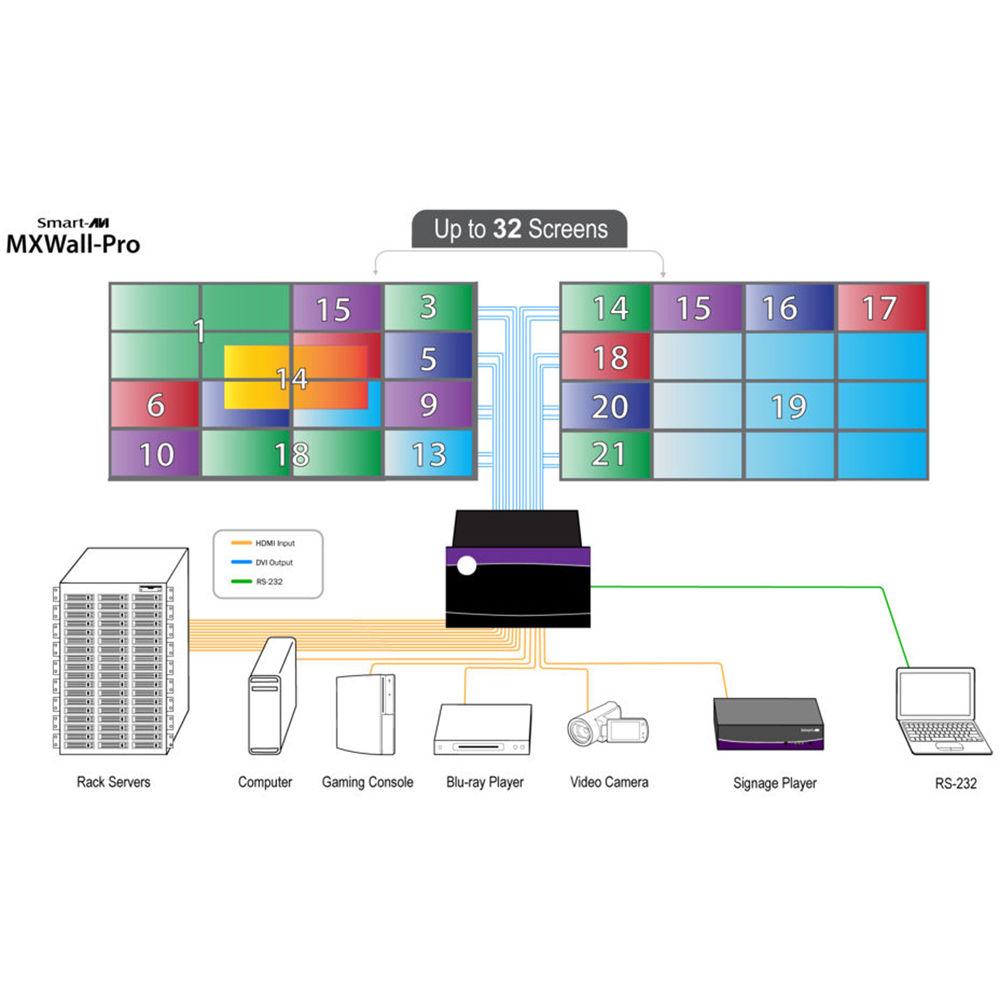

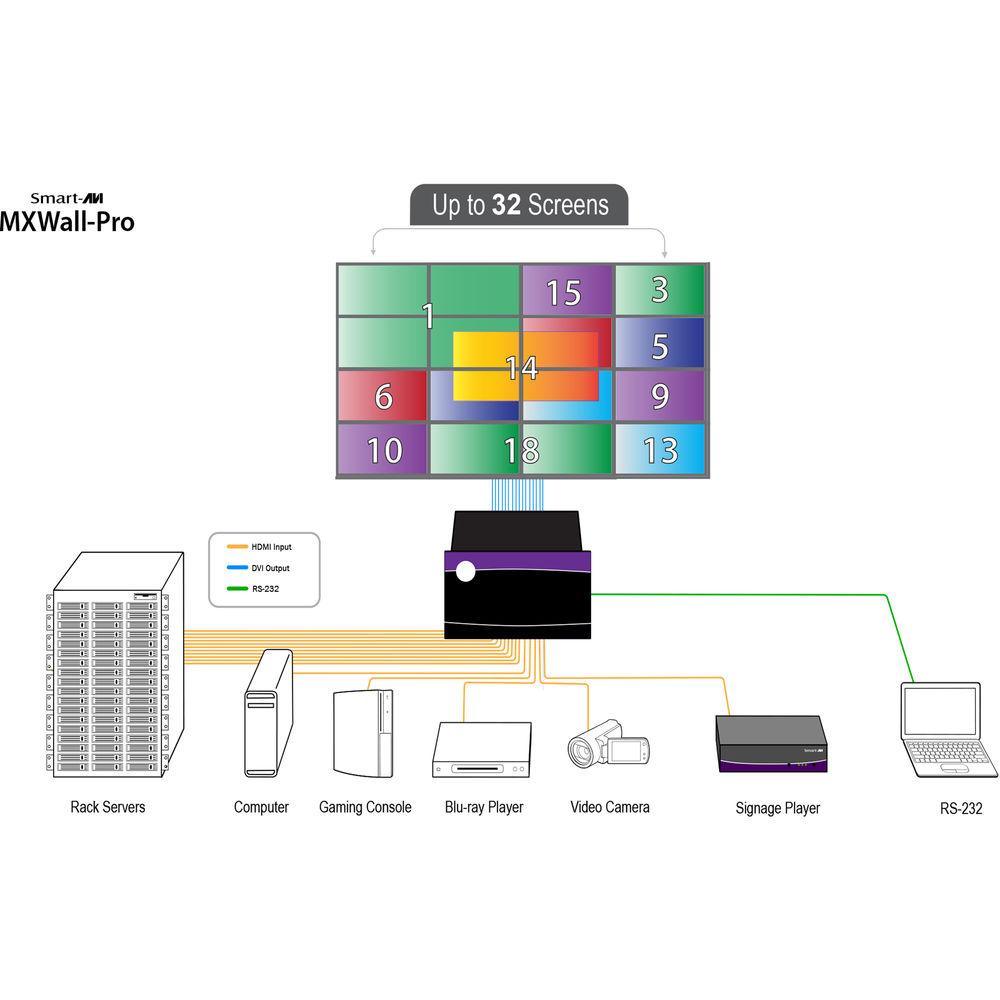

Connect devices such as a computer, game console, or video camera. The MXWall-Pro is designed for display and signage applications in airports, malls, outdoor locations, security stations, entertainment venues, and many other settings. It's plug-and-play ready and is HDCP compliant. Complementary hardware is available sold separately from Smart-AVI that provides an integrated media player and allows you to save content on-board. - Key Features
-
- Hardware-based, real-time, plug-and-play ready HDMI video wall and matrix solution
- Automatic Scaling to 1080p60
- 24/7 uninterrupted use
- HDMI 1.4 connections
- 2 RU height
- User-friendly MXWall Manager Windows setup software
- Android app for post-setup adjustments
- RS-232 and TCP/IP control
- HDCP compliant
UPC: 813280024433 In the Box Smart-AVI MXWall-Pro 4x4 HDMI Matrix Switcher with Integrated Video Wall CCPWR06 6' Power Plug Cable ertaszysdzytuycvsyxe Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI MXWall-Pro 4x4 HDMI Matrix Switcher with Integrated Video Wall in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSmart-AVI MXWALLPRO-0404S Specs | Rack Height | 2 U | | Number of Input Cards | 1 (4 x HDMI 1.4 Inputs Each) | | Number of Output Cards | 1 (4 x HDMI 1.4 Outputs Each) | | Total Number of Cards Supported | 2 Input Cards, 2 Output Cards | | Video Amplifier Bandwidth | 3.2 Gb/s | | Input Video Signal | Video (TMDS) 0.5 - 1.0 V pp | | Input DDC Signal | 5 V | | HDCP Compliance | Yes | | Pixel Rates | Clock Frequency Beyond 165 MHz per Second | | Format | 4:4:4 and 4:2:2 Data Input Formats | | Input Resolution | 1080p, 1080i, 720p, 480p | | Output Resolution | 1080p at 60 Hz | | Supported Video Types | RGB/YCBCR: 24-/30-/36-Bit, YCBCR: 8-/10-/12-/16-/20-/24-Bit | | Controls | Front (Limited Control):

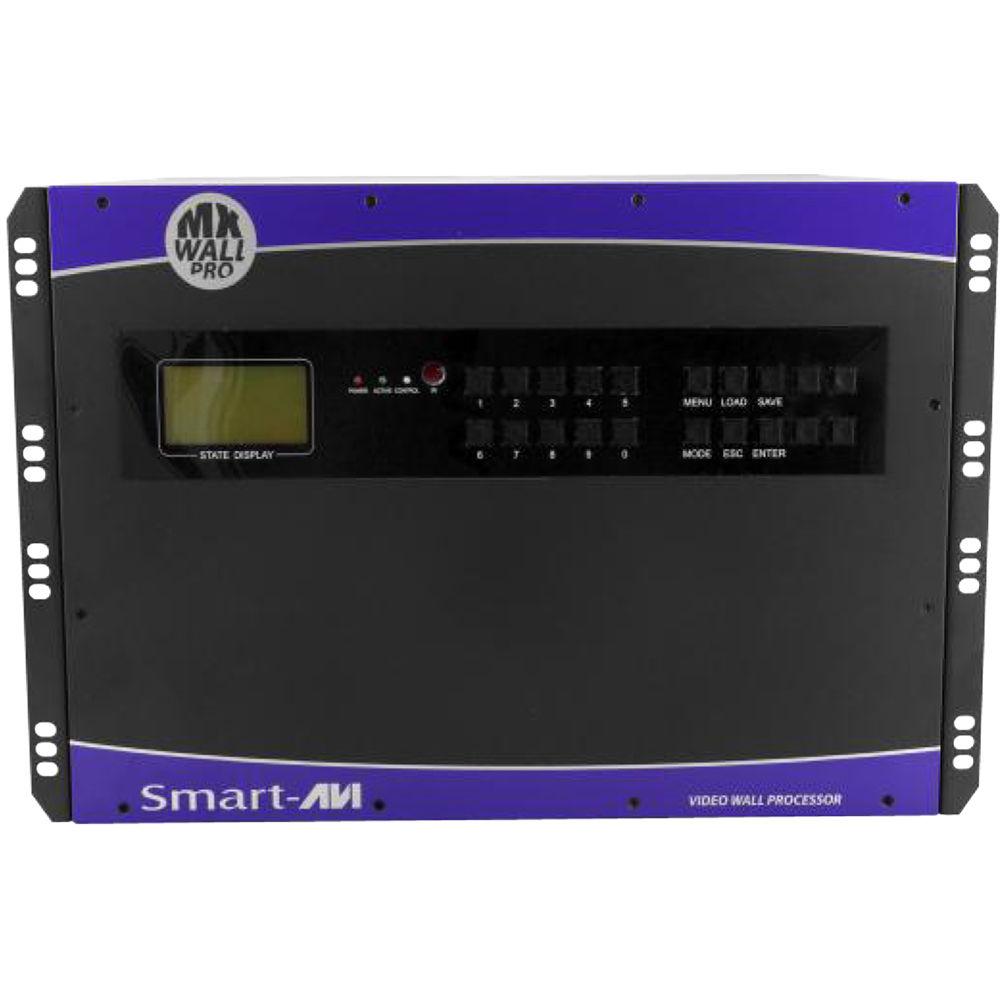

2x8 Keyboard with 4x40 Resolution LCD
RS-232:
DB9 Female, 115200 BPS, N, 8, 1, No Flow Control
TCP/IP:
Webserver, Telnet
MXWall Manager Software (Included as Free Download):
Windows 7 and Height
Mobile App (Free Download):
Android 4.4 and Higher | | Power Supply | 100-230 VAC, 50/60 Hz | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Operating Humidity | Up to 85% RH (No Condensation) | | Storage Temperature | -4 to 149°F / -20 to 65°C | | Storage Humidity | Up to 90% RH (No Condensation) |
