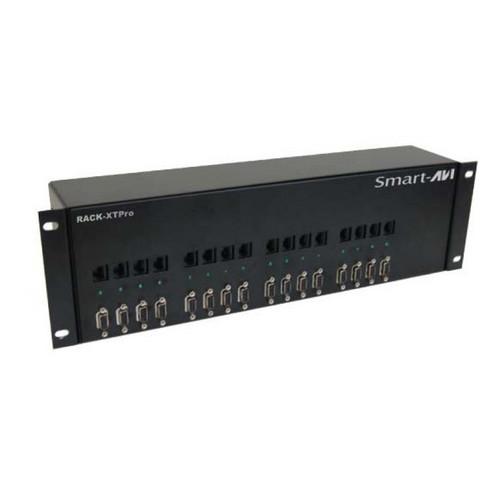

User Manual for Smart-AVI RK-XTP-RX4S 4-Port Transmitter Card for RK-XTPRO-TX Click to enlarge the picture
Contents of the user manual for the Smart-AVI RK-XTP-RX4S 4-Port Transmitter Card for
- Product category: KVM Extenders Smart-AVI
- Brand: Smart-AVI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Smart-AVI KVM Extenders
|
User manual for the Smart-AVI RK-XTP-RX4S 4-Port Transmitter Card for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Smart-AVI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Smart-AVI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Smart-AVI product will considerably shorten its lifespan!
|
Product description The RK-XTP-RX4S 4-Port Transmitter Card for RK-XTPRO-TX from Smart-Avi is a modular card designed specifically for use with the RK-XTPRO-TX Multi-Format Transmitter. The card provides the transport functionality of the system and supports broadcast of desktop video, stereo audio, RS-232, and infrared signals over unshielded, twisted-pair cabling. This solution is well suited for use in trade show rooms, board rooms, sales floors, and windows displays, among many other settings and applications. This model accommodates up to (4) transmitter ports. - This a modular card designed specifically for use with the RK-XTPRO-TX Multi-Format Transmitter.
- The card provides the transport functionality of the system and supports broadcast of desktop video, stereo audio, RS-232, and infrared signals over unshielded, twisted-pair cabling
- This solution is well suited for use in trade show rooms, board rooms, sales floors, and windows displays, among many other settings and applications
- This model accommodates up to (4) transmitter ports
- It can be used with CAT-5/5e/6/7/8 cable
- Each output extends up to 1000'
- Resolutions up to 1920 x 1200 are supported
- This solution is HDTV-compatible (720p, 1080i, 1080p)
- Bandwidth up to 300MHz is supported
- It is compatible with VGA, XGA, Sun, Mac, and SGI
- Sync format and polarity preservation are supported
In the Box Smart-AVI RK-XTP-RX4S 4-Port Transmitter Card for RK-XTPRO-TX One-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI RK-XTP-RX4S 4-Port Transmitter Card for RK-XTPRO-TX in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSmart-AVI RK-XTP-RX4S Specs | | | Ports | Transmitter:
4 x HD15 VGA (Output)
4 x 3.5 mm Audio (Output)
4 x DB9 RS232 (Output) | | Supported Resolutions | 1920 x 1200 @ 60 Hz
1280 x 1024 @ 75 Hz | | Supported Video Formats | CVBS, RGBHV, RGsB, Y/C, YUV |
