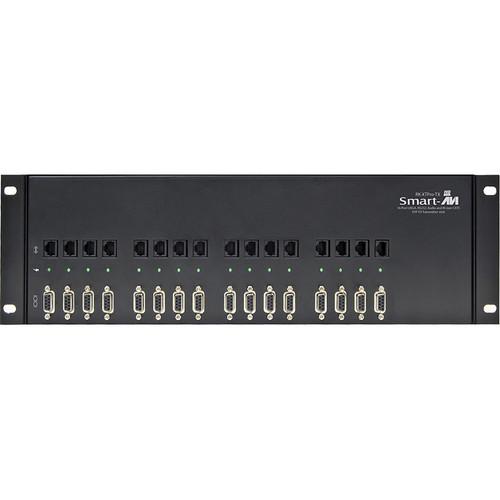

Product description The RK-XTPRO-TX Multi-Format Transmitter with Power Supply from Smart-Avi is a high-resolution UXGA and audio extender system designed to broadcast desktop video, stereo audio, RS-232, and infrared signals over unshielded, twisted-pair cabling. This solution is well suited for use in trade show rooms, board rooms, sales floors, and windows displays, among many other settings and applications. This model accommodates up to (16) outputs, which can be configured by purchasing separately available modular cards. This system allows you to extend and customize functionality piece by piece with only one unit of equipment and a single power supply. Note: This model is only one component in a paired transport system. It must be combined with a receiver and modular cards to form a complete solution. - This bundled unit includes the XTP-TX Transmitter, a UXGA adapter cable, and a power supply
- This unit supports multiple screens
- It can be used with CAT-5/5e/6/7/8 cable
- Each output extends up to 1000'
- Resolutions up to 1920 x 1200 are supported
- This solution is HDTV-compatible (720p, 1080i, 1080p)
- Bandwidth up to 300MHz is supported
- This solution can be used to manage VGA, stereo audio, RS-232, and IR signals
- It is compatible with VGA, XGA, Sun, Mac, and SGI
- Sync format and polarity preservation are supported
- This unit is compatible with line-level stereo audio signals
- High ground loop immunity is a standard feature
- Other features include built-in power surge and transient protection
- A designated trimmer in the remote unit is designed to compensate for cable length
- It is housed in a compact metal enclosure
- The unit uses an external power supply
- RS-232 communication is support for single and multiple displays
- IR commands to single or multiple displays is also supported
In the Box Smart-AVI RK-XTPRO-TX Multi-Format Transmitter with Power Supply XTP-TX Transmitter CCVGAMM06 UXGA Adapter Cable PS5VD1A Power Supply One-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI RK-XTPRO-TX Multi-Format Transmitter with Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSmart-AVI RK-XTPRO-TX Specs | | | Supported Resolutions | 1920 x 1200 @ 60 Hz
1280 x 1024 @ 75 Hz | | Supported Video Formats | CVBS, RGBHV, RGsB, Y/C, YUV | | | | DC Input Power | 5 VDC at 8 A | | AC Input Power | 110 to 240 VAC, 50 / 60 Hz | | | | Dimensions | 5.3 x 3.4 x 17.1" / 134.9 x 87.1 x 433.3 mm |
