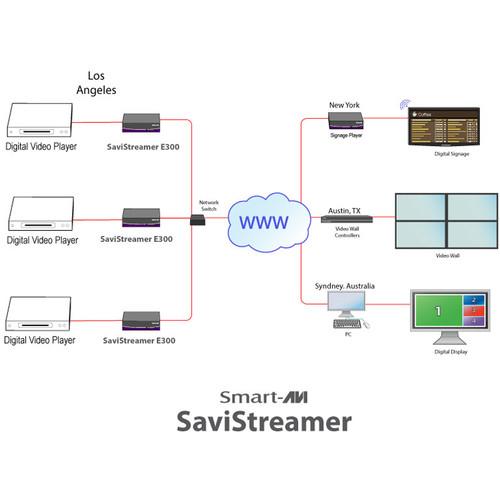

Product description The SaviStreamer E300 High-Definition Low-Bandwidth Streaming Encoder from Smart-AVI allows you to encode audio-video content to H.264 quality. The SaviStreamer Encoder is an AV-over-IP device, ideal for streaming HD media at high quality. Functional with resolutions up to 1080p at 60 frames per second, it can stream to any supporting device, as well as enhance content from local network and remote IP connections.The E300 Encoder features intuitive and easy-to-use SaviStreamer Manager software created for optimizing both bandwidth consumption and media quality. The SaviStreamer E300 Encoder also works in tandem in other systems and programs, streamlining the stream encoding process to suit the user. - Features
-
- HD H.264 video (1080p at 60 fps)
- AV-over-IP support
- Optimized for low-bandwidth consumption
- HDMI, VGA, and analog audio ports
- Supports a wide array of media sizes and types
- Schedule and record live HD content
- Robust encoding fail-safes
- Password-protected environments
- Shared network recording
- Highly scalable, powerful systems via daisy-chains
- Adjust scale, cropping, and picture quality
- Open-source encoding for third-party applications
- Full duplex RS-232 control
- Remote IP input for device and display connections
- Includes SaviStreamer Manager Software
- Energy efficient
- Applications
-
- Live content streaming
- Digital media
- Lightning-fast video uploads
- Digital broadcasts
- Digital backups
- Audio/visual presentations
- Exhibitions
- HD recording
In the Box Smart-AVI SaviStreamer E300 High-Definition Low-Bandwidth Streaming Encoder Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI SaviStreamer E300 High-Definition Low-Bandwidth Streaming Encoder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSmart-AVI E300 Specs | | | Format | HDMI 1.4 | | DVI compliance | Single-link DVI-D 1.1 with Adapter | | HDCP compliance | 1.0/1.1 | | Video Bandwidth | Single-link 340 MHz [10.2 GB/s] | | Resolution | Up to 3840x2160 @ 30 Hz | | Input Interface | 1 x HDMI (7.1 channel audio & video)

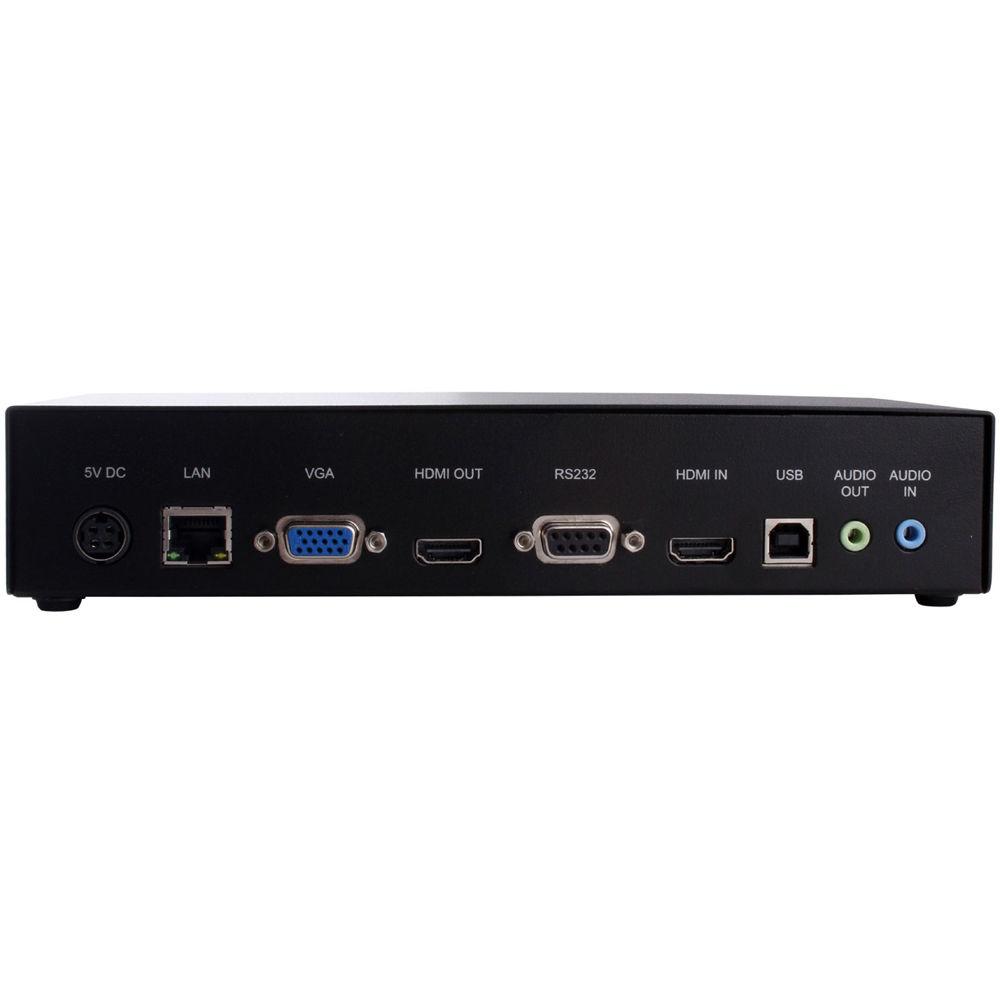

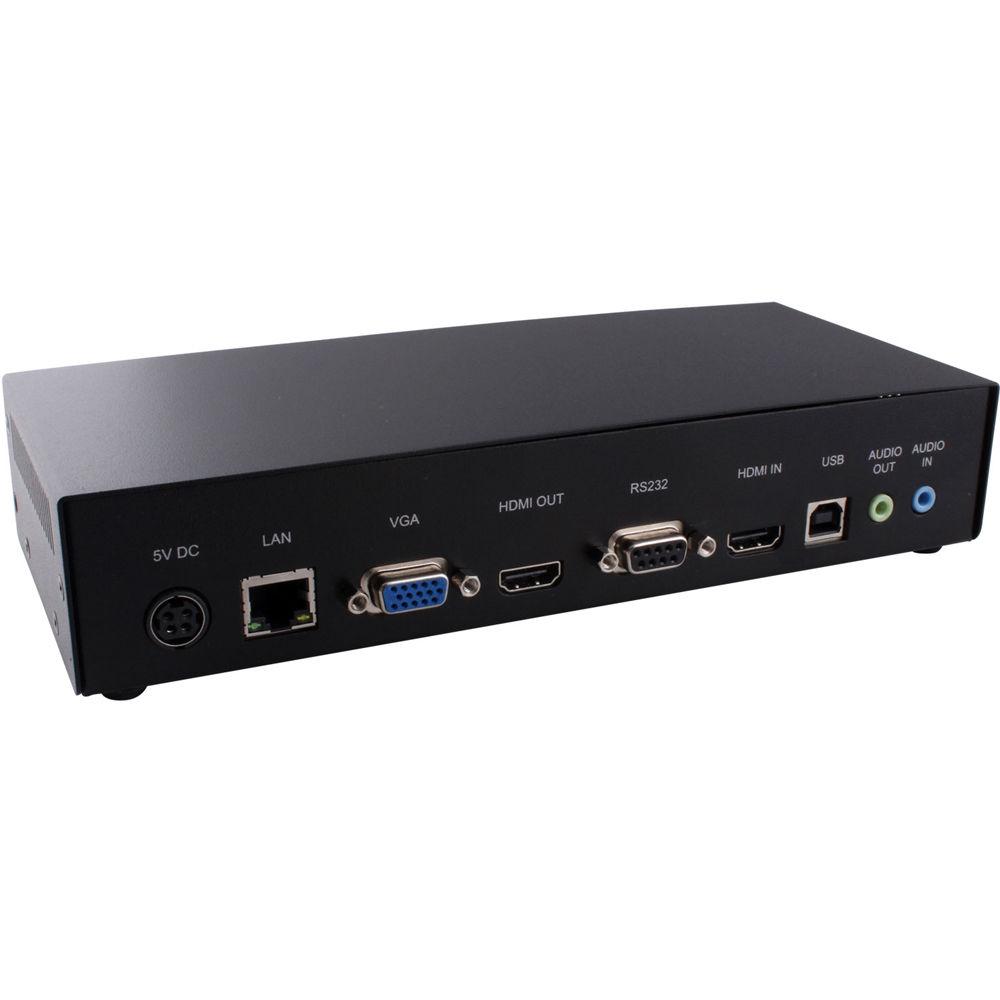

| | Output Interface | 1 x HDMI (7.1 channel audio & video) 1 x 3.5 mm stereo audio output | | Connectors | 1 x HDMI Type-A (19-pin female) input
1 x HDMI Type-A (19-pin female) output
1 x VGA input
1 x 3.5 mm stereo audio input
1 x 3.5 mm stereo audio output
1 x USB Type-B female port
1 x RS-232 port
1 x RJ-45 LAN port | | Maximum Cable Length | 20' (6.1 m) | | | | Front Panel | Recessed reset button | | PC | RS-232 control | | TCP/IP | Via web browser | | | | System & Software Requirements | SaviStreamer Manager Software:
Requires Windows XP Professional (SP 2/3) or later | | External Power Supply | Input: 100 to 240 VAC
Output: 5 VDC, 4 A

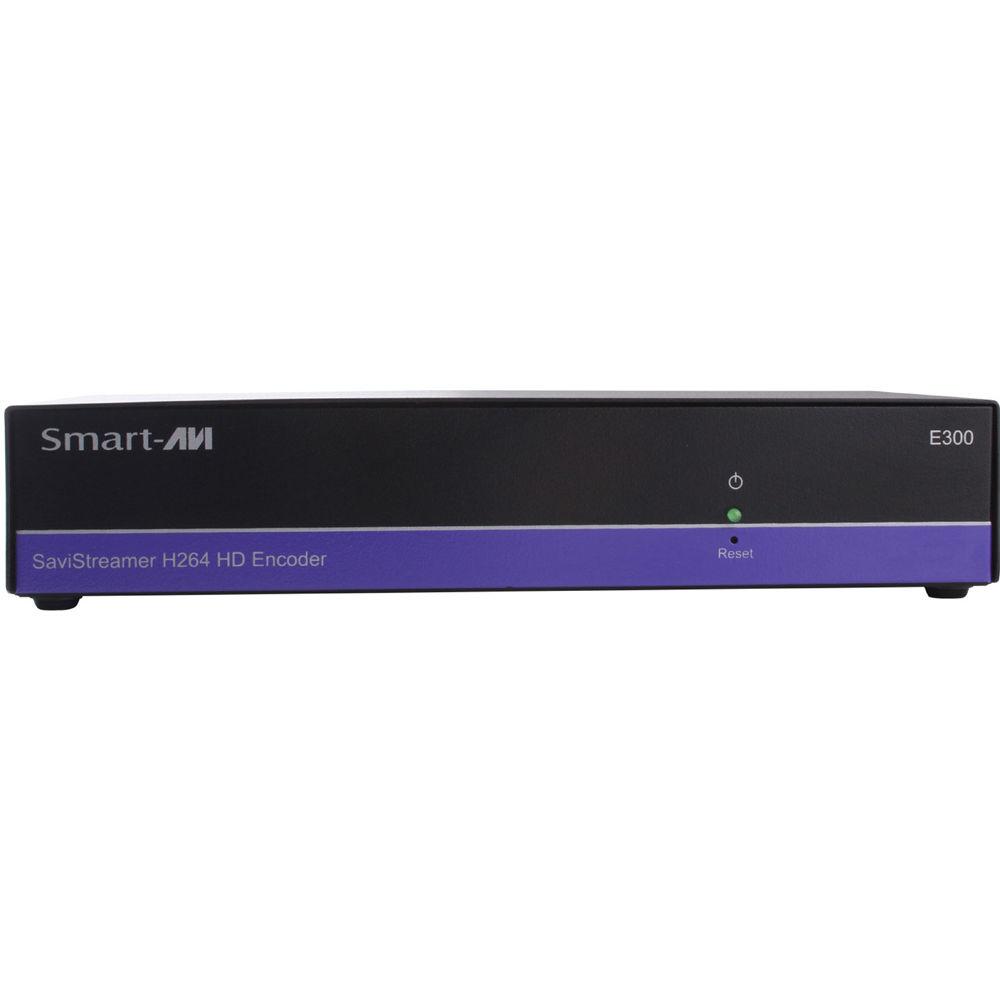

Connector: barrel type; center-pin positive | | Power Consumption | 20 W (maximum) | | Compliances | HDMI 1.4 and HDCP compliant | | Approvals | UL, CE, ROHS Compliant | | Operating temperature | 32 to 95°F (0 to 35°C) | | Storage temperature | -4 to 185°F (-20 to 85°C) | | Humidity | Up to 95% | | Dimensions (W x H x D) | 17.2 x 8.3 x 1.8" (43.7 x 21.1 x 4.5 cm) | | Weight | 6.2 lb (2.8 kg) |
