User Manual for Smart-AVI SDX-2P-S Dual DVI-D, USB, RS232, & Audio Extension Kit Click to enlarge the picture
Contents of the user manual for the Smart-AVI SDX-2P-S Dual DVI-D, USB, RS232,
- Product category: KVM Extenders Smart-AVI
- Brand: Smart-AVI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Smart-AVI KVM Extenders
 |
User manual for the Smart-AVI SDX-2P-S Dual DVI-D, USB, RS232, contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Smart-AVI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Smart-AVI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Smart-AVI product will considerably shorten its lifespan!
|
Product description The Smart-AVI SDX-2P-S DVI Extension Kit is capable of sending dual DVI-D signals up to 400’ (120m) over 2 conventional CAT5/5e/6 cables using HDBaseT technology. It has USB keyboard, mouse, audio and RS232 extensions, which give you the ability to control your displays or devices remotely.

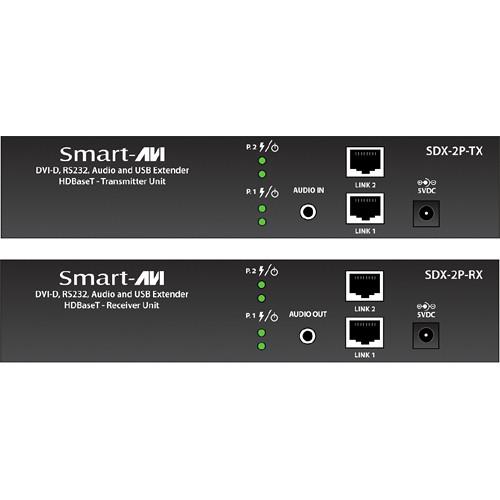

The extension kit includes an SDX-2P-TX transmitter, SDX-2P-RX receiver, and 2x PS5VDC4A Power Supplies. The transmitter and receiver require CAT5/5e/6 cables (sold separately). - Extends dual DVI-D up to 400' (120m) from the source
- Supports up to 1920 x 1200 digital video resolution
- USB keyboard and mouse extension
- Uncompressed video HDBaseT
- RS232 extension allows for remote control of displays
- External power adapter for transmitter and receiver units
- Compatible with Windows, Mac, and Linux operating systems
- Applications: Security, PC networking, conference center systems, point of sale, camera surveillance, video phones, control room systems, recording studio, PC KVM extension

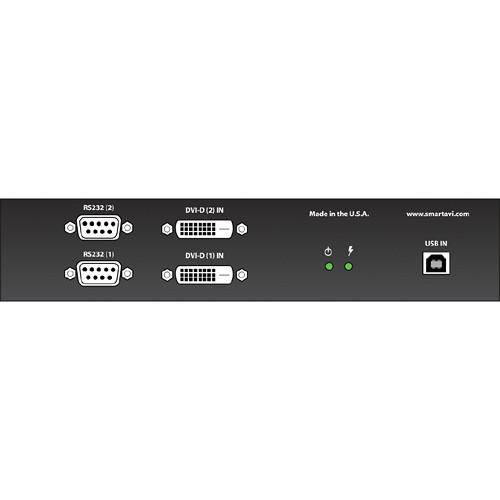

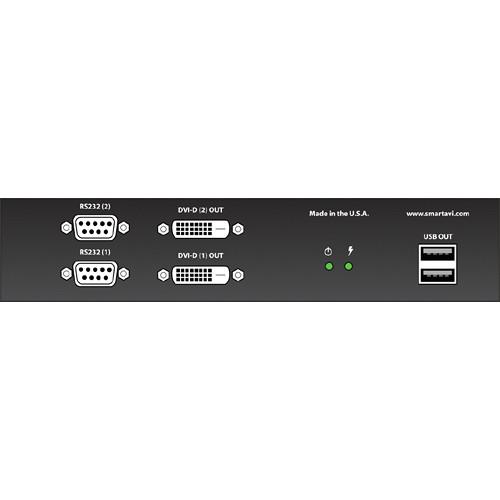

UPC: 813280015776 In the Box Smart-AVI SDX-2P-S Dual DVI-D, USB, RS232, & Audio Extension Kit SDX-2P-TX Dual DVI-D, Dual RS232, USB, & Audio Transmitter over CAT5/5e/6 SDX-2P-RX Dual DVI-D, Dual RS232, USB, & Audio Receiver over CAT5/5e/6 2 x PS5VDC4A Power Supply Limited 1-Year Warranty Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI SDX-2P-S Dual DVI-D, USB, RS232, & Audio Extension Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Smart-AVI SDX-2P-S Dual DVI-D, USB, RS232, & Audio Extension Kit can be downloaded in PDF format at the link stated below.
Technical parametersSmart-AVI SDX-2PS Specs | | | Input Interface (TX) | 2 x DVI-D 29-pin (Female) | | Output Interface (RX) | 2 x DVI-D 29-pin (Female) | | Resolution | Up to 1920 x 1200 @ 60 Hz | | Maximum Pixel Clock | 165 MHz | | DDC | 5 Vpp (TTL) | | Input Equalization | Automatic | | Input Cable Length | Both Input and Output: Up to 20' (6 m) | | | | Signal Type | Stereo audio | | Bandwidth | 15 MHz, 0 dB | | Impedance | 100 Ω | | Connector | 3.5 mm mini jack, female | | | | Signal Type | USB 1.1 | | Input Interface (TX) | 1 x USB type B (Female) | | Output Interface (RX) | 2 x USB type A (Female) | | | | Input Interface (TX) | DB9 (Female) | | Output Interface (RX) | DB9 (Male) | | Speed | @ 115 kb/s | | | | Operating Temperature | 32 to 131°F (0 to 55°C) | | Storage Temperature | -4 to 185°F (-20 to 85°C) | | Humidity | Up to 95% | | Power | External 100 to 240 VAC / 5 VDC, 4 A @ 20 W | | Dimensions (W x H x D) | 8.2 x 1.7 x 3.3" (208.2 x 43.1 x 83.8 mm) | | Weight | 4.0 lb (1.8 kg) | | | | Package Weight | 3.5 lb | | Box Dimensions (LxWxH) | 9.0 x 8.3 x 4.5" |
