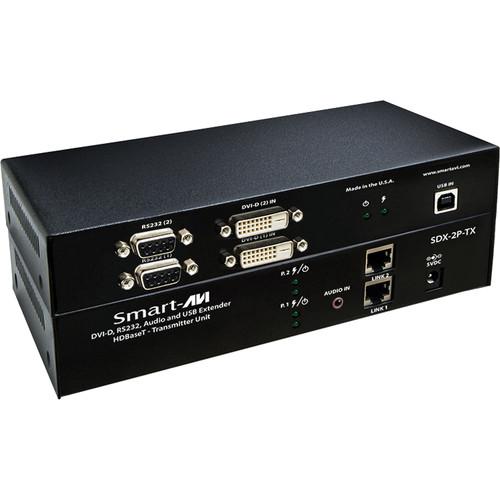

Product description The SDX-2P-TX Dual DVI-D, Dual RS-232, USB Keyboard and Mouse, and Audio Transmitter from Smart-AVI uses HDBaseT technology for transmitting dual DVI-D signals for up to 400' over two CAT5/5e/6 cables. It also supports USB keyboard and mouse, audio, and RS-232 signals transmission, giving users the ability to control displays or devices remotely. However, a SDX-2P-RX receiver is required at the display end for this remote controlling. - Transmitter
-
- Transmits dual DVI-D signals for up to 400’ (120m) from the source
- HDCP Support
- Supports up to 1920 x 1200 digital video resolution @ 60 Hz
- Supports 4K/2K (3840 x 2160) video resolution @ 30 Hz
- Automatic DDC Learning
- USB keyboard and mouse extension
- Transmits uncompressed video using HDBaseT technology
- RS232 transmission allows for remote control of displays
- Powered via external power adapter
- Supports stereo sound
- Compatible with Windows, Mac, and Linux operating systems
- Designed and manufactured in USA
- Applications
-
- Digital Signage
- Security
- PC Networking
- Conference Center Systems
- Point of Sale
- Camera Surveillance
- Video Phone
- Control Room Systems
- Recording Studio
- PC KVM Extension
UPC: 813280023160 In the Box Smart-AVI SDX-2P-TX Dual DVI-D, Dual RS-232, USB Keyboard and Mouse, and Audio Transmitter Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI SDX-2P-TX Dual DVI-D, Dual RS-232, USB Keyboard and Mouse, and Audio Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSmart-AVI SDX-TX2P Specs | | | Format | DVI-D | | Maximum Pixel Clock | 165 MHz | | Interface | 2 x DVI-D 29-pin female | | Resolution | Up to 1920 x 1200 @ 60 Hz and up to 4K/2K (3840 x 2160) @ 30 Hz | | DDC | 5 Vpp (TTL) | | Input Equalization | Automatic | | Input Cable Length | Up to 20' (6 m) | | | | RS-232 | Interface: 2 x DB9 (female)
Speed: 115 kb/s | | IR | Interface: 1 x 3.5 mm (female)
Frequency Response: 30 to 80 kHz | | Power | External: 100 to 240 VAC / 5 VDC, 3 A @ 20 W | | Operating Temperature | 32 to 131°F (0 to 55°C) | | Storage Temperature | -4 to 185°F (-20 to 85°C) | | Humidity | Up to 95% | | Dimensions (W x H x D) | 5.1 x 1.0 x 3.6" (12.9 x 2.5 x 9.1 cm) | | Weight | 8 oz (227 g) | | | | Package Weight | 2.45 lb | | Box Dimensions (LxWxH) | 10.7 x 5.5 x 4.2" |
