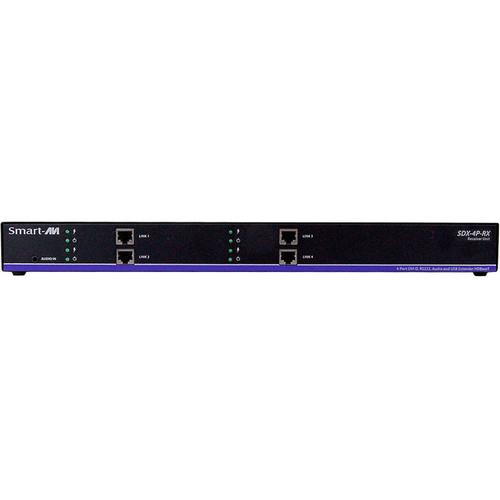

Product description The SDX-4P-RX Quad DVI-D, Dual RS-232, Audio, and USB Keyboard and Mouse Receiver from Smart-AVI uses HDBaseT technology to receive quad DVI-D signals up to 400' over four CAT5/5e/6 cables. It also extends USB keyboard and mouse, audio, and RS-232 signals, giving users the ability to control displays or devices remotely.The 400' signal extension gives system architects and end users the ability to create the audio and video environment that best suits their needs and applications. With support for high-resolution monitors, users can get the most out of their displays while getting the flexibility of long distance signal extension.While managing content in high-security environments, creating a safe and secure control room is critical. Such applications require routing signals from a server room where the computers are safely stored to a control room where approved personnel access the data and video feeds. Whether in a security surveillance center, an operations control room, or some other security-related environment, being able to extend video, audio, USB, and RS-232 signals is a must. This receiver provides system architects with the flexibility they need to create secure environments for servers as well as the end users accessing those computers. And with quad DVI-D signal extension, users can manage their connected computers with expanded display options.Managing a multi-screen digital signage solution requires foresight regarding the signal path to the informative and attractive displays. Particularly when it comes to properly scheduled, updated, and managed content being displayed, it's much more efficient to keep all of the digital signage hardware in one central location and to extend the video signals out from there. That means signal extension is an important part of a smart digital signage solution, and this transmitter gives users the flexibility they want and need to place their digital signage screens in the right locations to maximize their effectiveness.In recording applications, maintaining signal and recording fidelity is an absolute necessity. For video recording, it is often important that no unsightly computers are visible. Similarly, audio engineers must keep noisy computers away from the rooms where recording happens to ensure that the final product sounds professional. In both such instances, the transmitter gives users a suitable way to keep their servers or computers away from audio or video recording areas, ensuring noise-free results. Extender -
- Extends quad DVI-D up to 400’ (120m) from the source
- HDCP support
- Supports up to 1920 x 1200 digital video resolution @ 60 Hz
- Supports 4K/2K (3840 x 2160) video resolution @ 30 Hz
- Automatic DDC learning
- USB keyboard and mouse extension
- Uncompressed video using HDBaseT technology
- RS-232 extension allows for remote control of displays
- Powered via external power adapter
- Supports stereo sound
- Compatible with Windows, Mac, and Linux OS
- OSD supported
- Made in USA
Application -
- Digital Signage
- Security
- PC networking
- Conference center systems
- Point of Sale
- Camera surveillance
- Video phone
- Control room systems
- Recording studio
- PC KVM extension
In the Box Smart-AVI SDX-4P-RX Quad DVI-D, Dual RS-232, Audio, and USB Keyboard and Mouse Receiver Limited 1-Year Warranty Brochure PDF 408.5kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI SDX-4P-RX Quad DVI-D, Dual RS-232, Audio, and USB Keyboard and Mouse Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSmart-AVI SDX-RX4P Specs | | | Format | DVI-D single line | | Maximum Pixel Clock | 165 MHz | | Input Interface | 4 x DVI-D 29-pin female | | Resolution | Up to 1920 x 1200 @ 60 Hz and up to 4K/2K (3840 x 2160) @ 30 Hz | | DDC | 5 Vpp (TTL) | | Input Equalization | Automatic | | Input Cable Length | Up to 20' (6 m) | | | | Interface | 1 x DB9 (female) | | Speed | 115 kb/s | | | | Input Interface | IR: 1 x 3.5 mm (female)
USB: 1 x USB Type B (female) | | Frequency Response | IR: 30 to 80 kHz | | Signal Type | USB: OHCI/UHCI (USB 1.1) | | Power | Internal 100 to 240 VAC / 5 VDC, 3 A @ 20 W | | Operating Temperature | 32 to 131°F (0 to 55°C) | | Storage Temperature | -4 to 185°F (-20 to 85°C) | | Humidity | Up to 95% | | Dimensions (W x H x D) | 17.0 x 1.7 x 3.2" (43.0 x 4.3 x 8.1 cm) | | Weight | 5 lb (2 kg) |
