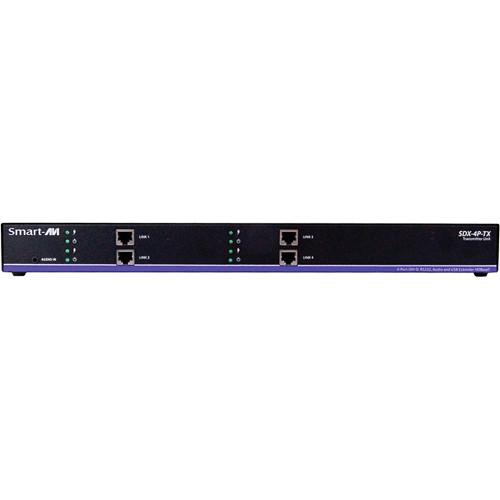

User Manual for Smart-AVI SDX-4PS Quad DVI-D, Dual RS-232, Audio, and USB Keyboard and Mouse Extender Click to enlarge the picture
Contents of the user manual for the Smart-AVI SDX-4PS Quad DVI-D, Dual RS-232,
- Product category: KVM Extenders Smart-AVI
- Brand: Smart-AVI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Smart-AVI KVM Extenders
|
User manual for the Smart-AVI SDX-4PS Quad DVI-D, Dual RS-232, contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Smart-AVI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Smart-AVI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Smart-AVI product will considerably shorten its lifespan!
|
Product description The SDX-4PS Quad DVI-D, Dual RS-232, Audio, and USB Keyboard and Mouse Extender from Smart-AVI includes receiver and transmitter units that use HDBaseT technology to extend quad DVI-D signals up to 400' over four CAT5/5e/6 cables. It also extends USB keyboard and mouse, audio, and RS-232 signals, giving users the ability to control displays or devices remotely. Supporting resolutions up to 1920x1200 at 60 Hz and Ultra HD 3840x2160 at 30 Hz, users can get the most out of their high-resolution displays while getting the flexibility of long distance signal extension. Each unit is 1U rack-mountable and includes an external power adapter. - SDX-4PS-TX Quad DVI-D, Dual RS-232, Audio, and USB Keyboard and Mouse Transmitter The 1U rack-mountable SDX-4PS-TX Quad DVI-D, Dual RS-232, Audio, and USB Keyboard and Mouse Transmitter from Smart-AVI uses HDBaseT technology to transmit quad DVI-D signals up to 400' to the optional SDX-4P-RX receiver over four CAT5/5e/6 cables. It also transmits USB keyboard and mouse, audio, and RS-232 signals, giving users the ability to control displays or devices remotely. Supporting resolutions up to 1920x1200 at 60 Hz and Ultra HD 3840x2160 at 30 Hz, users can get the most out of their high-resolution displays while getting the flexibility of long distance signal extension. An external power adapter comes included.
Note: A SDX-49-RX receiver is required for signal extension. - Key Features
-
- Transmits quad DVI-D up to 400' from the source to optional SDX-4P-RX receiver unit
- HDCP support
- Supports up to 1920 x 1200 digital video resolution @ 60 Hz
- Supports 4K/2K (3840 x 2160) video resolution @ 30 Hz
- Automatic DDC learning
- USB keyboard and mouse extension
- Uncompressed video using HDBaseT technology
- RS-232 extension allows for remote control of displays
- Powered via external power adapter
- Supports stereo sound
- 1U rack-mountable (19" rack)
- Compatible with Windows, Mac, and Linux OS
- Applications
-
- Digital Signage
- Security
- PC networking
- Conference center systems
- Point of Sale
- Camera surveillance
- Video phone
- Control room systems
- Recording studio
- PC KVM extension
- SDX-4P-RX Quad DVI-D, Dual RS-232, Audio, and USB Keyboard and Mouse Receiver The SDX-4P-RX Quad DVI-D, Dual RS-232, Audio, and USB Keyboard and Mouse Receiver from Smart-AVI uses HDBaseT technology to receive quad DVI-D signals up to 400' over four CAT5/5e/6 cables. It also extends USB keyboard and mouse, audio, and RS-232 signals, giving users the ability to control displays or devices remotely.The 400' signal extension gives system architects and end users the ability to create the audio and video environment that best suits their needs and applications. With support for high-resolution monitors, users can get the most out of their displays while getting the flexibility of long distance signal extension.While managing content in high-security environments, creating a safe and secure control room is critical. Such applications require routing signals from a server room where the computers are safely stored to a control room where approved personnel access the data and video feeds. Whether in a security surveillance center, an operations control room, or some other security-related environment, being able to extend video, audio, USB, and RS-232 signals is a must. This receiver provides system architects with the flexibility they need to create secure environments for servers as well as the end users accessing those computers. And with quad DVI-D signal extension, users can manage their connected computers with expanded display options.Managing a multi-screen digital signage solution requires foresight regarding the signal path to the informative and attractive displays. Particularly when it comes to properly scheduled, updated, and managed content being displayed, it's much more efficient to keep all of the digital signage hardware in one central location and to extend the video signals out from there. That means signal extension is an important part of a smart digital signage solution, and this transmitter gives users the flexibility they want and need to place their digital signage screens in the right locations to maximize their effectiveness.In recording applications, maintaining signal and recording fidelity is an absolute necessity. For video recording, it is often important that no unsightly computers are visible. Similarly, audio engineers must keep noisy computers away from the rooms where recording happens to ensure that the final product sounds professional. In both such instances, the transmitter gives users a suitable way to keep their servers or computers away from audio or video recording areas, ensuring noise-free results.
Extender -
- Extends quad DVI-D up to 400’ (120m) from the source
- HDCP support
- Supports up to 1920 x 1200 digital video resolution @ 60 Hz
- Supports 4K/2K (3840 x 2160) video resolution @ 30 Hz
- Automatic DDC learning
- USB keyboard and mouse extension
- Uncompressed video using HDBaseT technology
- RS-232 extension allows for remote control of displays
- Powered via external power adapter
- Supports stereo sound
- Compatible with Windows, Mac, and Linux OS
- OSD supported
- Made in USA
Application -
- Digital Signage
- Security
- PC networking
- Conference center systems
- Point of Sale
- Camera surveillance
- Video phone
- Control room systems
- Recording studio
- PC KVM extension
In the Box Bundle Items SDX-4PS-TX Quad DVI-D, Dual RS-232, Audio, and USB Keyboard and Mouse Transmitter fybwavytfrax - 2 x Power Adapter (PS5VDC3A)
SDX-4P-RX Quad DVI-D, Dual RS-232, Audio, and USB Keyboard and Mouse Receiver
Also Includes - 2 x Power Adapter (PS5VDC3A)
- Limited 1-Year Warranty
Brochure PDF 1.3mbfybwavytfrax Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI SDX-4PS Quad DVI-D, Dual RS-232, Audio, and USB Keyboard and Mouse Extender in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - SDX-4PS-TX Quad DVI-D, Dual RS-232, Audio, and USB Keyboard and Mouse Transmitter
| | | Format | DVD-D Single Line | | Maximum Pixel Clock | 165 MHz | | Input Interface (TX) | 4 x DVI-D, 29-pin (female) | | Max. Resolution Support | 1920 x 1200 at 60 Hz
3840 x 2160 at 30 Hz | | DDC | 5 V p-p (TTL) | | Input Equalization | Automatic | | Input Cable Length | Up to 20' (6.1 m) | | | | Input Interface (TX) | DB9 (female) | | Speed | @ 115 Kbps | | | | Input Interface (TX) | 1 x 3.5 mm (female) | | Frequency Response | 30 to 80 KHz | | | | Input Interface (TX) | 1 x USB Type B (female) | | Signal Type | OHCI/UHCI (USB 1.1) | | | | Operating Temperature | 32 to 131°F (0 to 55°C) | | Storage Temperature | -4 to 185°F (-20 to 85°C) | | Humidity | Up to 95% | | Power | Internal 100 to 240 VAC / 5 VDC, 3 A @ 20 W | | Rack Size | 1U, 19" rack (with included rack ears) | | Dimensions (WxHxD) | Without rack ears: 17.0 x 1.7 x 3.2" (43.2 x 4.3 x 8.1 cm) | | Weight | Transmitter: 4 lb (1.81 kg) Power Adapter: 1 lb (0.45 kg) | - SDX-4P-RX Quad DVI-D, Dual RS-232, Audio, and USB Keyboard and Mouse Receiver
| | | Format | DVI-D single line | | Maximum Pixel Clock | 165 MHz | | Input Interface | 4 x DVI-D 29-pin female | | Resolution | Up to 1920 x 1200 @ 60 Hz and up to 4K/2K (3840 x 2160) @ 30 Hz | | DDC | 5 Vpp (TTL) | | Input Equalization | Automatic | | Input Cable Length | Up to 20' (6 m) | | | | Interface | 1 x DB9 (female) | | Speed | 115 kb/s | | | | Input Interface | IR: 1 x 3.5 mm (female)
USB: 1 x USB Type B (female) | | Frequency Response | IR: 30 to 80 kHz | | Signal Type | USB: OHCI/UHCI (USB 1.1) | | Power | Internal 100 to 240 VAC / 5 VDC, 3 A @ 20 W | | Operating Temperature | 32 to 131°F (0 to 55°C) | | Storage Temperature | -4 to 185°F (-20 to 85°C) | | Humidity | Up to 95% | | Dimensions (W x H x D) | 17.0 x 1.7 x 3.2" (43.0 x 4.3 x 8.1 cm) | | Weight | 5 lb (2 kg) |
