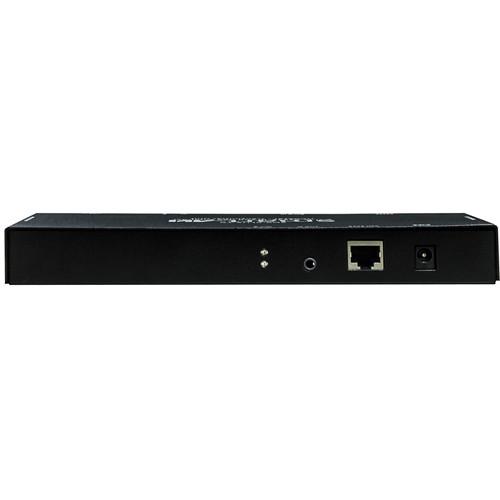

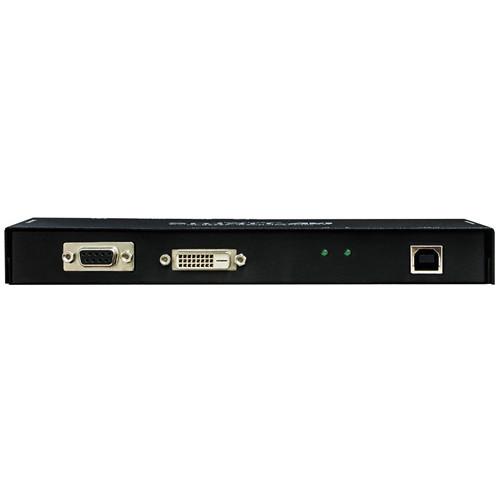

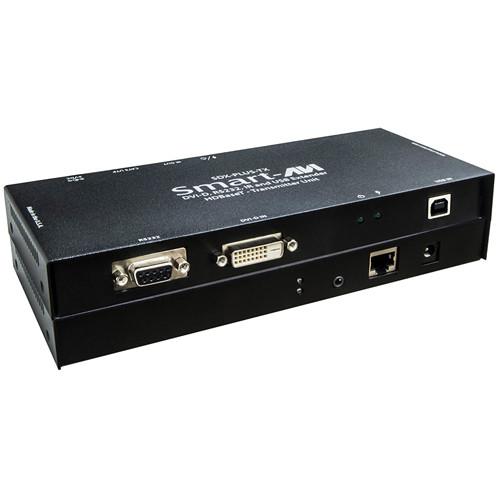

Product description The SDX-Plus-TX Extra Long Range DVI-D, USB Keyboard and Mouse, RS-232, and Audio Transmitter from Smart-AVI uses HDBaseT technology to transmit DVI-D signals from up to 400' over a single CAT5/5e/6 cable. It also supports USB keyboard and mouse, audio, and RS-232 signals transmission, giving users the ability to control displays or devices remotely. However, SDX-Plus-RX receiver is required at the display end for this remote controlling. - Transmitter
-
- Transmits DVI-D signal for up to 400’ (120m) from the source
- Data recovery for digital video
- Supports up to 1920 x 1200 digital video resolution @ 60 Hz
- Supports 4K/2K (3840 x 2160) video resolution @ 30 Hz
- Automatic DDC Learning
- USB keyboard and mouse extension
- Uncompressed video using HDBaseT technology
- IR and RS232 extension allows for remote control of displays
- Powered via external power adapter
- Plug-and-play ready
- Designed and manufactured in USA
- Applications
-
- Digital Signage
- Security
- PC Networking
- Conference Center Systems
- Point of Sale
- Camera Surveillance
- Video Phone
- Control Room Systems
- Recording Studio
- PC KVM Extension
UPC: 813280023139 In the Box Smart-AVI SDX-Plus-TX Extra Long Range DVI-D, USB Keyboard and Mouse, RS-232, and Audio Transmitter Power Supply Limited 1-Year Warranty Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI SDX-Plus-TX Extra Long Range DVI-D, USB Keyboard and Mouse, RS-232, and Audio Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Smart-AVI SDX-Plus-TX Extra Long Range DVI-D, USB Keyboard and Mouse, RS-232, and Audio Transmitter can be downloaded in PDF format at the link stated below.
Technical parametersSmart-AVI SDX-PLUS-TX Specs | | | Format | DVI-D single line | | Maximum Pixel Clock | 165 MHz | | Interface | 1 x DVI-D 29-pin female | | Resolution | Up to 1920 x 1200 @ 60 Hz and up to 4K/2K (3840 x 2160) @ 30 Hz | | DDC | 5 Vpp (TTL) | | Input Equalization | Automatic | | Input Cable Length | Up to 20' (6 m) | | | | Interface | 1 x DB9 (female) with supporting speed of 115 kb/s | | | | Interface | 1 x USB type B (female) | | Signal Type | OHCI/UHCI (USB 1.1) | | | | IR | Interface: 1 x 3.5 mm (female)
Frequency Response: 30 to 80 kHz | | Power | External: 100 to 240 VAC / 5 VDC, 3 A @ 20 W | | Operating Temperature | 32 to 131°F (0 to 55°C) | | Storage Temperature | -4 to 185°F (-20 to 85°C) | | Humidity | Up to 95% | | Dimensions (W x H x D) | 8.3 x 1.0 x 3.6" (21.1 x 2.5 x 9.1 cm) | | Weight | 1.0 lb (0.5 kg) | | | | Box Dimensions (LxWxH) | 22.0 x 16.0 x 10.0" |
