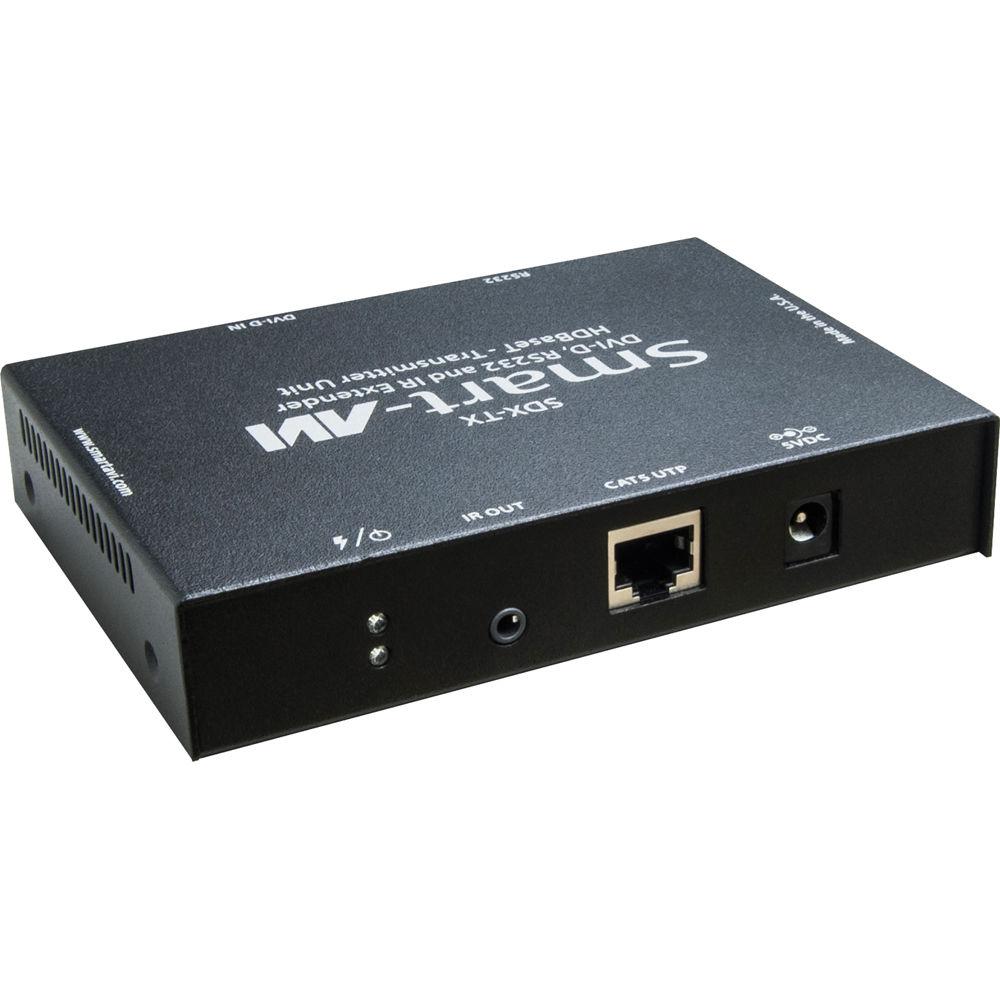

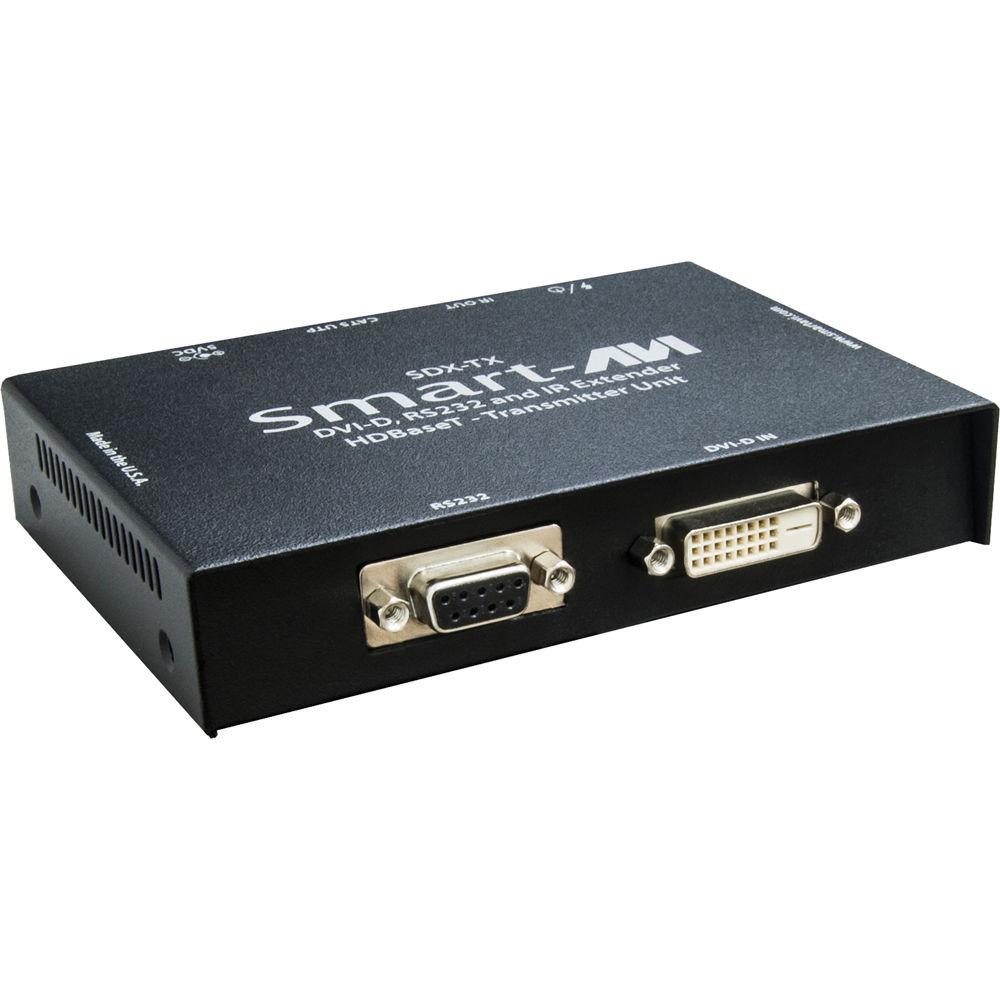

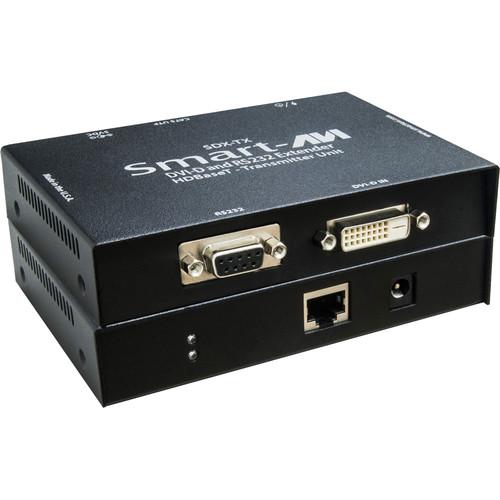

Product description The SDX-TX DVI-D & IR Transmitter over CAT5e/6 from Smart-AVI is an HDBaseT DVI transmitter unit. It transmits signal over a CAT5e/6 cable and outputs high-definition DVI-D signals with support for IR control. You can transmit signals up to 400' away over a CAT5e/6 cable, and requires an SDX-RX receiver unit (both sold separately). - Extends DVI-D video, RS232, and IR signals up to 400' from the source over a single CAT5/5e/6 cable
- Data recovery for digital video
- Supports up to 1920 x 1200 digital video resolution @ 60 Hz
- Uncompressed video using HDBaseT
- IR & RS-232 extension allows for remote control of displays
- External power adapter for transmitter and receiver unit
- Applications
- Digital Signage
Security
PC Networking
Conference Center Systems
Point of Sale
Camera Surveillance
Video Phone
Control Room Systems
Recording/Production Studios In the Box Smart-AVI SDX-TX DVI-D & IR Transmitter over CAT5e/6 PS5VDC4A Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI SDX-TX DVI-D & IR Transmitter over CAT5e 6 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSmart-AVI SDX-TXS Specs | Video Format | DVI-D single line | | Maximum Pixel Clock | 165 MHz | | Resolution | Up to 1920 x 1200 @ 60 Hz | | DDC | 5 V p-p (TTL) | | Input Equalization | Automatic | | Connectors | 1 x DVI-D 29-pin female, video input
1 x DB9 female, RS-232 input
1 x 3.5 mm female, IR output | | Cable Length | Up to 20' (6.1 m) | | RS-232 | Speed: @ 115 Kbps | | Operating Temperature | 32 to 131°F (0 to 55°C) | | Storage Temperature | -4 to 185°F (-20 to 80°C) | | Humidity | Up to 95% | | Power | External 100-240 VAC/5 VDC, 4 A @ 20 W | | Dimensions | 5.1 x 1.0 x 3.6" (13.0 x 2.5 x 9.2 cm) | | Weight | 0.5 lb (0.2 kg) |
