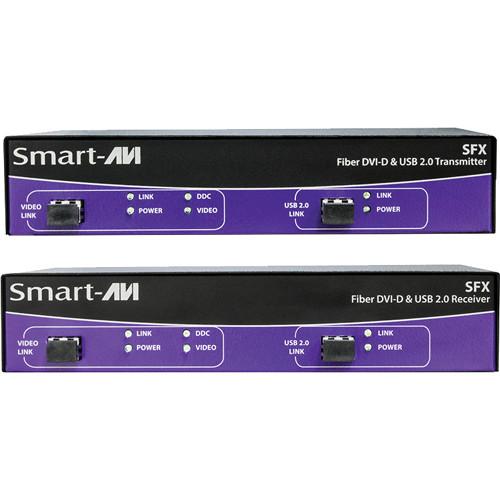

Product description The Smart-AVI SFX DVI-D, USB 2.0, Audio, & RS232 Fiber Extender extends DVI-D and USB 2.0 signals from a computer in a remote location up to 1,500’ away. It supports high-resolution DVI-D video and all USB device types from high-speed Web cams, hard drives, printers, scanners, audio devices, touch screens, digital cameras, and game controllers.
The SFX Extender is immune to electromagnetic interference, making it suitable for use in situations where there is considerable interference. It is also very secure because its fiber optic signals cannot be easily tapped. - Top signal quality at maximum extension
- Over multimode fiber (1,500') plug type LC
- DVI-D video resolutions up to 1920 x 1200 WUXGA at 60 Hz
- Automatic learning DDC for Mac/PC
- Supports USB 1.1 (12 Mb/s) and USB 2.0 (480 Mb/s) data rates
- Supports all USB device types transparently (no emulation) from high-speed Web cams, hard drives, printers, scanners, audio devices, touch screens, game controllers, and more
- Integrated 4-port hub in the receiver
- Compatible with all operating systems
- Applications: Corporate or educational presentations, financial (remote servers/user control), call centers, industrial (long-range workstation isolation), information terminals/kiosks, airport installations (air traffic control/passenger information), KVM Extension where very good quality signals is crucial, medical (remote operation away from sensitive/magnetic equipment), recording (for large studios where editing/mixing stations are compact and/or require complete silence)

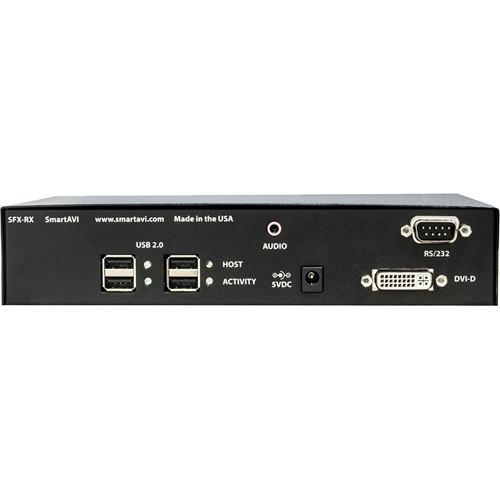

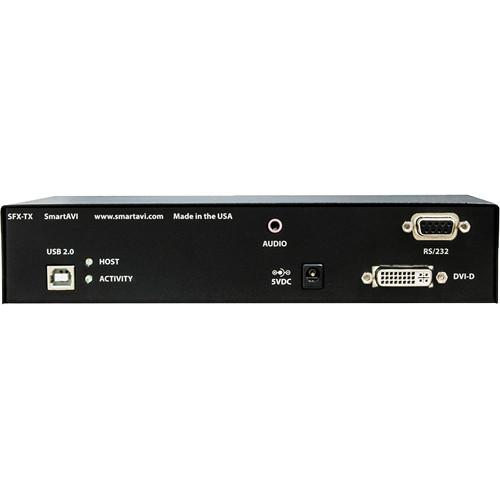

In the Box Smart-AVI SFX DVI-D, USB 2.0, Audio, & RS232 Fiber Extender SFX-TX Transmitter SFX-RX Receiver 2 x PS5VDC4A 5V, 4A Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI SFX DVI-D, USB 2.0, Audio, & RS232 Fiber Extender in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSmart-AVI SFX-M-S Specs | Format | Video: DVI-D single line | | Maximum Pixel Clock | Video: 165 MHz | | Interface | Video
Input (Transmitter): 1 x DVI-D 29-pin female
Output (Receiver): 1 x DVI-D 29-pin female
USB
Input (Transmitter): 1 x USB type B (female)
Output (Receiver): 4 x USB type A (female)
RS232
Input (Transmitter): DB9 female
Output (Receiver): DB9 male | | Resolution | Video: Up to 1920 x 1200 @ 60 Hz | | DDC | Video: 5 Vpp (TTL) | | Input Equalization | Video: Automatic | | Cable Length | Video
Input: Up to 20.0' (6.1 m)
Output: Up to 20.0' (6.1 m) | | Signal Type | USB: EHCI (USB 2.0) and OHCI/UHCI (USB 1.1)
Audio: Stereo audio | | Bandwidth | Audio: 15 MHz, 0 dB | | Impedance | Audio: 10 kΩ | | Connector | Audio: 3.5 mm stereo mini female | | Speed | RS232: Up to 115 kb/s | | Fiber | Optical: Duplex, multi mode | | Connector Type | Optical: Duplex LC | | Wavelength | Optical: 1,310 nm/1,550 nm (dual wavelength) | | Data Rate | 2 x 2.5 Gb/s (2.5 Gb/s per single wavelength) | | Transmission Power | Optical: -5 dB (minimum) | | Receiver Sensitivity | Optical: -21 dB (maximum) | | Distance | Optical: Maximum 1,640.42' (500.00 m) | | Power | Internal 100 to 240 VAC /5 VDC, 4 A @ 20 W | | Temperature | Operating: 32 to 131°F (0 to 55°C)
Storage: -4 to 185°F (-20 to 85°C) | | Humidity | Up to 95% | | Dimensions (W x H x D) | 8.50 x 1.85 x 5.38" (215.9 x 46.99 x 136.65 mm) | | Weight | 1.50 lb (0.68 kg) |
