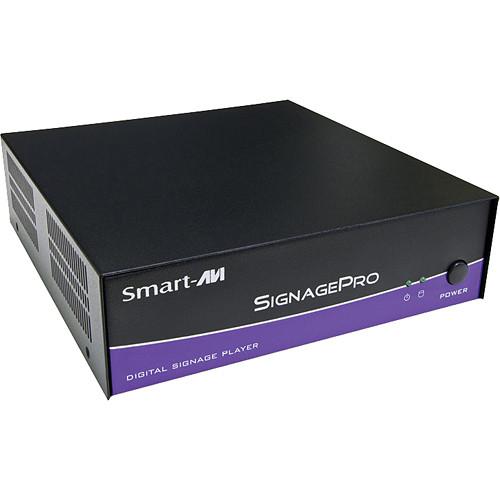

User Manual for Smart-AVI SignagePro-E Player with 40GB Hard Drive Click to enlarge the picture
Contents of the user manual for the Smart-AVI SignagePro-E Player with 40GB Hard
- Product category: Digital Signage Players Smart-AVI
- Brand: Smart-AVI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Smart-AVI Digital Signage Players
 |
User manual for the Smart-AVI SignagePro-E Player with 40GB Hard contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Smart-AVI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Smart-AVI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Smart-AVI product will considerably shorten its lifespan!
|

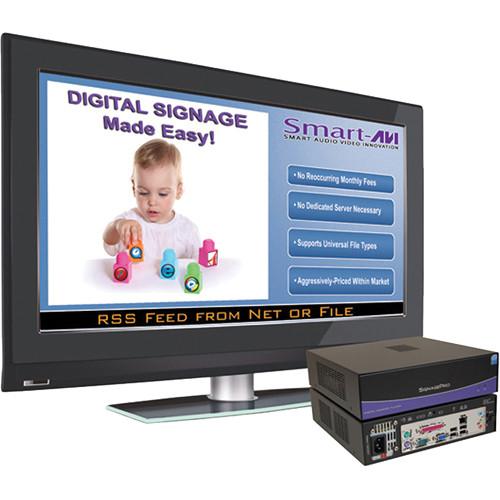

Product description The SignagePro-E Player with 40GB Hard Drive from Smart-AVI is designed for compact digital signage installations. It supports common media files and features a DVI output for use with high-resolution displays. This hardware can be combined with a monitor, touchscreen, mouse, or keyboard to form a complete signage solution. Its size makes it well suited for use in compact spaces such as airplanes, buses, trains, elevators, or temporary digital signage locations. This solution connects to an IP network to allow for remote management, control, and broadcast. Both the hardware and Windows-based software required to run this solution are included. With the software, you can schedule when and for how long a particular file will play and be displayed on your monitors. There is also a multi-zone feature letting you display multiple files on a single monitor. In addition to multi-zone, the control software comes pre-loaded with 30 optional templates to get your presentations up and running. - Main Features
-
- Compact, lightweight design
- Designed for Mobile Digital Signage Screens
- 40GB hard drive
- Supports common media files, including QuickTime, JPG, GIF, AVI, MPEG, Flash, PowerPoint, and MP3
- Windows-based control software
- 30 screen layout templates
- Multi-zone capability
- Supports RSS Feeds
- Wireless configuration/control
- Wireless of 3G network programmable
- External power supply included
In the Box Smart-AVI SignagePro-E Player with 40GB Hard Drive Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI SignagePro-E Player with 40GB Hard Drive in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSmart-AVI SignagePro Specs | Processor | Integrated Single-core Intel Atom, passively cooled
N270 with 533 MHz system bus
512 kb L2 cache
Chipset:
Intel 82945GSE Graphics and Memory Controller Hub (GMCH)

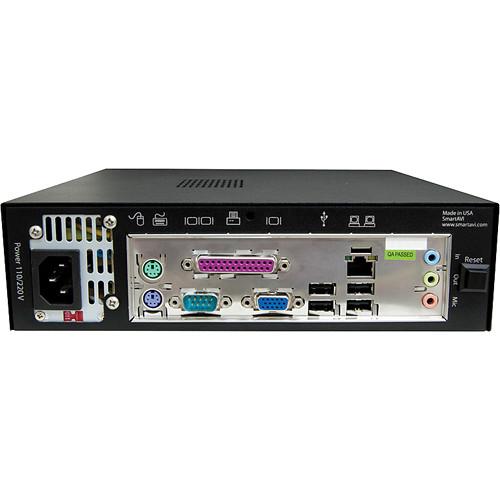

Intel 82801GBM I/O Controller Hub (ICH7-M) | | Memory | 1 x 200-pin DDR2 SO-DIMM connector
Support for DDR2 533 MHz DIMMs (DDR2 800 MHz and 667 MHz validated at 533 MHz) Support for up to 2 GB of system memory | | Hard Drive | 40GB hard drive | | Audio | Realtek ALC662 codec for 2+2ch (multi-streaming) Intel HD Audio
Front Panel microphone/headphone header
S/PDIF digital audio header
Internal mono speaker header | | Video | Intel Graphics Media Accelerator 950 dual-onboard graphics
1 x VGA
1 x DVI-D | | I/O Control | 1 x RJ45, Realtek 10/100/1000 Ethernet Controller
3 x USB 2.0 ports
2 x Serial ATA 3.0 GB/s connector (supporting IDE and AHCI)
1 x Power header for storage devices
1 x Parallel ATA port (44-pin mobile header) | | Power | 12 VDC external power jack
ATX 12V 2 x 2 power connector for alternate internal power supply | | Dimensions (HxWxD) | Mini-ITX form factor: 6.7 x 6.7 x 8.38" (170.0 x 170.0 x 20.0 mm)
Board z-height: 0.8" (20 mm) | | Weight | Not specified by manufacturer |
