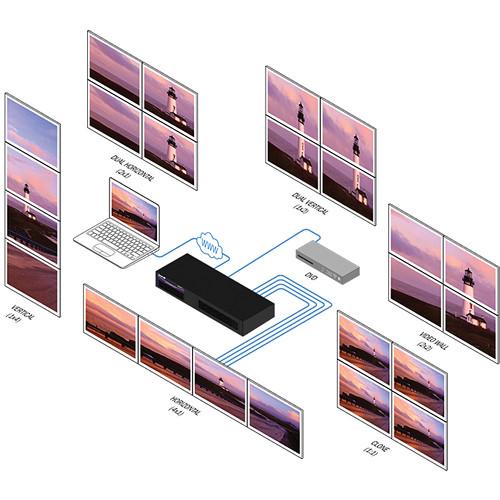

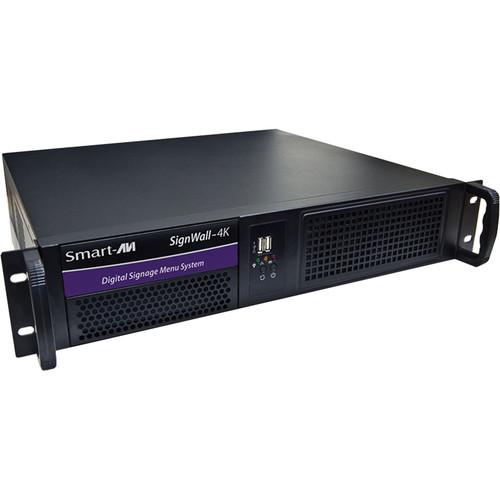

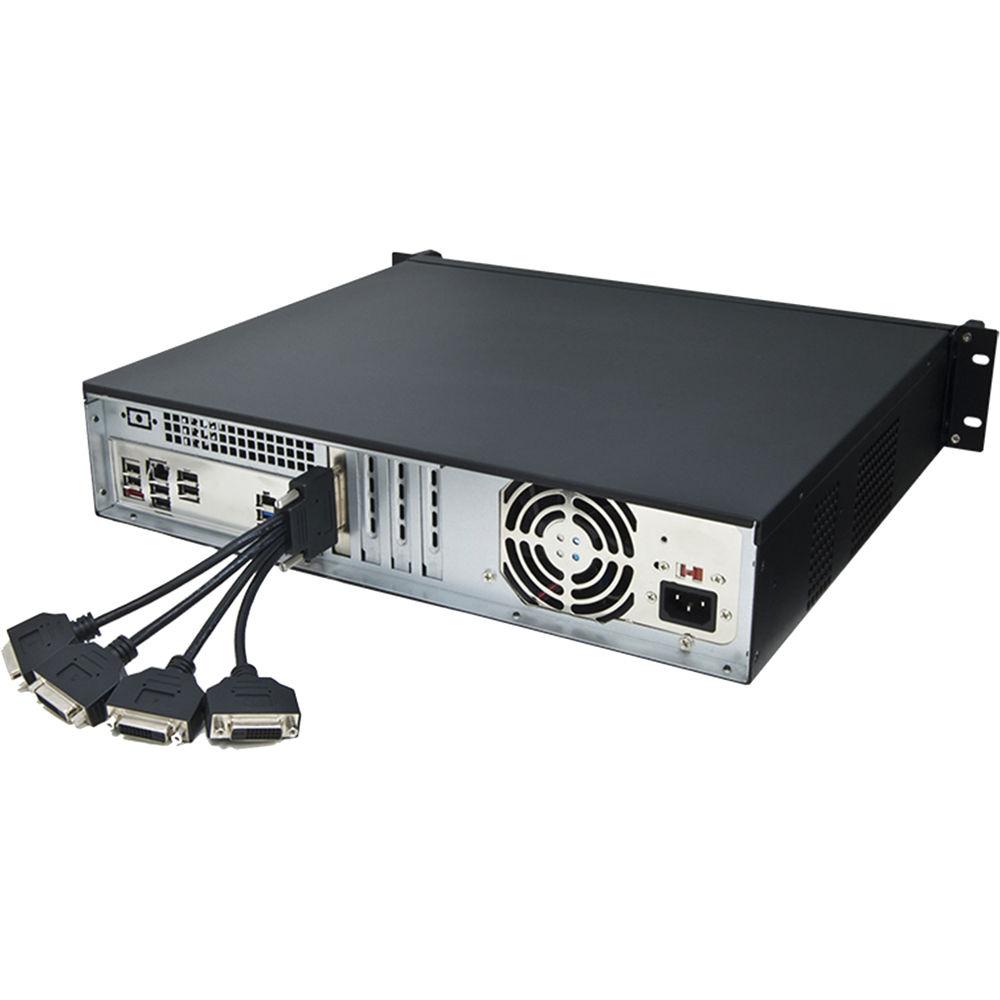

Product description The 2 RU SignWall-4K Controller for Video Wall and Digital Signage from Smart-AVI delivers full UHD 4K resolution with support for multiple streams of real-time video content. The controller features one Mini DisplayPort and four HDMI outputs. You can route various sources to up to four different screens and select different screen configurations. You can manage live HTML5 widgets within any of the customizable zones. The SignWall-4K features a 4K/2K HD video quality with live video capture and desktop sharing capabilities. The controller is easy to set up and manage over the internet. You can run multiple widgets and screens at once, and view RSS feed displays. The SignWall-4K controller is ideal for use in airports, malls, control rooms, schools, colleges, and universities. It can also be used for videoconferencing, in casinos, corporate lobbies, restaurants, and similar venues. - Supports Ultra HD 4K video
- Includes video capture to display live video feeds and web cams
- Controls up to four screens
- Schedules automatic content changes
- Fully customizable display options and preconfigured templates
- Full emulation at every computer
- Plug-and-play for quick and easy installation
In the Box Smart-AVI SignWall-4K Controller for Video Wall and Digital Signage (2 RU) CCPW06 Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI SignWall-4K Controller for Video Wall and Digital Signage in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSmart-AVI 4K-SVWP-120G7S Specs | | | GPU | AMD Radeon HD7750 | | GPU Cores | 800 MHz core clock | | Video Memory | 2 GB GDDR5 | | Memory Clock | 1125 MHz GDDR5 (128-bit) | | API Supported | OpenGL 4.2 / OpenCL 1.2 / DirectX 11.1 | | BUS | PCI Express 3.0 compliant, x16 | | Cooler | FAN sink cooler (single slot) | | Board Size | Full height, half-length size | | HDMI | Connectivity: Up to 10M tested | | Maximum Resolution | 7680 x 4320 (landscape); four 3840 x 2160 UHD HDMI/monitors; 8K display
3840 x 8640 (portrait); four 3840 x 2160 UHD HDMI/monitors rotate19200 x 2160 Surround View (landscape); five 3840 x 2160 UHD HDMI/monitors | | | | Video Display Output | 4 x HDMI, UHD 4K (active 3840 x 2160)
1 x Mini DisplayPort V1.2 | | Audio | 1 x 3.5 mm mini jack | | USB | 2 x USB 3.0
2 x USB 2.0 | | Firewire | IEEE 1394a | | Network | 1 x RJ45 | | | | Live Capture HD Input | 1080p60
HDMI, DVI, YPbPr
LPCM via HDMI
Compatible with CVBS and S-Video | | Hardware Color Conversion | Output RGB24, RGB32, YUY2, UYVY, I420 | | De-Interlace | Vertical blend and motion adaptive | | | | Motherboard | Intel BOXDP67DEB3 LGA 1155 Intel P67 SATA 6 Gb/s USB 3.0 Micro ATX Intel | | Processor | Intel Core i7-2600 Sandy Bridge 3.4 GHz (3.8 GHz Turbo Boost) LGA 1155 95 W QuadCore | | RAM | G.SKILL Ripjaws X Series 4 GB (2 x 2 GB) 240-Pin DDR3 SDRAM DDR3 1333 (PC310666) | | Storage | SanDisk Ultra SDSSDH-120G-G25 2.5" 120 GB SATA II internal SSD | | Operating System | Windows 7 | | Onboard Video | Intel HD Graphics 2000 PCI-E | | Onboard Memory | 3 GB DDR3, 160 MHz of working frequency, 32-bit | | Inputs | 1 x HDMI, DVI
1 x 9-pin D-Sub, video | | Max. Sampling Rate | CVBS: 54 MHz (4x oversampling)
HDMI/DVI: 225 MHz | | YPbPr Input | 1080p, 1080i
720p
576p, 576i
480p, 480i | | DVI Input | 1080p, 1080i
720p
576p, 576i
480p, 480i | | HDMI Input | Up to HDMI 1.3 standard, supports 36-bit Deep Color | | CVBS Input | Standard PAL/NTSC | | | | Operating Temperature | 35 to 96°F / 1.7 to 35.6°C | | Storage Temperature | -20 to 140°F / -28.9 to 60°C | | Power | Internal, 100 - 240 VAC, 50/60 Hz, 500 W | | Dimensions | 17 x 3.5 x 15" / 43.2 x 8.9 x 38.1 cm |
