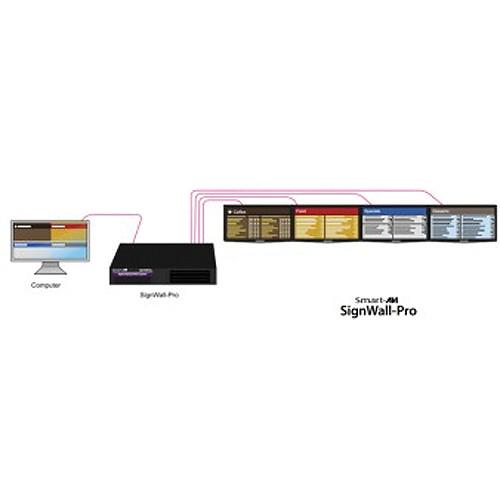

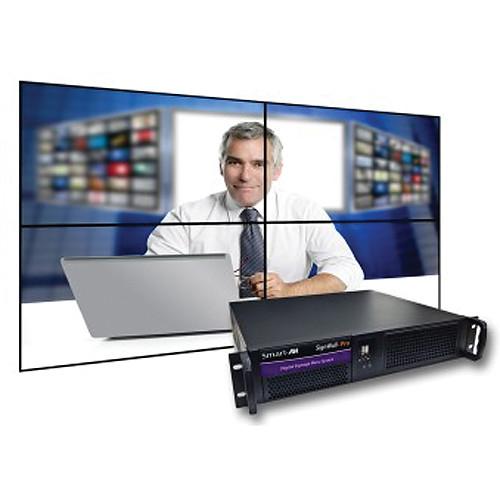

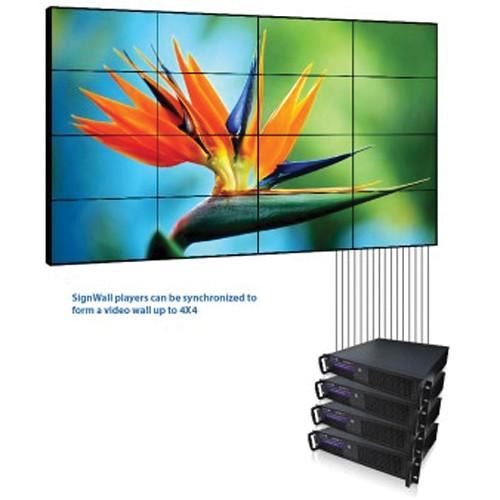

Product description The Smart-AVI SignWall-Pro digital signage player, from Smart-AVI is a highly-customizable video wall and digital signage solution supporting common media files and real-time video content directly from your cable box, camera, and local network.
SignWall-Pro allows you to present content with numerous visual elements, in various arrangements. It supports 1080p HD video quality and offers live video capture and desktop sharing capabilities. You can manage live HTML 5 widgets within any of SignWall-Pro's customizable zones. Keep your audience informed by adding a live ticker with news from your company or favorite news site. Enjoy RSS feed display capabilities. The SignWall-Pro is simple to set up and customizable to your business needs, and you can run multiple widgets and screens at once.
SignWall-Pro supports your existing media, so you can just load your desired files as they are. You also get the flexibility to arrange the layout of your display screens in various configurations, and if you're in a rush you can change the layouts on the fly using built-in templates. Setup is simple: choose your content, customize your layout, and set a schedule, all in the included SignageManager Software. You can have your content show up at the exact time of day, day of the week, or other time frame you want.
The capability to incorporate live video content coming directly from a cable box, camera, or local network means that you can display a TV program or sports game side-by-side with your loaded content, and a live camera feed for security surveillance. Just plug in whatever live feed you want to use and place it anywhere you like within the layout of your content, and each stream of content can be in up to Full HD 1080p.
SignWall-Pro is built with components from trusted brands, such as AMD, Intel, and NVIDIA, so it'll be easy to upgrade and repair. - Supported Media
- - HD Video (MPEG/AVI)
- Live Capture Video
- Excel
- PowerPoint
- PDF
- HTML
- Flash
- QuickTime
- RSS News Feeds
- HTML5 Widgets
- Multi-Layout Capabilities
- Images (JPEG/GIF)
- Image Backgrounds - Live Capture HD Input
- 1080p/60 Hz:
- Capture HDMI, DVI, YPbPr
- Capture LPCM audio signal via HDMI
- Switch signal dynamically, DVI/HDMI, YPbPr
- Compatible with CVBS and S-Video
- Supports auto-detection of input video format and valid area of video
- Support for multi-stage image zoom
- Supports color adjustment, image brightness, contrast, hue, saturation, Gamma, RGB brightness - Airports
- Whether you are advertising or trying to direct travelers to their correct flight, SignWall-Pro will let you have dynamically changing content presented in an attractive, easily organized manner.
- Malls
- SignWall-Pro will let you stand out and catch the attention of your customers among the thousand stores in the mall.
- Control Rooms
- SignWall-Pro provides a simple way to set up a video surveillance control room with screens large enough that you can prevent issues ahead of time.
- Schools, Colleges, and Universities
- Set up a SignWall-Pro in the quad and make sure everyone is up to date on upcoming events and activities? Simultaneously entertain, connect with, and educate your student body.
- Mass Video Conferencing
- SignWall-Pro allows for mass video conferencing with the convenience of seeing everyone in life-size or larger.
- Corporate Lobbies
- Impress people in the very first seconds they enter your office. SignWall-Pro can be used to create engaging corporate presentations to run in the lobby of your office.
- Restaurants
- Display a sizzling steak or tasty cocktail for your customers to see as they wait, or even as soon as they enter.
UPC: 813280016360 In the Box Smart-AVI SignWall-Pro with Capture Card AP-SNW-SW SignWare Manager Software eexuuqdrszyqxvsvbdrweqzbswtautsw Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI SignWall-Pro with Capture Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSmart-AVI AP-SVWP-120G5S Specs | Supported Image Formats | JPG, GIF, Animated GIF | | Supported Video Formats | AVI, WMV9, MPEG-2 PS, MPEG-1, MPEG-2 MP@ML, MPEG-4.2 ASP, MPEG-4.10/H.264, MP@L3.0 | | Supported Audio Formats | MPEG-1 Layer I, II, MPEG-4 AAC | | Supported Applications | Excel, PowerPoint, PDF, HTML, Flash, QuickTime, RSS | | GPU | AMD Radeon 5570 GPU @ 650 MHz | | Memory | High speed DDR3 Memory | | Resolution | Up to 1920 x 1200 @ 60 Hz
Standard Digital
7680 x 1080 (2x2) Eyefinity mode
1920 x 4320 (1x4) Eyefinity mode
5760 x 1080 (1x3) Eyefinity mode

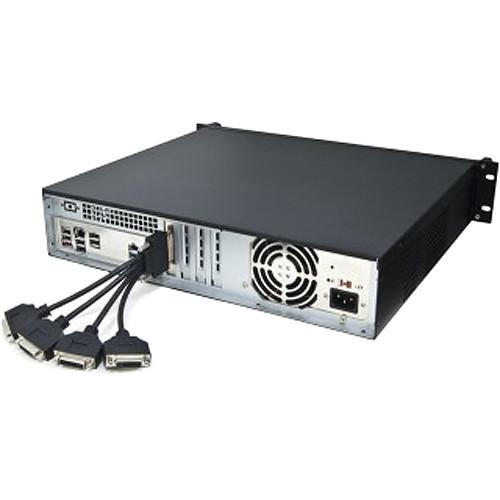

1920 x 3240 (3x1) Eyefininity mode | | Connections | 1x HDMI input
1x DB9 input (to YPbPr, S-Video, CVBS, 1x unbalanced stereo audio line in)
2x USB 2.0 interfaces
2x USB 3.0 interfaces
1x FireWire IEEE 1394a interface
1x Network RJ-45 Gigabit | | Sampling Rate | CVBS: 54 MHz (4x Oversampling) HDMI/DVI: 225 MHz | | Hardware Color Conversion | Output RGB24, RGB32, YUY2, UYVY, I420 | | De-Interlace | Vertical Blend and Motion Adaptive | | Motherboard | Intel BOXDP67DEB3 LGA 1155 Intel P67 SATA 6GB/s USB 3.0 Micro ATX | | Processor | Intel Core i5-2400 Sandy Bridge 3.1 GHz (3.4 GHz Turbo Boost) LGA 1155 95 W Quad Core | | RAM | G.SKILL Ripjaws X Series 4 GB (2 x 2 GB) 240-pin DDR3 SDRAM DDR3 1333 (PC3 10666) Desktop Memory | | Storage | SanDisk Ultra SDSSDH-120G-G25 2.5" 120 GB SATA II Internal Solid State Drive (SSD) | | Operating System | Windows 7 | | Video Card | Intel HD Graphics 2000 PCI-E | | Onboard Memory | 3 GB DDR3, 160 MHz of working frequency, 32-bit wide | | YPbPr Input Mode | 480i, 576i, 480p, 576p, 720p, 1080i, 1080p | | HDMI Input Mode | Up to HDMI 1.3 standard, support 36-bit Deep Color | | CVBS Input | Standard PAL/NTSC | | Power | Internal 100-240 VAC, 50-60 Hz, 500 W | | Operating Temperature | 35 to 96°F (1.7 to 36°C) | | Storage Temperature | -20 to 140°F (-29 to 60°F) | | Dimensions | 17 x 3.5 x 15" (43 x 9 x 38 cm) | | | | Package Weight | 21.0 lb | | Box Dimensions (LxWxH) | 22.3 x 20.5 x 7.0" |
