User Manual for Smart-AVI SignWare Player with 4GB Flash Memory & Power Supply Click to enlarge the picture
Contents of the user manual for the Smart-AVI SignWare Player with 4GB Flash
- Product category: Digital Signage Players Smart-AVI
- Brand: Smart-AVI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Smart-AVI Digital Signage Players
 |
User manual for the Smart-AVI SignWare Player with 4GB Flash contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Smart-AVI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Smart-AVI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Smart-AVI product will considerably shorten its lifespan!
|

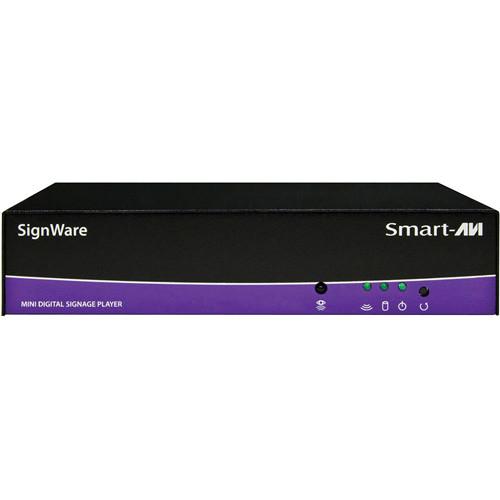

Product description The Smart-AVI SignWare Player with 4GB Flash Memory & Power Supply is a digital signage player that allows world-wide transfer of display content via internet. Using a central server positioned at a remote location, you can control the transfer among various SignWare players connected in the network. For live feeds, continuous internet connection is essential while in case of recorded data, you can disconnect the connection once the data has been delivered. Equipped with SignWare software, the SignWare Player displays video, images, and RSS information, and supports formats such as AVI, WMV, GIF, and JPG. It transmits high-quality 720p HD video combined with stereo audio. You can schedule the display content to ensure that the right information appears at the desired time. By splitting the screen into different zones, you can simultaneously display a mix of several media types including images, videos, and RSS feeds. On the server, you can view the contents, which is displayed via different SignWare players across the network; you can also keep a record of transfers done between the players. With the Windows-based interface of the SignWare Player, you can create presentations in quick time. Manufactured in the USA, the SignWare player (4GB) can be easily configured on the network. It comes with a power supply unit (PS12VD2A), and is ideal for use in malls, corporate trainings, and large buildings and campuses. - Allows world-wide transfer of display content via internet
- Using a central server positioned at a remote location, you can control the transfer between various SignWare players connected in the network
- For live feeds, continuous internet connection is required while in case of recorded data, you can disconnect the connection once the data has been delivered
- Displays video, images, and RSS information
- Supports formats such as AVI, WMV, GIF, and JPG
- Transmits high-quality 720p HD video combined with stereo audio
- Allows you to schedule the display content to ensure that the right information appears at the desired time
- By splitting the screen into different zones, you can simultaneously display a mix of several media types including images, videos, and RSS feeds
- On the server, you can view the contents being displayed via different SignWare players across the network and create a record of transfers done between players
- Can be easily configured on the network
- Windows-based interface - can be used to create presentations in QuickTime
- Comes with a power supply unit (PS12VD2A)
- Ideal for use in malls, corporate trainings, and large buildings and campuses
UPC: 813280015394 In the Box Smart-AVI SignWare Player with 4GB Flash Memory & Power Supply Power Supply (PS12VD2A) 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI SignWare Player with 4GB Flash Memory & Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

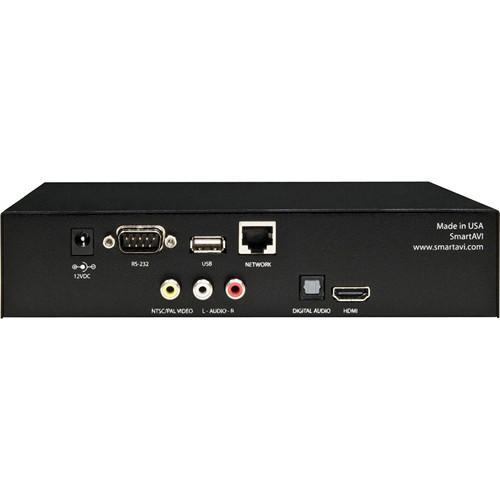

Technical parametersSmart-AVI AP-SNW-4G Specs | Supported Formats | Image: JPEG, GIF
Video: AVI, WMV9, MPEG-2 PS, MPEG-1, MPEG-2 MP@ML, MPEG-4.2 ASP, MPEG-4.10/H.264, MP@L3.0
Audio: MPEG-1 Layer I, II, MPEG-4 AAC | | Video Resolution | Up to D1 (720x576 PAL and 720x480 NTSC via composite), 480 and 720p via HDMI | | Video Connector | Stereo RCA, S/PDIF | | USB | x2 (USB 2.0) | | Infrared | IR Receiver | | Network | RJ-45 10/100 | | Storage | 4GB USB Flash | | Operating System | Linux | | Power | 12 VDC | | Operating Temperature | 35 ~ 96°F (2 ~ 36°C) | | Dimensions (LxHxD) | 6 x 1.3 x 4.5" (152 x 33 x 114mm) | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 12.7 x 9.6 x 3.3" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 29 owners. Add your rating and experience with the product.
