User Manual for Smart-AVI SignWare-Pro Digital Signage Player with 8GB Flash Memory Click to enlarge the picture
Contents of the user manual for the Smart-AVI SignWare-Pro Digital Signage Player with
- Product category: Digital Signage Players Smart-AVI
- Brand: Smart-AVI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Smart-AVI Digital Signage Players
 |
User manual for the Smart-AVI SignWare-Pro Digital Signage Player with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Smart-AVI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Smart-AVI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Smart-AVI product will considerably shorten its lifespan!
|

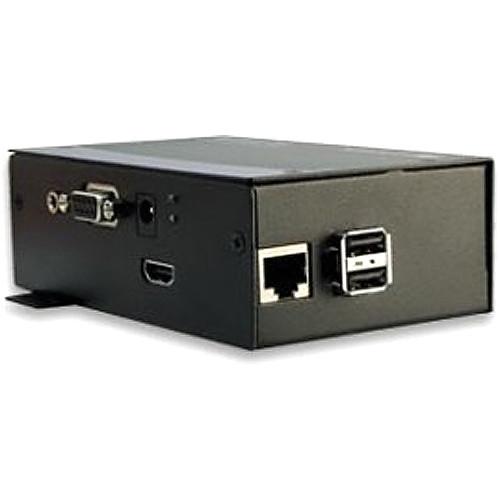

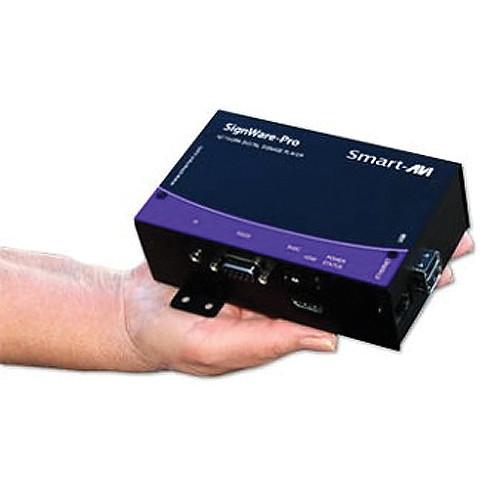

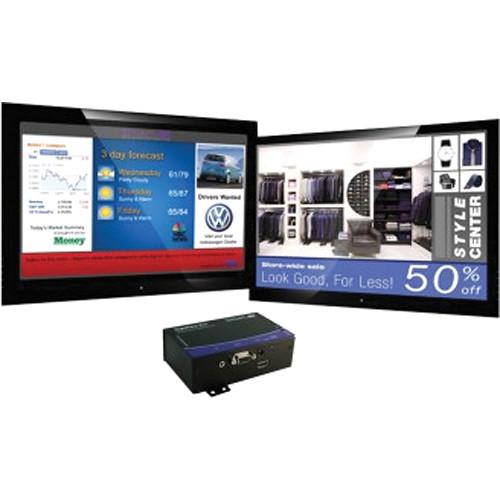

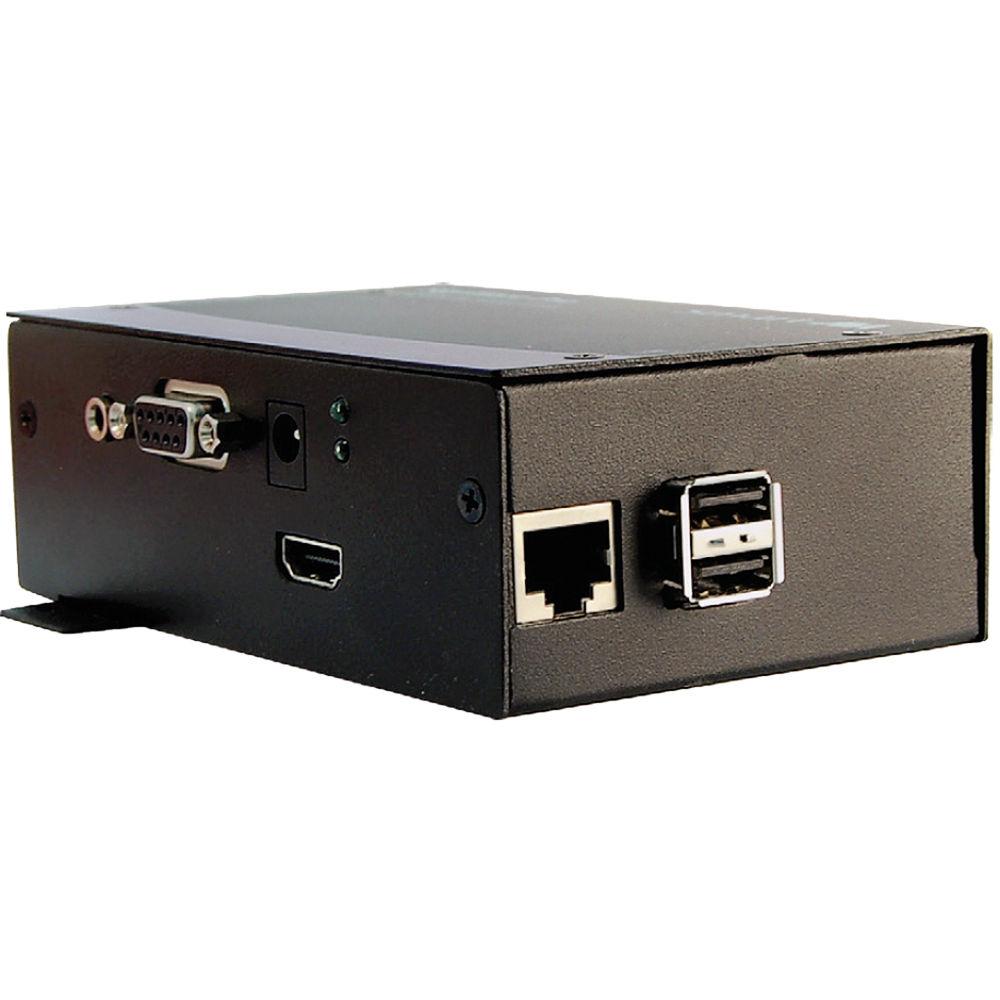

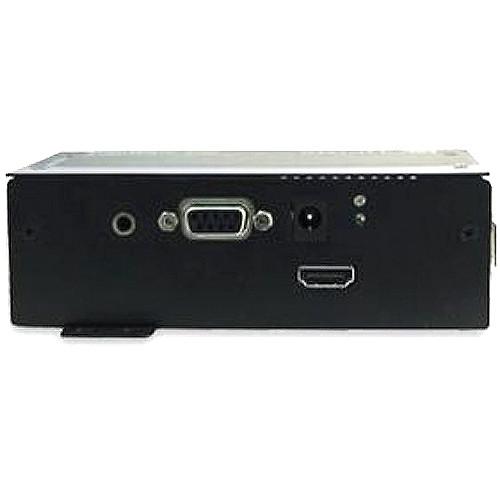

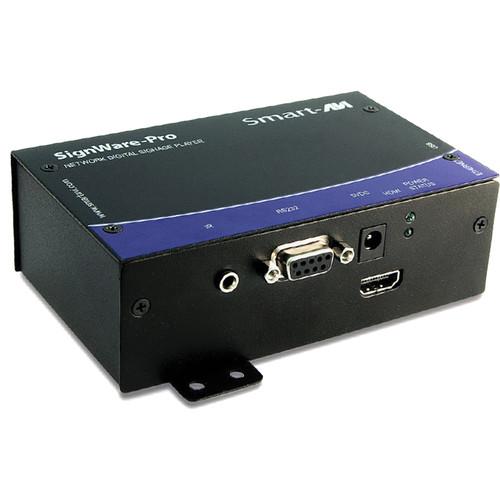

Product description The Smart-AVI SignWare-Pro Digital Signage Player with 8GB Flash Memory offers a combination of hardware and software that allow for an external PC to manage and control multiple remote display devices. The display screens can be simultaneously or independently administered from a central location using the SignWare manager software via a RJ45 Ethernet port. The player features an HDMI output with audio embedded capability as well as two USB ports. SignWare-Pro is capable of playing Live Text, RSS Feeds, Still Images, and HTML5 while maintaining resolutions of up to 1080p full HD. - Delivers HDTV 1080p resolution
- Supports common video formats
- RS232 control for remote devices
- Manager software included

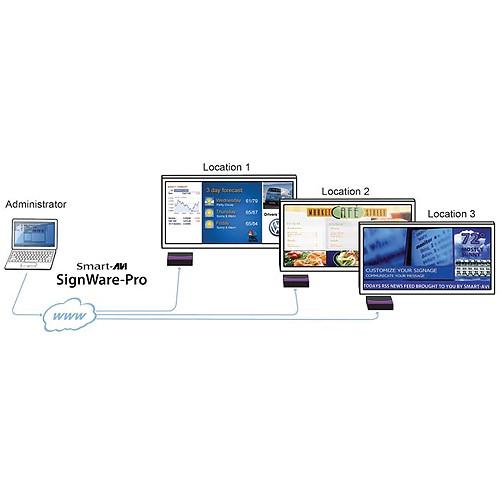

- Control multiple players remotely through WAN or LAN connection
- Create multimedia with pre-loaded customizable templates
- Add local or live RSS tickers for news and events
- Expandable digital signage network
UPC: 813280016346 In the Box Smart-AVI SignWare-Pro Digital Signage Player with 8GB Flash Memory Power Supply Signage Manager Software Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI SignWare-Pro Digital Signage Player with 8GB Flash Memory in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSmart-AVI AP-SNW2-8GS Specs | Supported Formats | Image: JPEG, BMP, PNG, GIF
Video: 1H264, MPEG1/2/4, VC1, AVS, MJPG, at 1080p30, VP6, VP7, VP8, RV, Theora, WMV9 at DVD resolutions
Audio: MP3
Scrolling Text
RSS | | Display Resolution | Up to 1920 x 1080, 60 Hz | | Software Driver | Windows based PC: Windows 7, Windows XP, or Windows 8 | | CPU | 700 MHz low power ARM1176JZ-F
Applications processor | | GPU | Dual Core VideoCore IV | | Processor Graphics | Dual Core VideoCore IV
512 MB SDRAM | | Ethernet | 1 x RJ45, 10/100 Ethernet | | USB 2.0 | 2 x USB Type A | | HDMI Output Connector | 1 x HDMI 1080p video (embedded audio) | | Serial | 1 x 9-pin Sub-D female, RS-232 | | IR Port | 1 x 3.5 mm phone jack, 38 kHz infrared | | LEDs | 1 x Power
1 x Status | | Power Supply | 5 VDC, 2A | | Onboard Storage | SD 8 GB | | Operating System | Linux | | Dimension (L x H x D) | 7.5 x 1.25 x 6.75" (19.1 x 3.2 x 17.1 cm) | | Weight | 2 lb (0.9 kg) | | | | Package Weight | 1.25 lb | | Box Dimensions (LxWxH) | 10.8 x 5.3 x 4.2" |
Rating20% users recommend this product to others. And what about you?
This product has already been rated by 03 owners. Add your rating and experience with the product.
