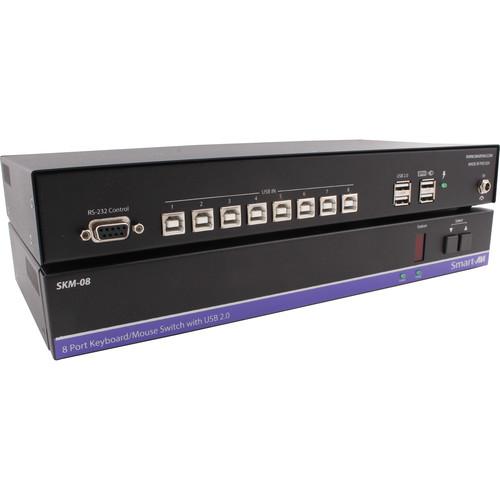

User Manual for Smart-AVI SKM-08S 8-port KM Switch with USB 2.0 Sharing Click to enlarge the picture
Contents of the user manual for the Smart-AVI SKM-08S 8-port KM Switch with
- Product category: KVM Switches Smart-AVI
- Brand: Smart-AVI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Smart-AVI KVM Switches
 |
User manual for the Smart-AVI SKM-08S 8-port KM Switch with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Smart-AVI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Smart-AVI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Smart-AVI product will considerably shorten its lifespan!
|

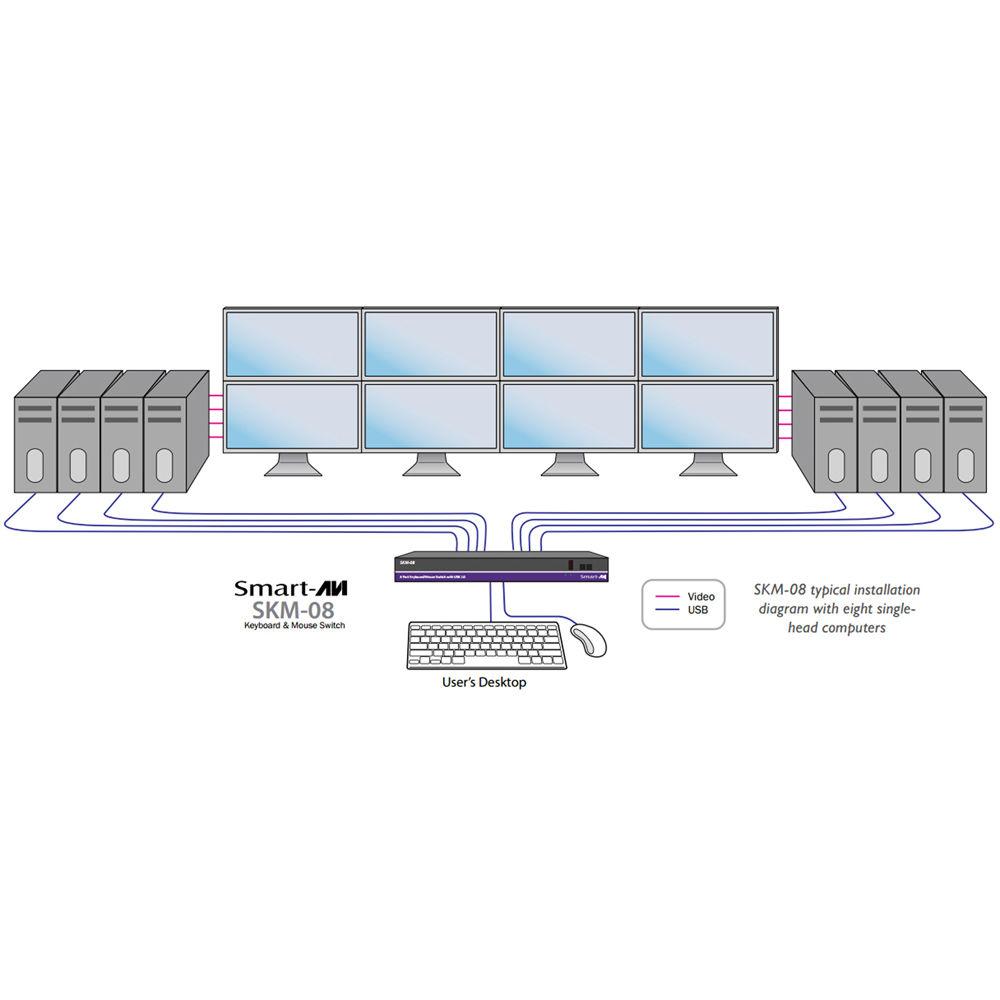

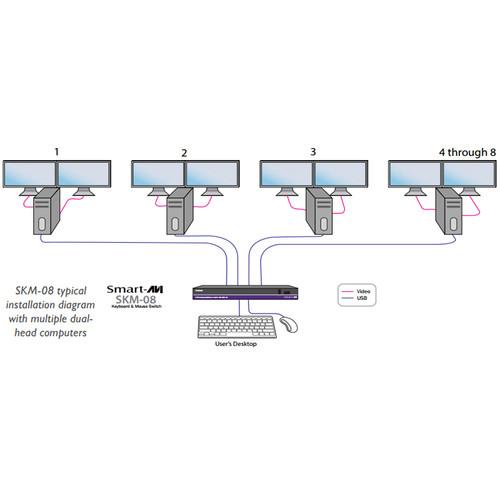

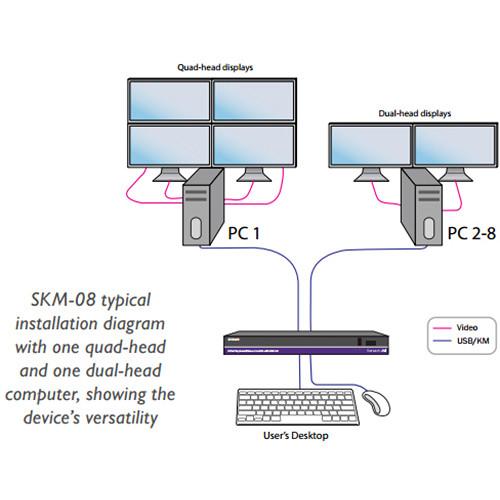

Product description Multi-Monitors: Maximizing Multitasking Read More The SKM-08S 8-port KM Switch with USB 2.0 Sharing from Smart-AVI enables users to manage and switch KM (keyboard and mouse) functions of eight connected computers, including computers with multiple displays. It can support multiple displays per computer, including eight 16-head computers or up to eight quad-head computers. The monitors connect directly to the computers, and the SKM-08S is then used to switch KM operation between computers. The switch is compatible with most computers and all major operating systems, and supports all USB 2.0 devices. The SKM-08S also features USB keyboard and mouse emulation, RS-232 control, mouse gesture switching, and progressive automatic screen switching. The switch also allows you to control KM functions on one computer while maintaining the connection of other USB peripheral devices on another connected computer. - Manage eight connected computers
- Dedicated processors for emulation
- Supports independent switching for USB 2.0 devices
- Full keyboard and mouse emulation

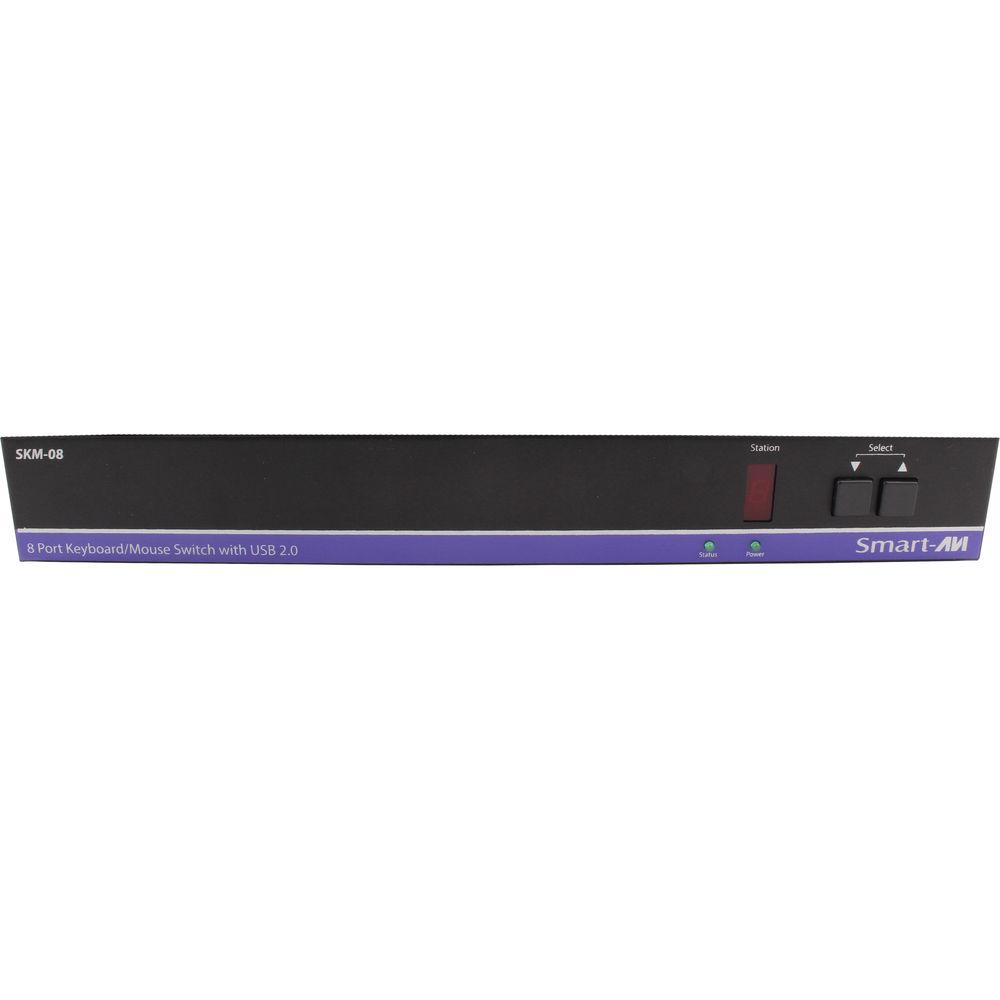

- Front panel switching and RS-232 control
- PASS (Progressive Automatic Screen Switching) technology for automatic switching following the mouse movement
In the Box Smart-AVI SKM-08S 8-port KM Switch with USB 2.0 Sharing Power Adapter Limited 1-Year Warranty Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI SKM-08S 8-port KM Switch with USB 2.0 Sharing in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Smart-AVI SKM-08S 8-port KM Switch with USB 2.0 Sharing can be downloaded in PDF format at the link stated below.

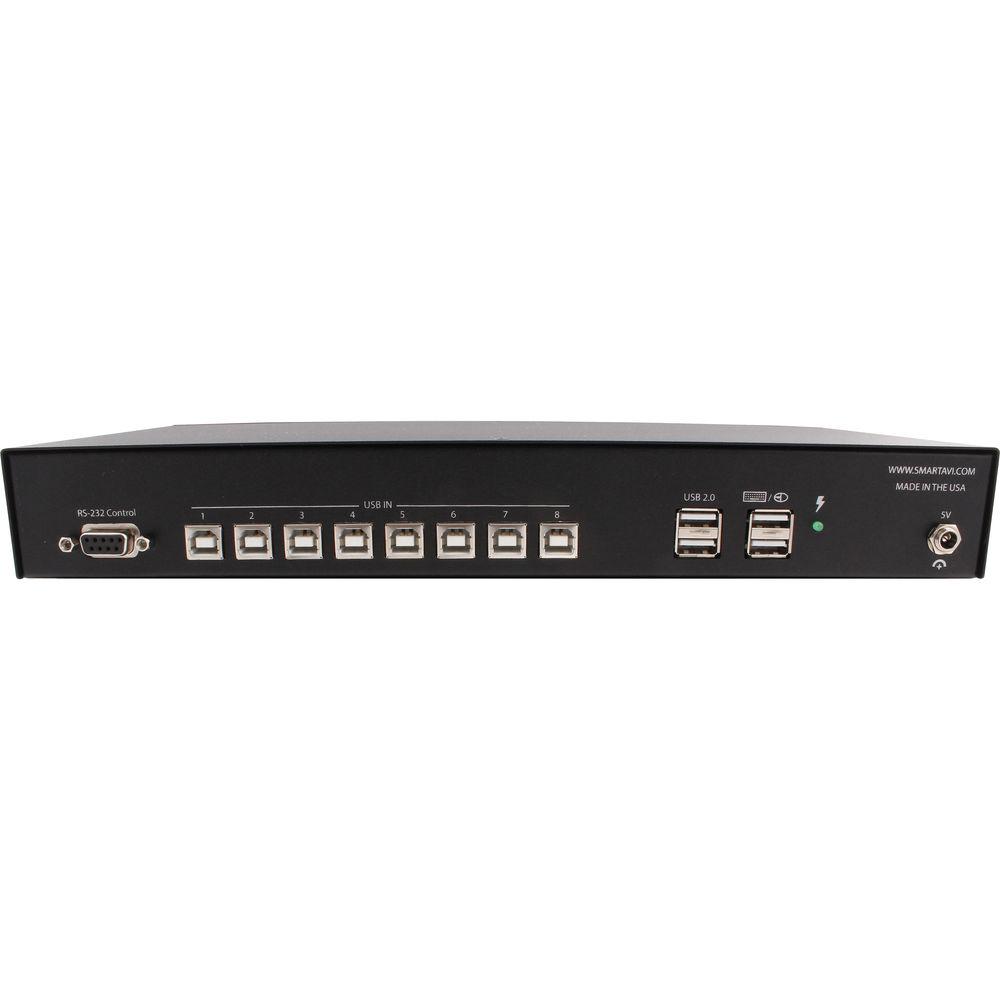

Technical parametersSmart-AVI SKM-08S Specs | Connections | 8 x USB Type B Female
2 x USB Type A for keyboard and mouse
2 x USB Type A for USB 2.0 transparent | | Control | Front Panel: tactile switch
RS-232: control @9600 bps
Hot Keys: keyboard
Mouse: PASS technology and Mouse Gesture switching | | USB | Signal Type: 2.0, 1.1, 1.0 with internal hub | | Power | External 5 VDC, 2 A @ 10 W | | Approvals and Compliance | UL, CE, ROHS compliant | | Operating Temperature | 32 to 131°F / 0 to 55°C | | Storage Temperature | -4 to 185°F / -20 to 85°C | | Humidity | Operating: -20 to 80% RH, non-condensing
Storage: 10 to 90% RH, non-condensing | | Dimensions | 12.6 x 1.8 x 6.6" / 32.0 x 4.4 x 16.8 cm | | Weight | 10.0 lb / 4.5 kg | | | | Package Weight | 2.55 lb | | Box Dimensions (LxWxH) | 12.8 x 9.6 x 3.1" |
