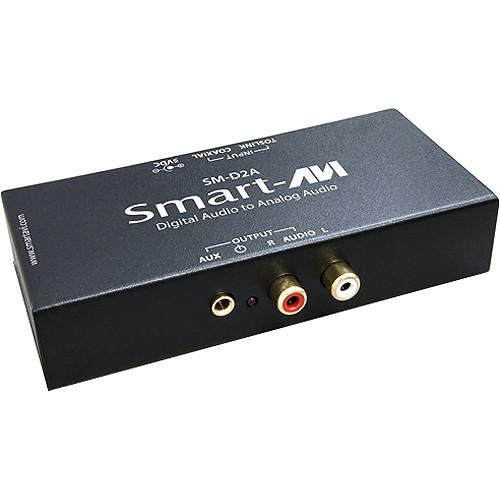

User Manual for Smart-AVI SM-D2A Digital to Analog Audio Converter Click to enlarge the picture
Contents of the user manual for the Smart-AVI SM-D2A Digital to Analog Audio
- Product category: Signal Converters Smart-AVI
- Brand: Smart-AVI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Smart-AVI Signal Converters
|
User manual for the Smart-AVI SM-D2A Digital to Analog Audio contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Smart-AVI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Smart-AVI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Smart-AVI product will considerably shorten its lifespan!
|
Product description The Smart-AVI SM-D2A Digital to Analog Audio Converter allows you to convert your digital audio sources into more conventional analog audio. It converts Coaxial or Toslink digital audio with 2 possible outputs, right/left RCA, and 3.5mm stereo audio. This allows you to connect your digital audio devices to a stereo receiver with RCA inputs or headphones. - Converts Coaxial or Toslink digital audio signals to analog R/L audio with an auxiliary 3.5mm jack
- Supports sampling rates at 32, 44.1, 48, and 96 kHz
- Supports dual-channel 24-bit S/PDIF
- Digital conversion with no noise
- Simple to install and easy to operate
- Applications include security, PC networking, conference center systems, point of sale, camera surveillance, video phone, control room systems, and recording studios
UPC: 813280019583 In the Box Smart-AVI SM-D2A Digital to Analog Audio Converter 5V 2A Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI SM-D2A Digital to Analog Audio Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSmart-AVI SM-D2A-S Specs | | | Signal Type | SPDIF Digital: DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD | | Sampling Rate | 32, 44.1, 48, and 96 kHz | | | | Inputs | 1 x TOSLink Optical
1 x SPDIF COAX (RCA) | | Outputs | 1 x Stereo Right/Left RCA (female)
1 x 3.5mm Stereo Audio(female) | | Frequency Response | Analog: 20 Hz to 20 kHz | | Impedance | 600 Ω | | Nominal Level | 0 to 1.0 V | | Common Mode Rejection | 60 dB | | | | Power | External: 100 to 240 VAC / 5 VDC, 2 A @ 10 W | | Operating Temperature | 32 to 131°F (0 to 55°C) | | Storage Temperature | -4 to 185°F (-20 to 85°C) | | Humidity | Up to 95% | | Dimensions (W x H x D) | 5.00 x 1.00 x 2.75" (127.00 x 25.4 x 69.8 mm) | | | | Package Weight | 0.9 lb | | Box Dimensions (LxWxH) | 7.717 x 5.276 x 4.331" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 57 owners. Add your rating and experience with the product.
