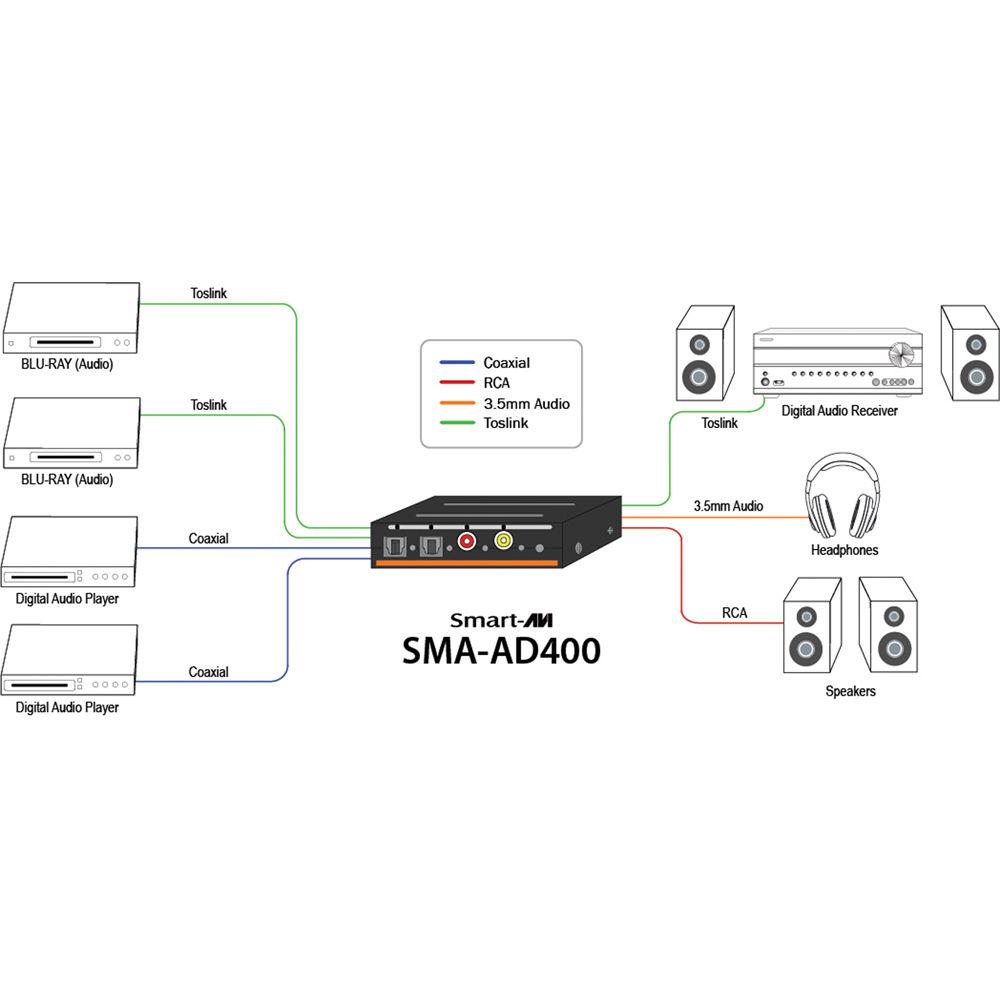

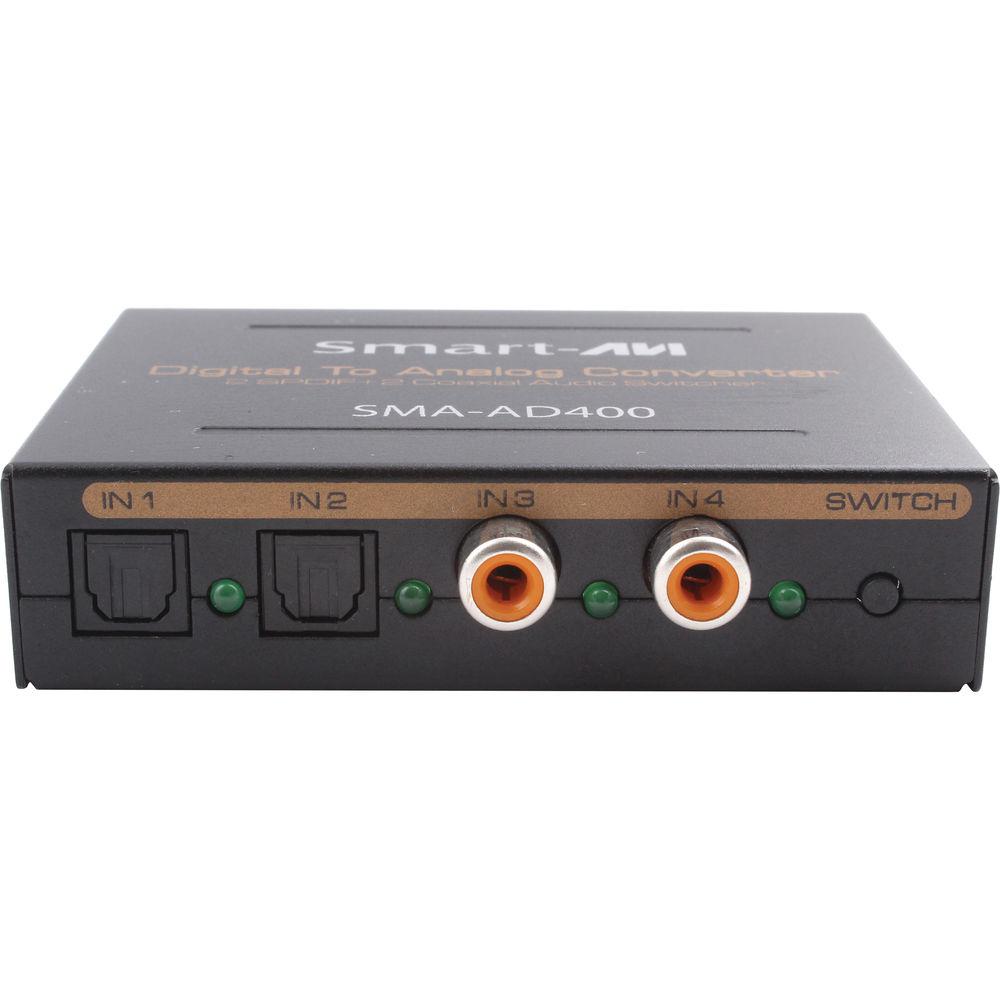

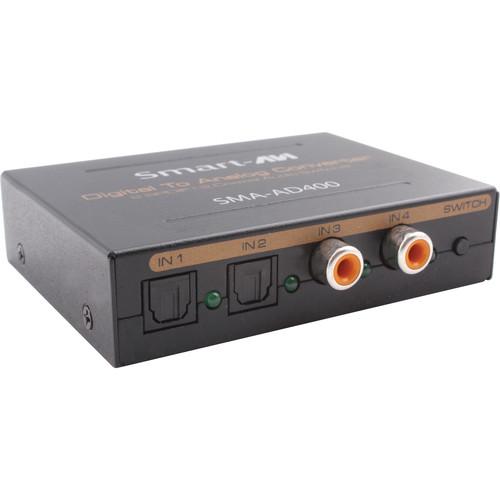

Product description The SMA-AD400 Digital Audio Switcher from Smart-AVI enables you to switch between four digital audio signals and convert the selected input signal to an analog stereo RCA output, an analog stereo 3.5mm output, and a S/PDIF digital output (TOSLINK connector). There are two TOSLINK and two coaxial digital audio inputs, each with an LED to indicate which input is selected. It is designed to make digital audio signals compatible with RCA and 3.5mm audio connectors, which are used in stereos, home theaters, PA systems, and more. A power supply is included. - Features
-
- Two TOSLINK digital audio inputs and two coaxial digital audio inputs

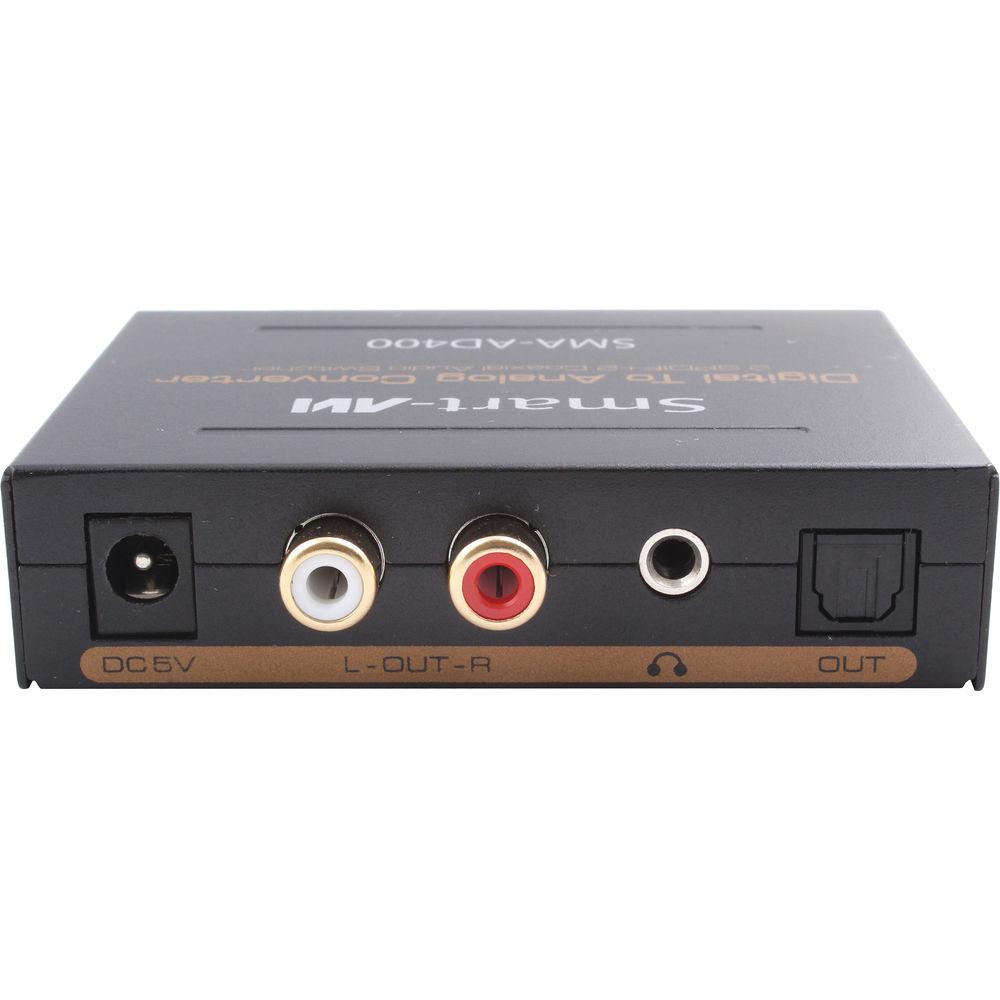

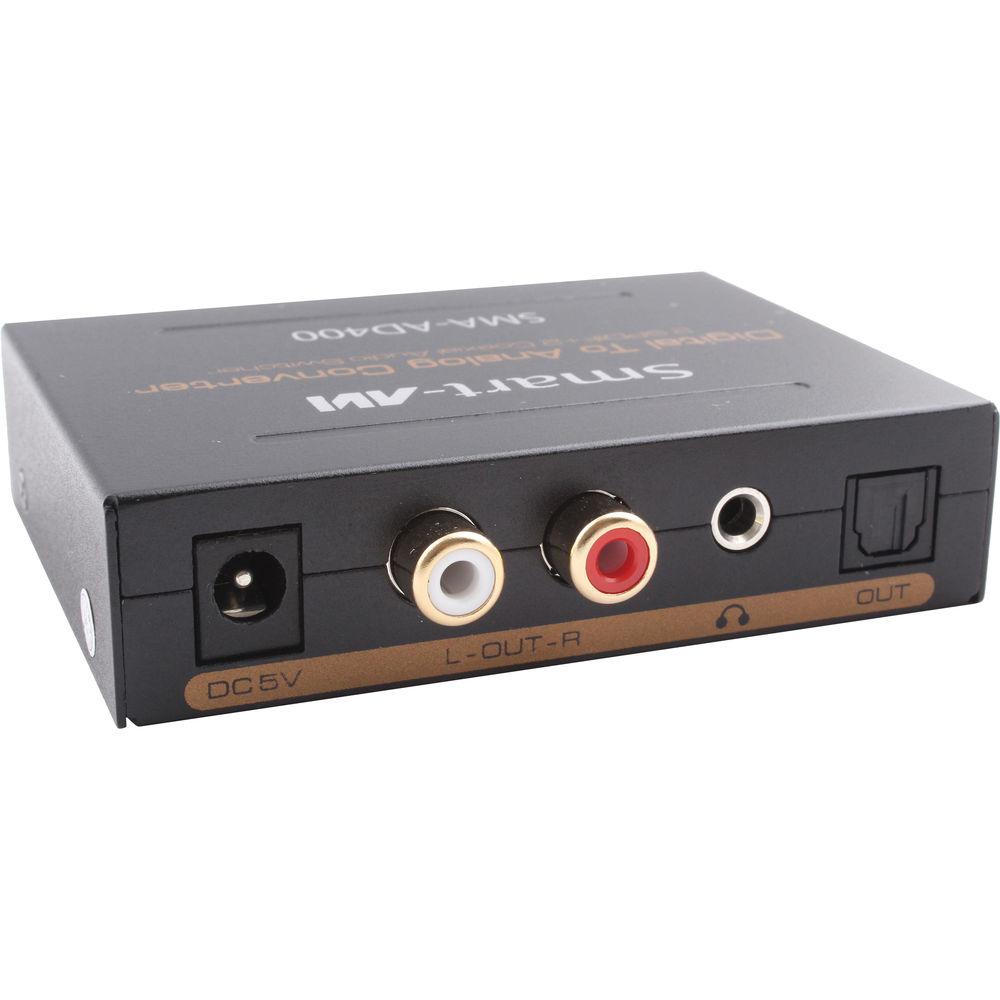

- One TOSLINK digital audio output, one RCA stereo output and one 3.5mm headphone output
- Supports 192 kHz / 24-bit DAC
- Supports Dolby AC3, DTS, THX, HDCD and LPCM for S/PDIF output
- Automatic identification of input signal format
- Input status indication for easy trouble shooting
- Applications
-
- Home theater
- Control rooms
- Production studios
- PA systems
- A/V presentations
- Meeting rooms

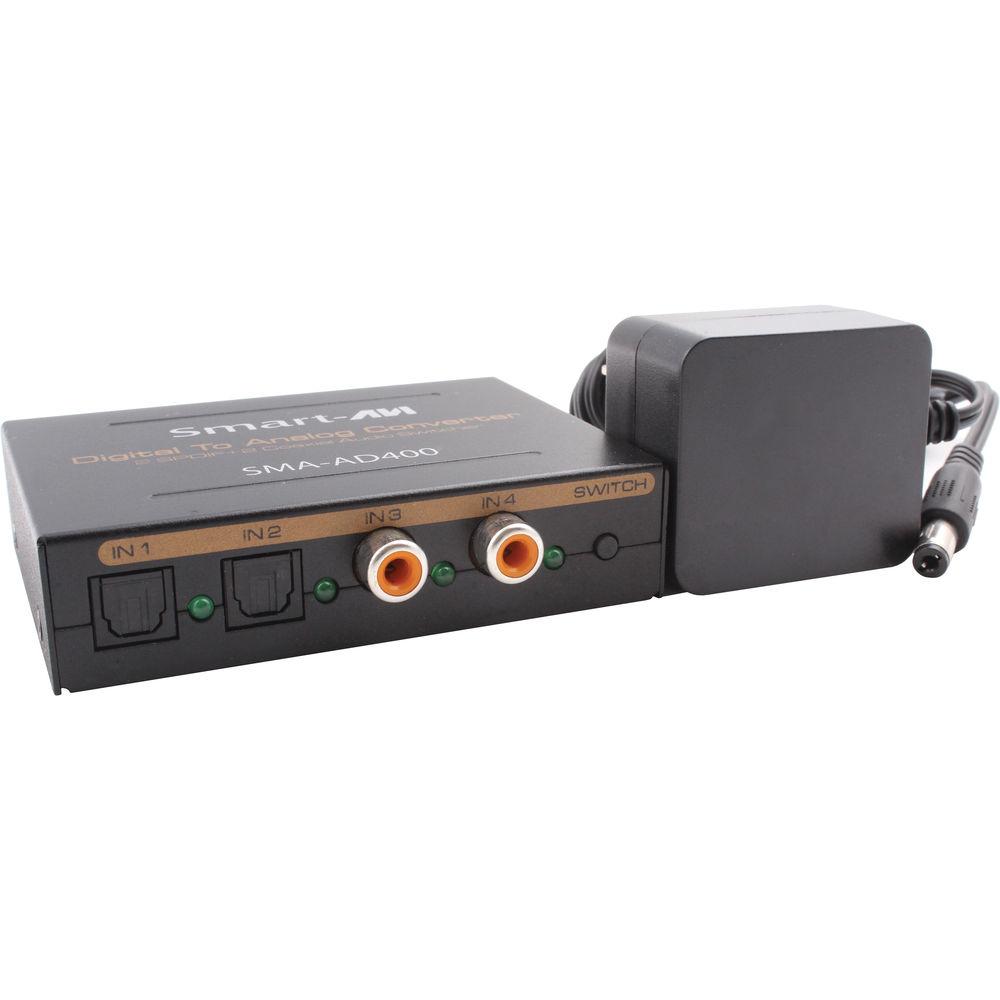

UPC: 813280023191 In the Box Smart-AVI SMA-AD400 4-Port Digital Audio Switcher with Integrated Analog Converter PS5V1A Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI SMA-AD400 4-Port Digital Audio Switcher with Integrated Analog Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSmart-AVI SMA-AD400S Specs | Digital Audio Input Connectors | 2 x TOSLINK (S/PDIF)
2 x Coaxial (S/PDIF) | | Audio Output Connectors | Digital: 1 x TOSLINK (S/PDIF)
Analog: 2 x RCA (L/R stereo); 1 x 3.5 mm jack (stereo headphones) | | DAC | Sample Frequency Range: 32 to 192 kHz
Bit-Rate Range: 16 to 24 bit | | Digital Input | 0.1 to 1 Vpp | | Frequency Response | 20 Hz to 20 kHz | | Supported Audio Codecs | S/PDIF Output: AC3, DTS, THX, HDCD, LPCM | | Audio Output Level | RCA (L/R): 1 Vrms; 1 kHz @ 0 dB | | Headphone Output Power | 30 mW, 1 kHz @ 0 dB, RL=32 | | SNR | 90 dB (CCIR/ARM) | | Distortion | 0.1% | | Working Current | 100 mA | | Power Supply | Input Voltage: 100-240 VAC, 50/60 Hz
Output Voltage: 5 VDC, 1 A | | Operating Temperature Range | 14 to 131°F (-10 to 55°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Humidity (Non-Condensing) | Operating: 10 to 90% RH
Storage: 5 to 95% RH | | Weight | 0.28 lb (0.13 kg) | | Dimensions (L x W x H) | 3.3 x 2.4 x 0.8" (8.4 x 6.1 x 2.0 cm) | | | | Package Weight | 0.6 lb | | Box Dimensions (LxWxH) | 6.0 x 4.7 x 2.3" |
