Product description The SMA-AM44S SPDIF Optical Digital Audio 4x4 Matrix Switch from Smart-AVI enables you to manage four digital audio input signals (SPDIF over fiber optics) across four digital audio outputs. The SMA-AM44 supports DTS-HD, Dolby-TrueHD, LPCM2.0, DTS, Dolby-AC3, and DSD audio formats. - Four SPDIF fiber optic inputs and four SPDIF fiber optic outputs
- Supported formats: DTS-HD, Dolby-TrueHD, LPCM2.0, DTS, Dolby-AC3, and DSD

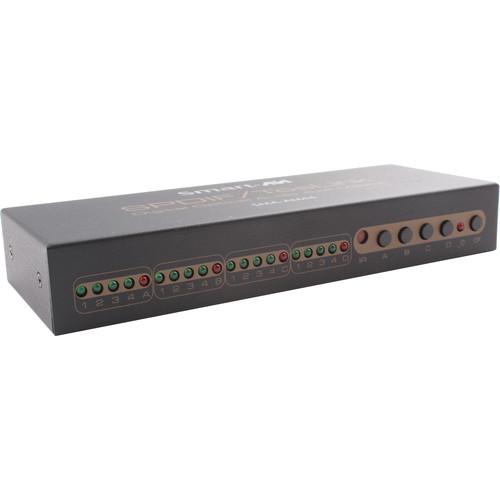

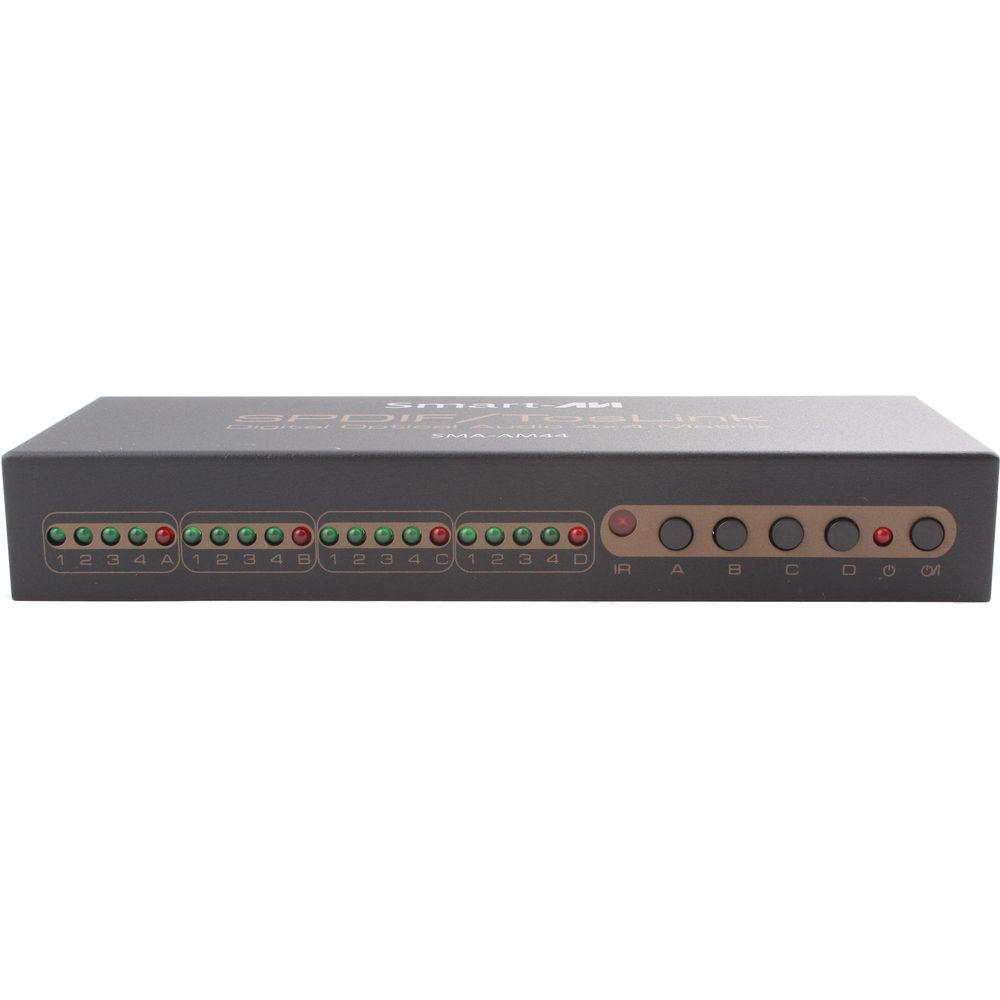

- Switching and control through front panel buttons
- Retains memory of output configuration after a power cycle
- Built-in overvoltage protection
- LED status indicator lights
In the Box Smart-AVI SMA-AM44S SPDIF Optical Digital Audio 4x4 Matrix Switch Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI SMA-AM44S SPDIF Optical Digital Audio 4x4 Matrix Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

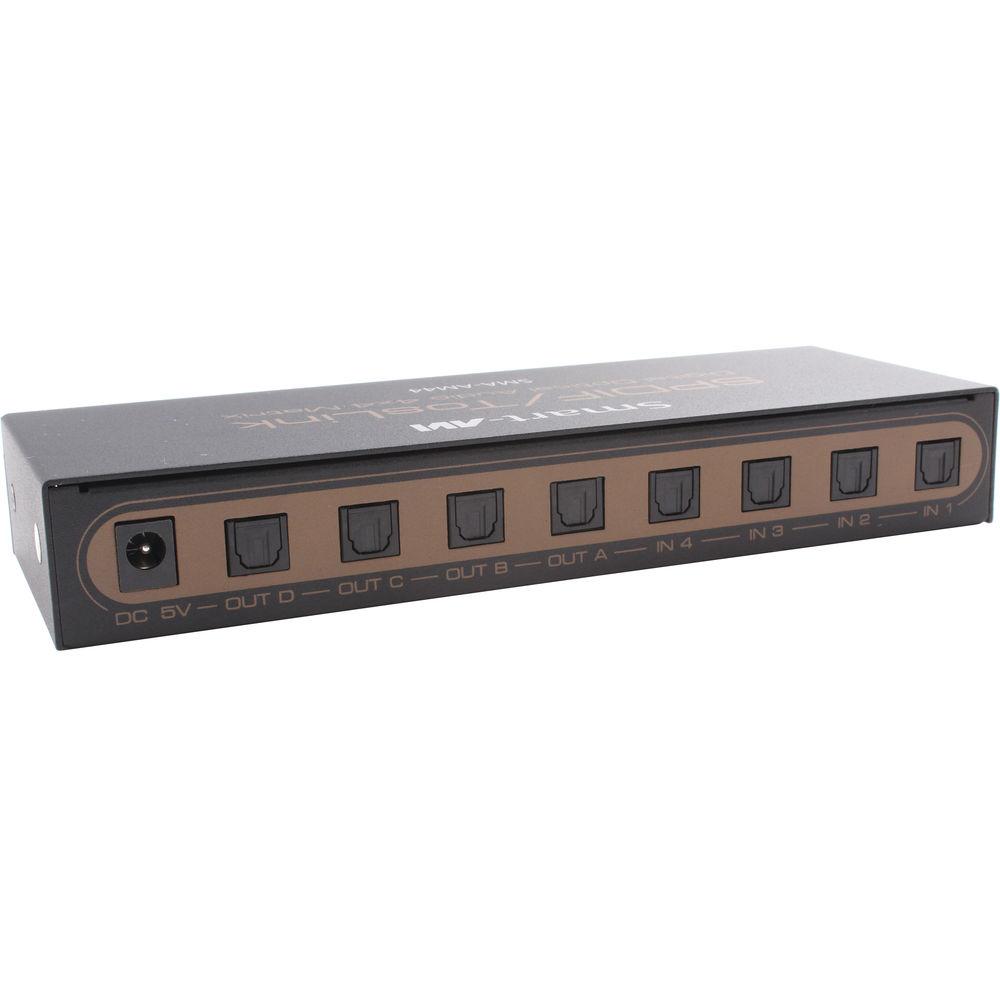

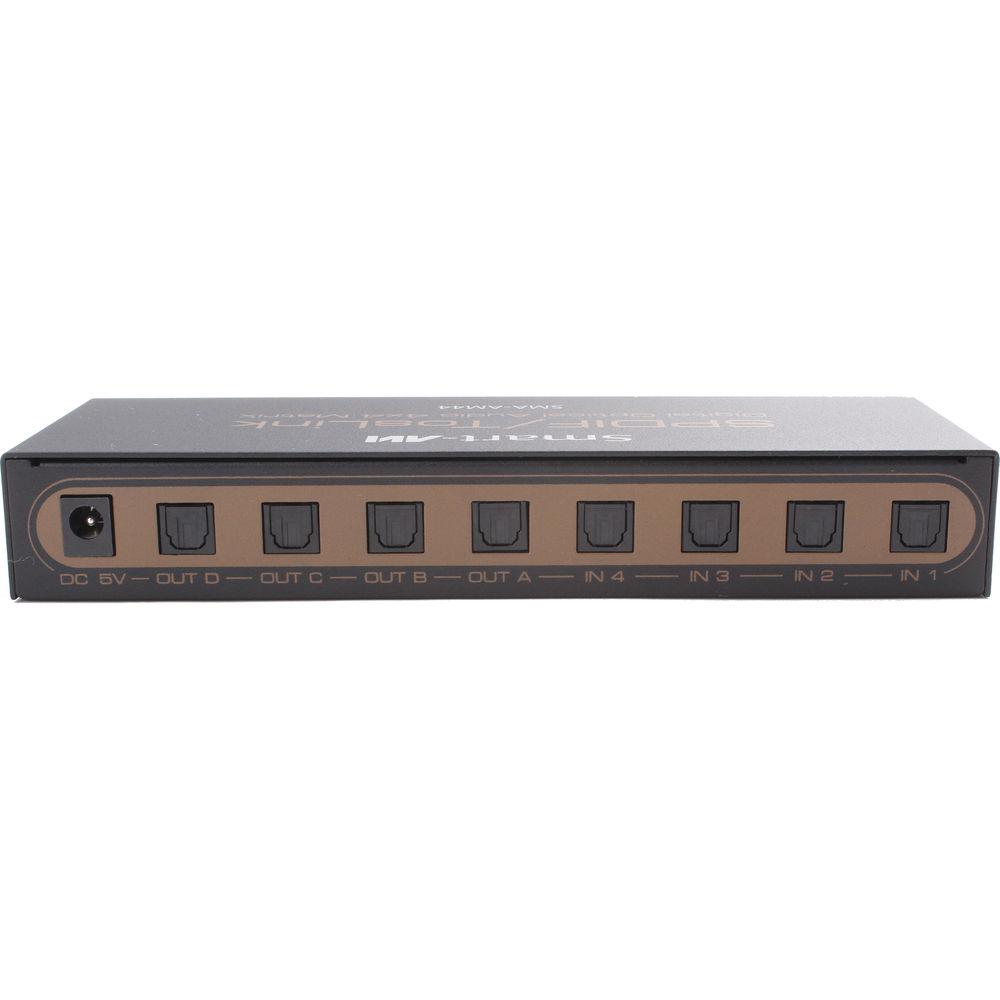

Technical parametersSmart-AVI SMA-AM44S Specs | Supported Audio Formats | DTS-HD, Dolby-TrueHD, LPCM2.0, DTS, Dolby-AC3 | | Peak Wavelength | 650 nm | | Max Baud Rate | 16 Mbps | | Connectors | 4 x Toslink, SPDIF audio fiber input
4 x Toslink, SPDIF audio fiber output
1 x DC power input | | Working Current | 100 mAh | | Power Input | 100 - 240 VAC, 50/60 Hz | | Power Output | 5 VDC, 500 mAh | | Operating Temperature | 0 to 104°F (0 to 40°C) | | Operating Humidity | 5 to 90% RH, Non-condensing | | Dimensions | 2.6 x 7.0 x 1.1" (6.6 x 17.8 x 2.8 cm) | | Weight | 0.8 lb (0.4 kg) |
