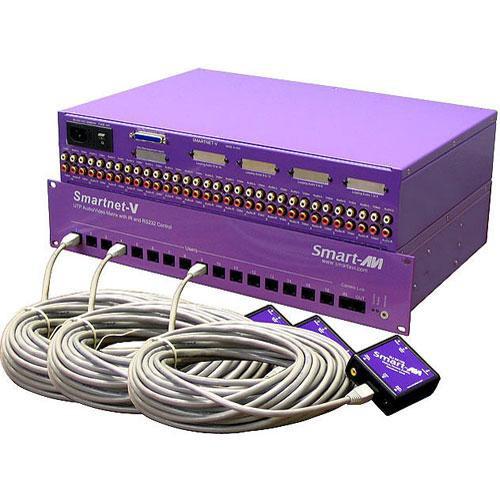

User Manual for Smart-AVI Smartnet-V 32x16 Composite Audio & Video Matrix Click to enlarge the picture
Contents of the user manual for the Smart-AVI Smartnet-V 32x16 Composite Audio &
- Product category: Video Extenders & Repeaters Smart-AVI
- Brand: Smart-AVI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Smart-AVI Video Extenders & Repeaters
|
User manual for the Smart-AVI Smartnet-V 32x16 Composite Audio & contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Smart-AVI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Smart-AVI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Smart-AVI product will considerably shorten its lifespan!
|
Product description The SmartAVI SmartNet-V 32x16 Matrix Router is a simple and intuitive way to route composite video and audio signal to multiple monitors throughout any office facility, commercial retail space, fitness center, restaurant, bar, video wall, etc.The matrix features 32 input channels with composite video inputs and audio inputs via RCA phono connections. All 16 outputs feature RJ45 connections to connect to the video monitors, televisions, infrared emitters, and other input signal destinations. Dedicated RS232 ports establish communication with Windows® PCs and SmartNet-X units.The included SmartControl software provides full routing from a Windows® computer and multiple SmartNet-V matrix routers may be chained for unlimited video and audio signal routing possibilities. - Unlimited routing of multiple video sources via Cat-5 and Cat-6 cable
- Accomodates up to 32 composite video and audio sources
- 16 RJ45 outputs provide routing to video monitors, televisions, etc.
- SmartControl software establishes comprehensive routing via Windows® PCs
In the Box Smart-AVI Smartnet-V 32x16 Composite Audio & Video Matrix Smartnet-V Router SmartControl Software for Windows® Power Cord RS232 to RS422 Adapter RS422 to RJ45 Adapter 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI Smartnet-V 32x16 Composite Audio & Video Matrix in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSmart-AVI Smartnet-V Specs | Maximum Operating Distance | 1000' (300 m) | | Cable | Cat-5e and Cat-6 compatible | | Interface | Video: SXGA, SUN, DVI-D
Audio: RCA Phono | | Power | 90-230V Input 50/60Hz | | Dimensions (WxDxH) | 19 x 17.71 x 5.23" (483 x 450 x 133mm) | | Weight | 22lb (10kg) |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 86 owners. Add your rating and experience with the product.
