User Manual for Smart-AVI SMX-AV0816S 8x16 SuperMatrix with Audio & Video Click to enlarge the picture
Contents of the user manual for the Smart-AVI SMX-AV0816S 8x16 SuperMatrix with Audio
- Product category: Routers & Switchers Smart-AVI
- Brand: Smart-AVI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Smart-AVI Routers & Switchers
|
User manual for the Smart-AVI SMX-AV0816S 8x16 SuperMatrix with Audio contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Smart-AVI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Smart-AVI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Smart-AVI product will considerably shorten its lifespan!
|

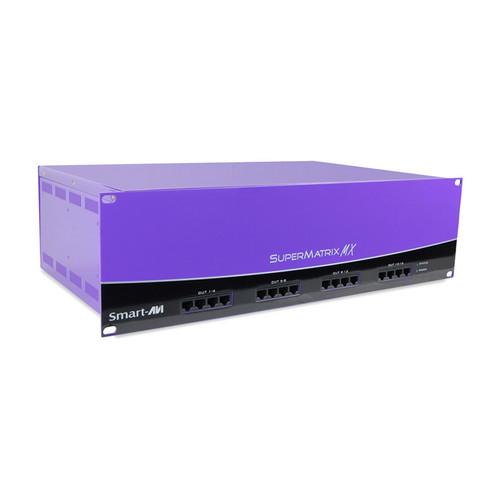

Product description The SMX-AV0816S 8x16 SuperMatrix with Audio & Video from Smart-AVI is a matrix switcher that offers 8x16 switching of multi-format video and audio signals. This solution is well suited for use in distributing multiple video formats throughout large areas, such as hotels, command centers, boardrooms, educational environments, and entertainment facilities, among many other possible applications and settings. Resolutions up to 1080p or 1900 x 1200 are supported. Control options on this model include RS-232 connectivity or an included Windows-based software package. Advanced features include reporting, alarms, and support for multiple control interfaces. - Switches 8 inputs to any 16 outputs for unmatched design flexibility
- SuperMatrix is a full non-blocking switching matrix
- Switch signals from devices located up to 1000' apart
- HD compatible (720p, 1080i, 1080p)
- Supports high resolution video up to 1900 x 1200
- Sends crystal clear stereo audio
- Sends high-resolution VGA and stereo audio over a single twisted-pair cable
- Compatible with video composite, S-video, component, and XVGA interface
- Increases productivity by providing access to 8 computers from 16 workstations
- Can be controlled via software interface or internet
- Full RS-232 matrix offer remote power, commands, and reporting
- Enable touch-screen displays to send and receive data
- Interrupt displays with alerts and urgent messages
- Capacity to support multiple control interfaces
- Control via RS-232 using SmartControl Windows-based software included with the system
- SuperMatrix also allows multiple users to access the matrix from anywhere in the world using http interface
- You can also use a remote control through an infrared connection
In the Box Smart-AVI SMX-AV0816S 8x16 SuperMatrix with Audio & Video SMX-AV0816S SuperMatrix CCRS232MF6 RS-232 Male to RS-232 Female Cable (6') SMP-SW Smart Control Application CCPWR06US One-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI SMX-AV0816S 8x16 SuperMatrix with Audio & Video in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSmart-AVI SMX-AV0816S Specs | Video | Bandwidth: 400MHz
Input Signal Level: 1Vpk-pk into 75R
Output Impedance: 100 Ohms
Input Impedance: 75 Ohms
Connector: HD15 socket female
Format: VGA/SVGA/XGA/RGBHV/RGsB/CVBS/YC/YUV/RGBS
Syncs: TTL5VDC
Bandwidth: horizontal sync up to 85KHz
Front Panel: RJ45 with video, audio and data modulated within single UTP | | Audio | Signal: 15KHz 0dB unbalanced 100 Ohms impedance
Connector: RCA or 3.5mm stereo jack | | Control | DB-9: female RS-232 or RS-422 @ 9600bps | | Power | 90 to 230V, IEC, 1A, A/S 50/60Hz | | Dimensions (HxWxD) | 3.46 x 19 x 17" (88 x 482 x 450mm)
1U rack height | | Weight | 9 lbs (4kg) |
