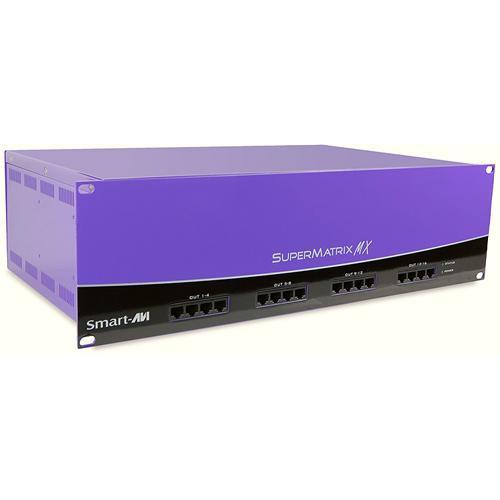

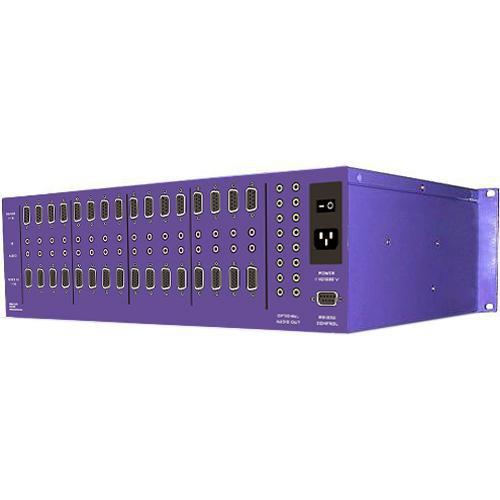

Product description The SMX-AVD1616S 16x16 SuperMatrix from Smart-AVI is a matrix switcher that can be used to route any of its inputs to any of its outputs and vice versa. This model features an 8x8 audio or video matrix switcher, CAT-5 data connectivity, and IR & RS-232/422 controls. - Audio or Video Matrix Switching
- Use this switcher to route any audio or video inputs to any outputs or vice versa.
- RJ-45, IR & RS-232/422
- This model supports Ethernet data, infrared, and RS-232/422 controls.
- HD Compatible
- It supports resolutions up to 1900 x 1200 or 1080p.
- Advanced Features
- Other advanced features include remote power, reporting, and alerts, among other offerings.
In the Box Smart-AVI SMX-AVD1616S 16x16 SuperMatrix Switcher One-Year Warranty Against Defects in Material & Workmanship Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI SMX-AVD1616S 16x16 SuperMatrix in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSmart-AVI SMX-AVD1616S Specs | Inputs | 16x16 Matrix Configuration

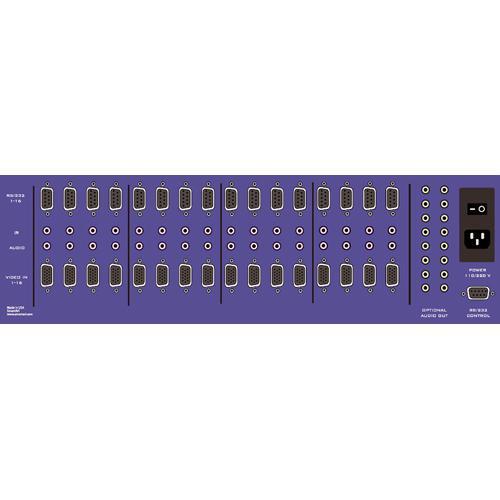

Video: HD15 socket female
Audio: RCA or 3.5 Stereo Jack
Format: VGA/SVGA/XGA/RGBHV/RGsB/CVBS/YC/YUV/RGBS
RS-232: RS232 DB9 Female, TX, RX, GND
Infrared: IR 3.5mm Jack to IR emitter
Front Panel: RJ45 with video, audio and data modulated within single UTP | | Resolution | Up to 1900 x 1200 or 1080p | | Range | Up to 1000' | | Power Source | Not specified by manufacturer | | Dimensions (HxWxD) | 5.25 x 17.71" (HxW)
Depth not specified by manufacturer
3U rack height | | Weight | 9 lbs |
