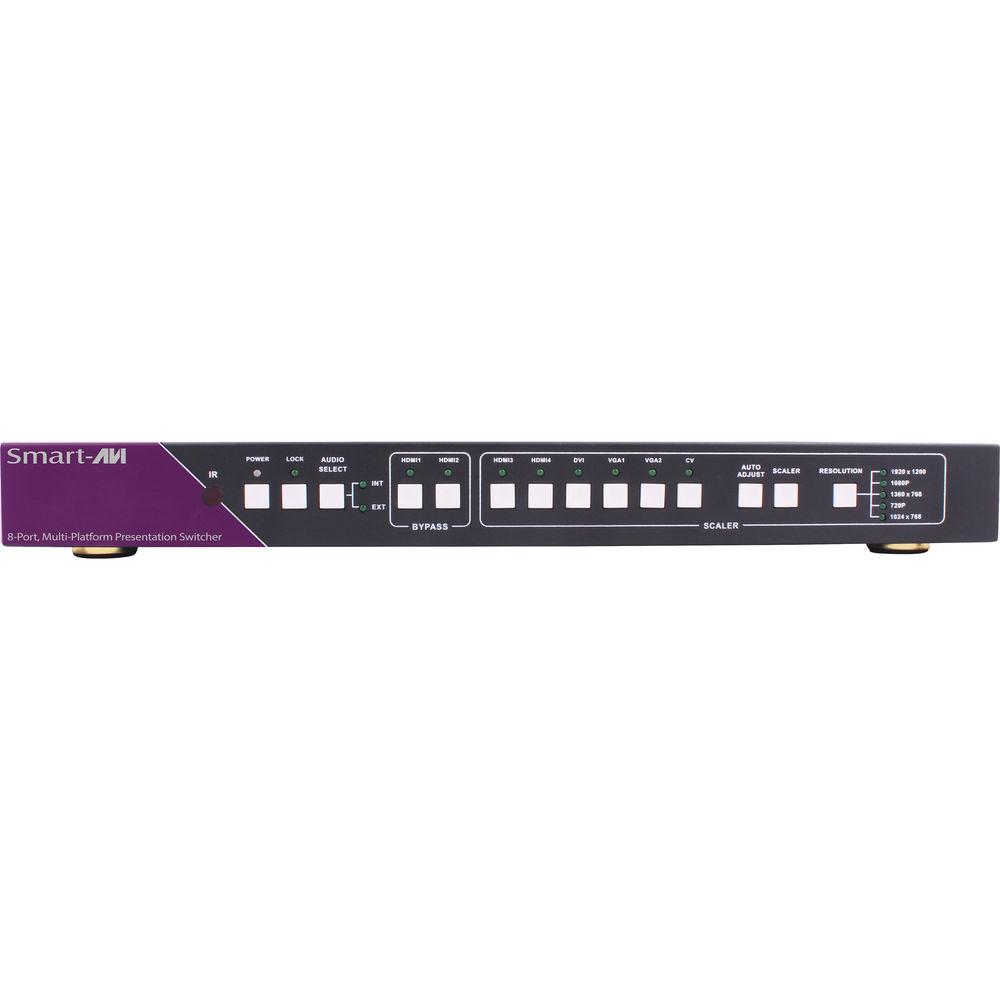

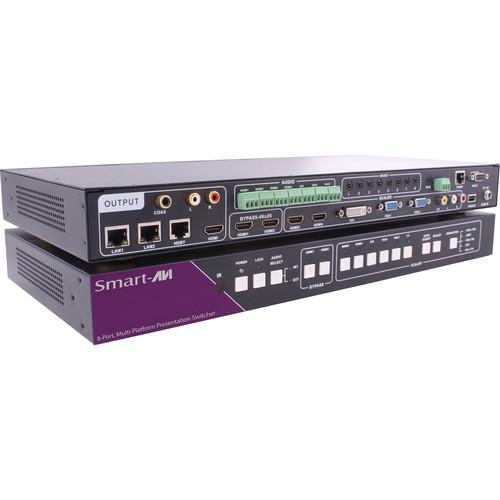

Product description The SPS-1000S Eight-Port Multi-Platform Presentation Switcher from Smart-AVI enables you to integrate a wide variety of A/V technology interfaces from one easy-to-use device. It features eight input ports, including four HDMI, two VGA, one DVI, and one RCA input. There are seven Phoenix audio connectors, one for each of the digital video inputs, and the audio from these inputs is automatically embedded with the corresponding video signal. The switcher provides HD scaling for video quality and compatibility, and two of the HDMI inputs can bypass any scaling, allowing the device to support input and output resolutions of up to 4K Ultra HD. The front of the SPS-1000S contains an infrared sensor, allowing the device to receive IR signals from various remotes for each connected input device, providing convenient source control. There is also one local HDMI ouptut, two local audio outputs, and an RJ-45 port for extending the HDMI output signal up to 325'. - Eight video inputs, including four HDMI, two VGA, one DVI, and one RCA input
- One local HDMI output, with one local SPDIF digital coaxial audio output, and one local RCA stereo audio output
- Up to 325' of signal extension over Cat5e/6/7 cables
- Receiver unit uses HDBaseT technology and POE (Power over Ethernet)
- Switcher scales output resolutions up to 1080p
- Two HDMI ports with bypass to support 4K Ultra HD input and output
- Supports control through an RS-232 connection, IR remote, front-panel buttons, and TCP/IP
- Seven Phoenix audio ports with automatic audio embedding for each of the digital video inputs
- Supports SPDIF and stereo audio
UPC: 813280019880 In the Box Smart-AVI SPS-1000S Eight-Port Multi-Platform Presentation Switcher Power Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI SPS-1000S Eight-Port Multi-Platform Presentation Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSmart-AVI SPS-1000S Specs | Video In | 4 x HDMI
2 x VGA
1 x DVI
1 x RCA | | Video Out | 1 x HDMI
1 x RJ-45, Remote video out | | Audio In | 7 x 3-Pin Phoenix connector | | Audio Out | 1 x RCA
1 x SPDIF Digital coaxial | | Control | In: 1 x RS-232, 1 x RJ-45, 1 x IR 3.5 mm
Out: 8 x IR 3.5 mm, 2 x RJ-45 (LAN) | | Power Consumption | Mamixum: 14.5 W
Standby: 1.8 W | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Relative Humidity | 20-90% RH, non-condensing | | Dimensions | 17.3 x 7.9 x 1.9" / 43.8 x 19.9 x 4.8 cm | | Weight | 5 lb / 2.3 kg |
