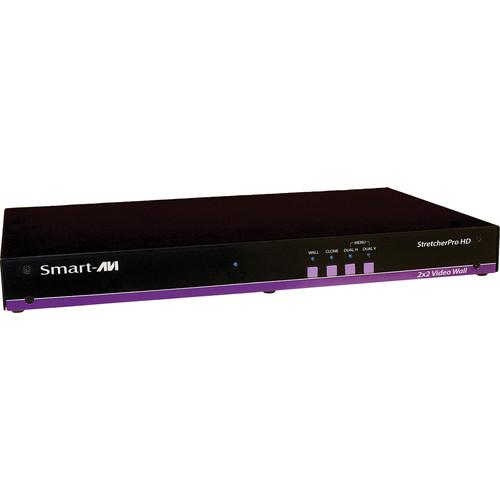

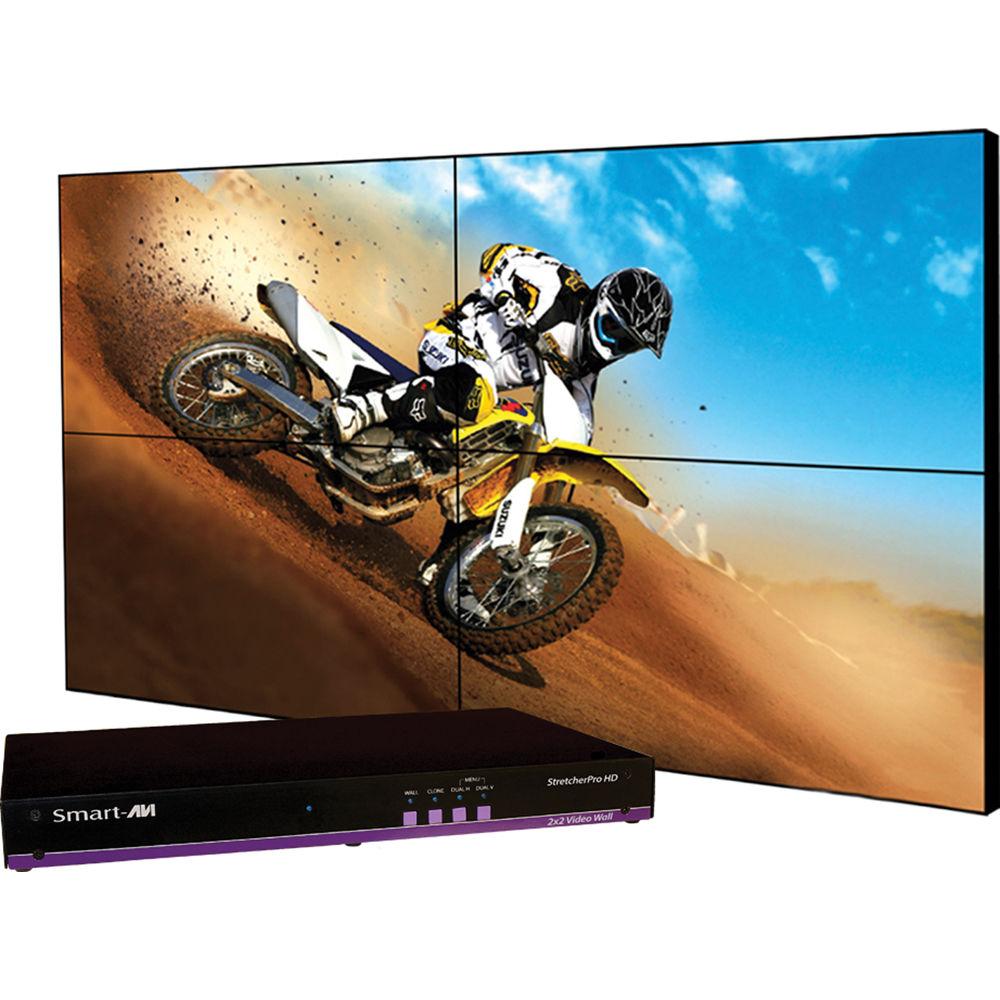

Product description The StretcherPro-HD 2 x 2 HDMI Video Wall Controller from Smart-AVI provides a simple plug-and-play hardware solution to create a 4-screen video wall. It is capable of stretching a single HD input across 4 screens, while maintaining virtually any resolution up to 1920 x 1080 on each screen. Regardless of scaling (one input to all four screens), the video wall controller maintains the original quality of the image on all monitors, delivering crisp image to the audience. The HDMI video wall controller features 1 HDMI input and 4 HDMI outputs. It supports almost any video input resolution from 800 x 600 up to 1920 x 1080 (Full HD). It stretches the video image in multiple ways including video wall mode, dual horizontal (2 x 1), dual vertical (1 x 2), or clone image (1:1). A video wall configuration greater than 2 x 2 may be required in shopping malls, airports, concert events, theme parks, or nightclubs. StretcherPro-HD 2 x 2 HDMI Video Wall Controller is expandable and versatile enough to meet the needs of system integrators. Multiple controllers can be linked for larger video wall configurations. All of the video wall controller's functions are accessible via the on-screen display (OSD) that offers flexibility and ease of use. Requiring no additional screens or computers to make changes, configuring the video wall controller on-the-fly is hassle-free. The OSD can be operated with the included IR remote control. This video wall controller also supports RS-232 control. 2 x 2 HDMI Video Wall Controller - 4-Screen multi-layout digital signage/video wall controller

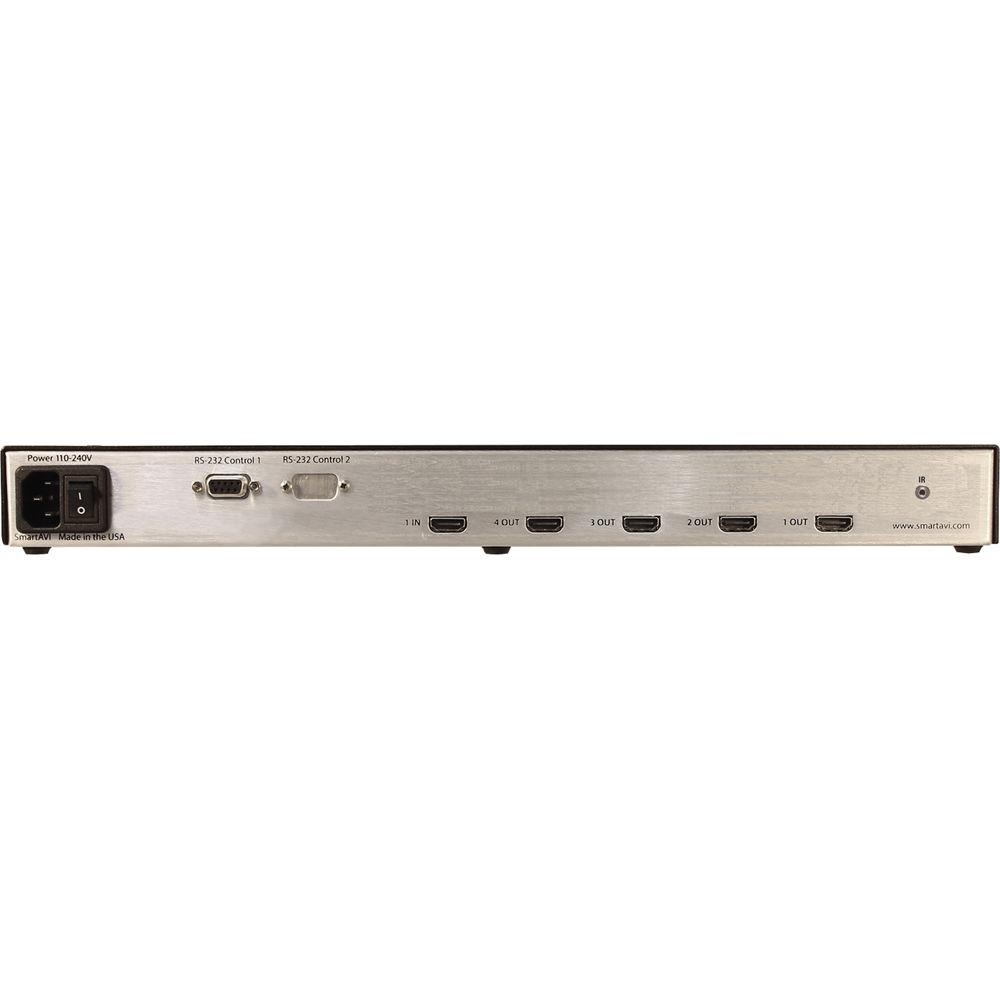

- 1 HDMI input, 4 HDMI outputs
- Resolutions up to 1920 x 1080 per monitor
- Total resolution of 3840 x 2160 with four 1920 x 1080 monitors in a 2 x 2 configuration
- Output to 4 screens in clone, stretch horizontal or vertical modes
- Requires no additional hardware or software
- Multiple units can be linked for larger wall configurations
- Supports DVI-D inputs with adapter (not included)
- Supports IR and RS-232 control
- HDCP and HDMI 1.4 compliant
- Designed and manufactured in USA

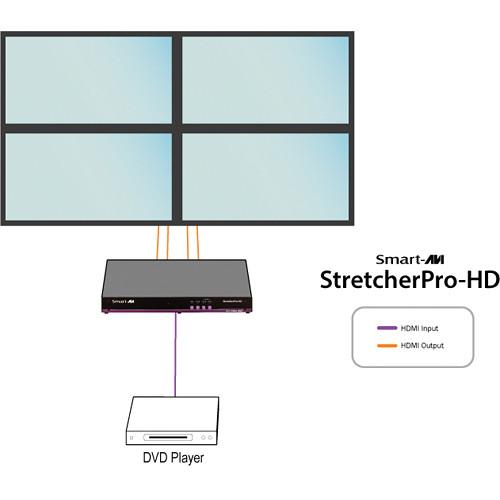

Available Configurations - Video Wall Mode: The input image (up to Full HD) can be stretched across four HD screens (2 x 2 configuration), each with a resolution of up to 1920 x 1080.
- Clone Mode: The input image can be routed to each display individually, creating a simple and effective digital signage display.
- Dual Horizontal Mode: The input image can be routed across two horizontally arranged screens, repeated in the second row.
- Dual Vertical Mode: The input image can be routed across two vertically arranged screens, repeated in the second column.
Applications - Corporate or educational presentations, airport installations, wall displays, digital signage, dealer rooms, information displays, command centers, simulation systems, houses of worship, convention facilities, theme parks, resorts, casinos, control rooms, shopping centers, security, point-of-sale, entertainment venues, corporate lobbies, restaurants
UPC: 813280019941 In the Box Smart-AVI StretcherPro-HD 2 x 2 HDMI Video Wall Controller CCPWR06 6' Power Plug Cable vvwdazudvdeybxzexrsvu Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI StretcherPro-HD 2 x 2 HDMI Video Wall Controller in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSmart-AVI STRP-HDS Specs | | | Video Bandwidth | Single-link 340 MHz (10.2 Gb/s) | | Resolution | HDTV: 480i, 480p, 720i, 720p, 1080i, 1080p

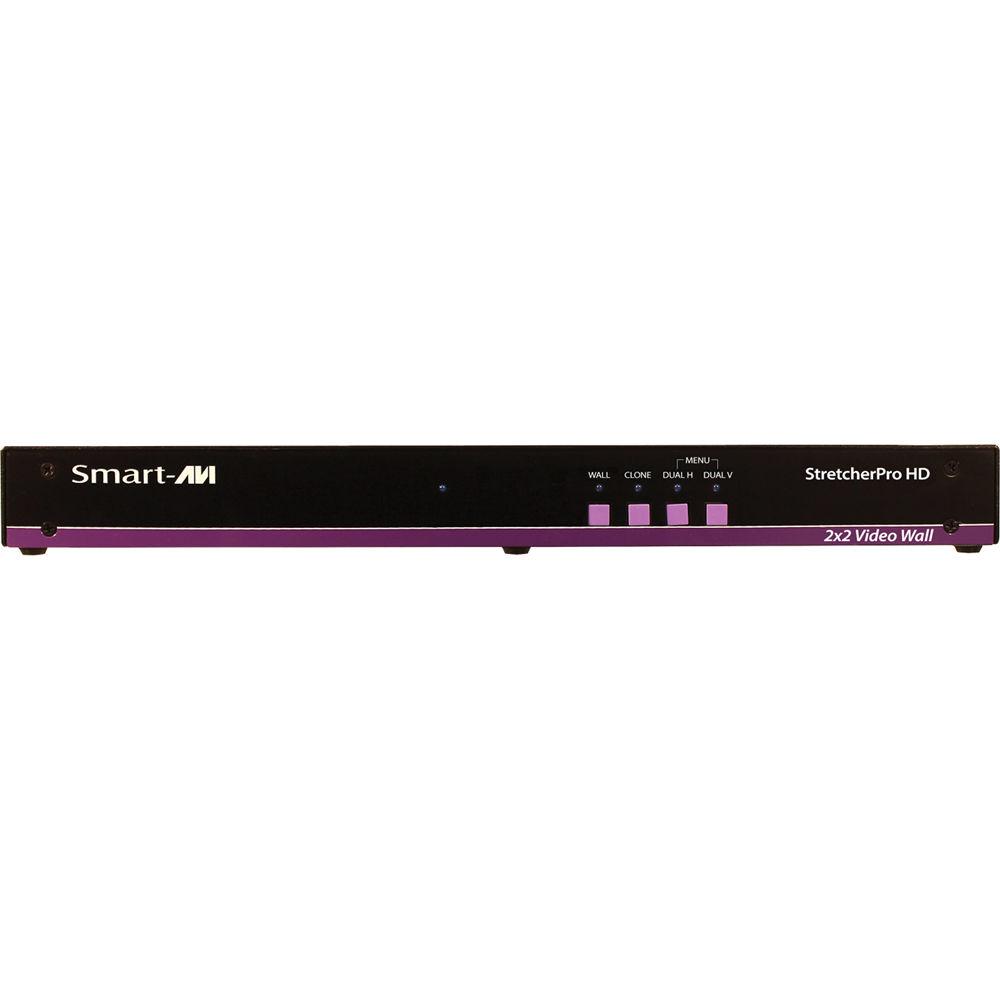

PC: 800 x 600 up to 1920 x 1200 | | Input Video Signal | 1.2 V | | Input DDC Signal | 5 V | | Single Link Range | 1080p | | Format | HDMI 1.4 | | DVI Compliance | Single-link DVI-D 2.0 | | HDCP Compliance | 1.0 / 2.0 | | Input Interface | 1 x HDMI | | Output Interface | 4 x HDMI | | HDMI Connector | Type A (19-pin female) | | | | Front Panel | Tact Switches with OSD | | RS-232 | 9-pin D-Sub (female) | | Remote | IR RC5 | | Ethernet | Optional Ethernet control | | | | Power Requirements | Internal 100 to 240 VAC | | Approvals | Power Supply: UL, CE, CSA, CEC, RoHS | | Dimensions (WxHxD) | 17.0 x 1.7 x 10.2" (43.2 x 4.3 x 25.9 cm); Rack Height: 1U | | Weight | 4.05 lb (1.84 kg) | | | | Package Weight | 8.0 lb | | Box Dimensions (LxWxH) | 22.3 x 16.5 x 6.5" |
