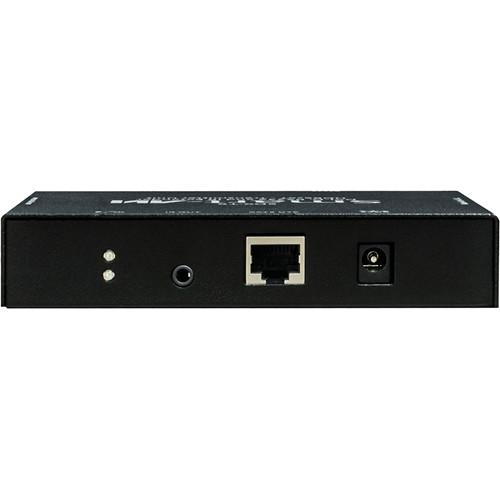

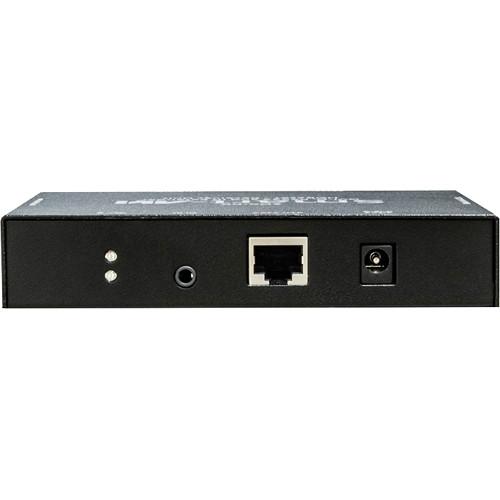

User Manual for Smart-AVI Super Range SDX-S DVI-D & RS232 IR Extender Set Click to enlarge the picture
Contents of the user manual for the Smart-AVI Super Range SDX-S DVI-D &
- Product category: KVM Extenders Smart-AVI
- Brand: Smart-AVI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Smart-AVI KVM Extenders
 |
User manual for the Smart-AVI Super Range SDX-S DVI-D & contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Smart-AVI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Smart-AVI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Smart-AVI product will considerably shorten its lifespan!
|
Product description The Smart-AVI Super Range DVI-D & RS232 IR Extender Set is capable of sending DVI-D signals up to 400’ (120m) over a single conventional CAT5/5e/6 cable. The HDBaseT technology requires a special CAT6 shielded cable to go a short distance. This SDX Extender Set also has RS232 and IR extension, giving you the ability to control your displays or devices remotely. - Extends DVI-D video, RS232, and IR signals up to 400' (120m) from the source over a single CAT5/5e/6 cable using HDBaseT technology
- Data recovery for digital video
- Supports up to 1920 x 1200 digital video resolution
- Uncompressed Video HDBaseT technology
- IR and RS232 extension allows for remote control of displays
- External power adapter for transmitter and receiver units
- Applications: Security, PC networking, conference center systems, point of sale, camera surveillance, video phones, control room systems, recording studios, and PC KVM extension
In the Box Smart-AVI Super Range SDX-S DVI-D & RS232 IR Extender Set SDX-RX Receiver SDX-TX Transmitter 2 x PS5VDC2A Wall Mount Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI Super Range SDX-S DVI-D & RS232 IR Extender Set in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

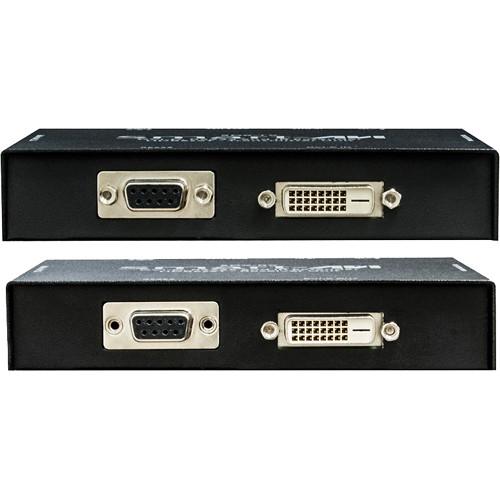

Technical parametersSmart-AVI SDX-S Specs | Format | Video: DVI-D Single Line | | Maximum Pixel Clock | Video: 165 MHz | | Interface | Video
Input (Transmitter): 1 x DVI-D 29-pin female
Output (Receiver): 1 x DVI-D 29-pin female
RS232
Input (Transmitter): DB9 (female)
Output (Receiver): DB9 (female)
IR
Input (Transmitter): 3.5 mm (female)
Output (Receiver): 3.5 mm (female) | | Resolution | Video: Up to 1920 x 1200 @ 60 Hz | | DDC | Video: 5 Vpp (TTL) | | Input Equalization | Video: Automatic | | Cable Length | Video
Input: Up to 20.0' (6.1 m)
Output: Up to 20.0' (6.1 m) | | Signal Type | USB: OHCI/UHCI (USB 1.1) | | Speed | RS232: @ 115 kb/s | | Frequency Response | IR: 30 to 80 kHz | | Power | External 100 to 240 VAC/5 VDC, 4 A @20 W | | Temperature | Operating: 32 to 131°F (0 to 55°C)
Storage: -4 to 185°F (-20 to 85°C) | | Humidity | Up to 95% | | Dimensions (W x H x D) | 5.13 x 1.00 x 3.63" (130.3 x 25.40 x 92.20 mm) | | Weight | 0.50 lb (0.23 kg) |
