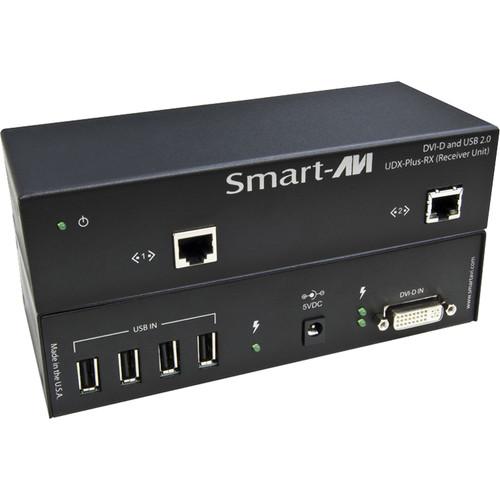

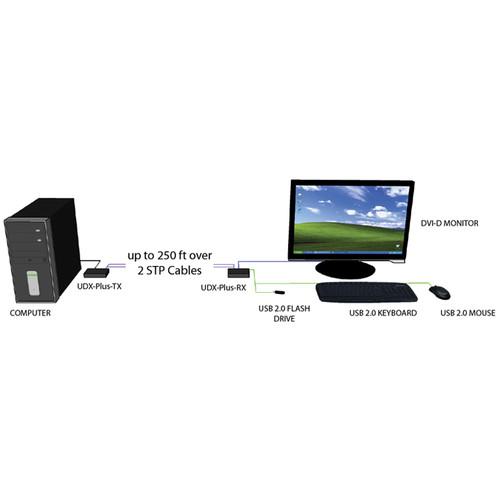

Product description The UDX-PRXS from Smart-AVI is a receiver designed to work with the UDX-PTXS transmitter (sold separately) to extend DVI-D and USB 2.0 signals up to 250' away over two CAT5 cables. The UDX-PRXS features pixel accurate signal re-clocking which regenerates the input signal into a perfectly sharp and clear output signal. It is fully plug and play with dynamic DDC learning. This receiver supports resolution of up to 1920 x 1200 at 60 Hz. Typical applications include use in industrial work areas, home theater integration, medical applications, digital signage deployment, information kiosks/displays, and film/recording studios. - DDC from internal table for Mac/PC
- Dedicated switch to learn any DDC
- Supports Mac, PC, and Linux DVI
- Uses universal DVI single link connectors
- Zero pixel loss with TMDS signal correction
- Supports all USB 2.0 and 1.0 devices transparently (disk drives, flash drives, printers, cameras, and scanners)
- Supports 4-port USB 2.0 in remote location
- Full re-clocking for the receiver regenerates digital signal producing top signal quality
In the Box Smart-AVI UDX-PRXS DVI-D and USB 2.0 Extender Receiver over Two CAT5 Cables Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI UDX-PRXS DVI-D and USB 2.0 Extender Receiver over Two CAT5 Cables in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSmart-AVI UDX-PRXS Specs | Signal Type | Video: DVI-D

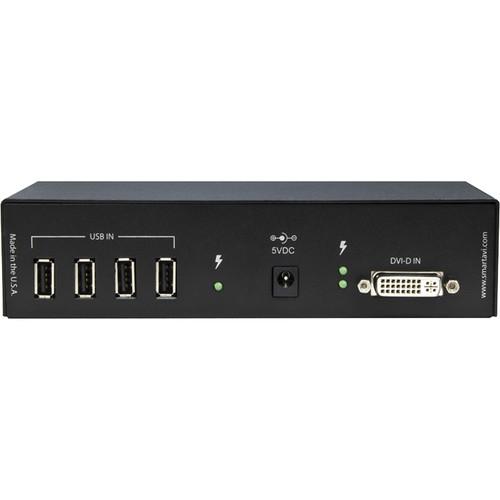

USB: USB 2.0 480 Mb/s (60 MB/s) | | Maximum Pixel Clock | 165 MHz | | Connectors | 1 x 29-pin DVI-D female, video output
4 x USB type A female, output

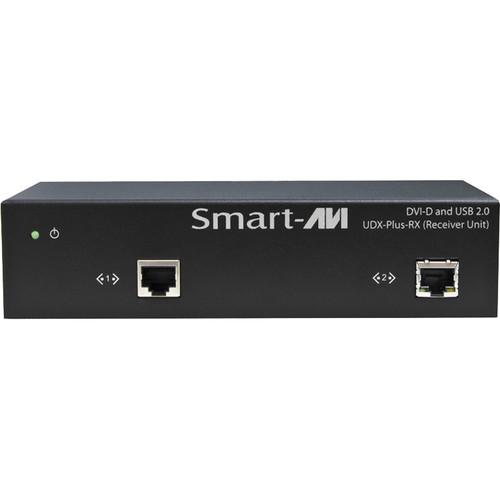

2 x RJ-45 port | | Resolution | 1920 x 1200 @ 60 Hz | | DDC | 5 V p-p | | External Power | 100 - 240 VAC / 5 VDC, 4 A @ 20 W | | Operating Temperature | 32 to 131°F (0 to 55°C) | | Storage Temperature | -4 to 185°F (-20 to 85°C) | | Humidity | <95% | | Dimensions | 7.25 x 1.75 x 3.38" (18.42 x 4.45 x 8.57 cm) | | Weight | 3 lb (1.4 kg) |
