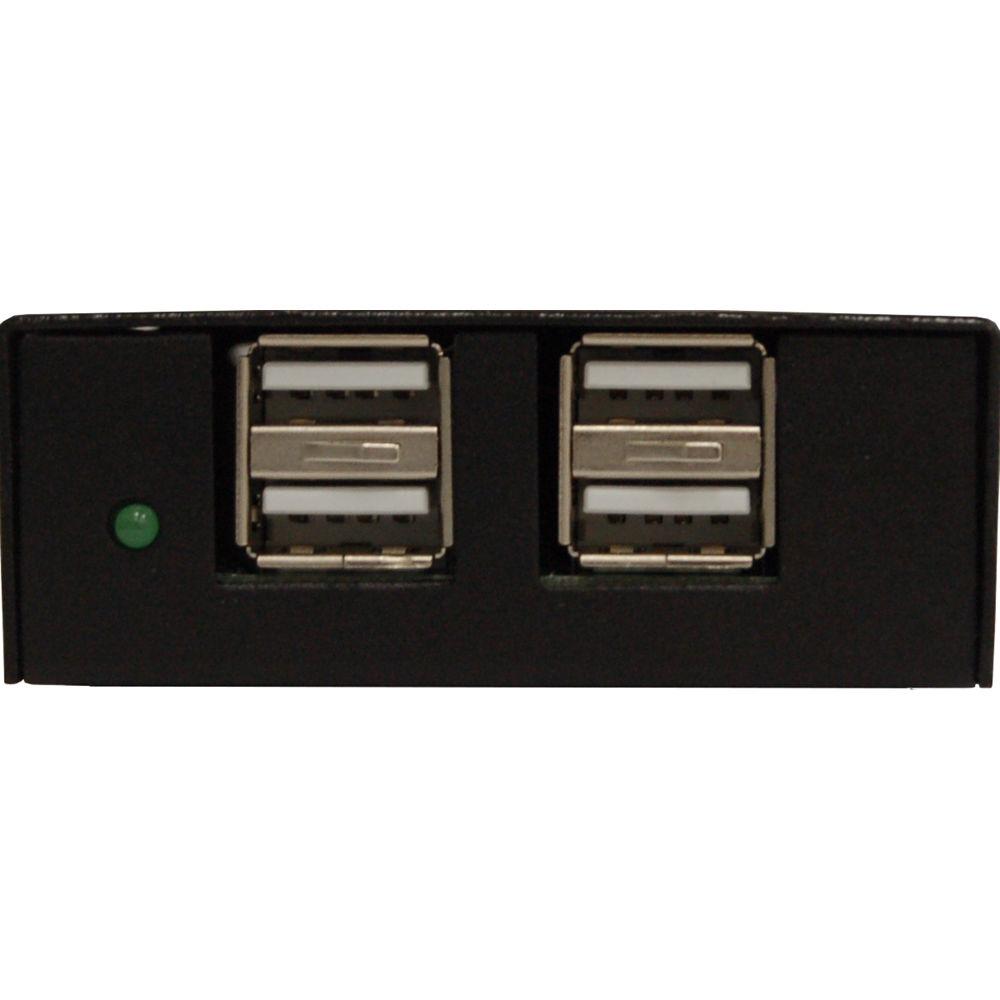

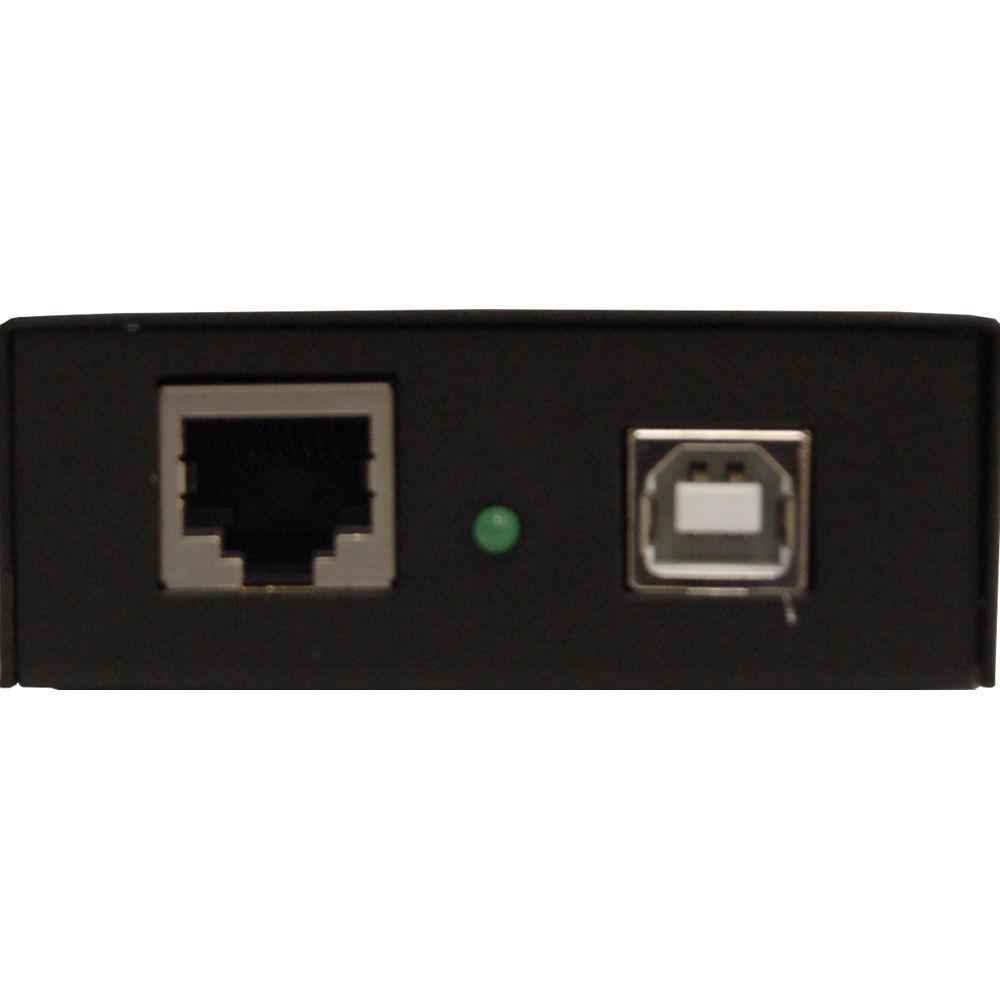

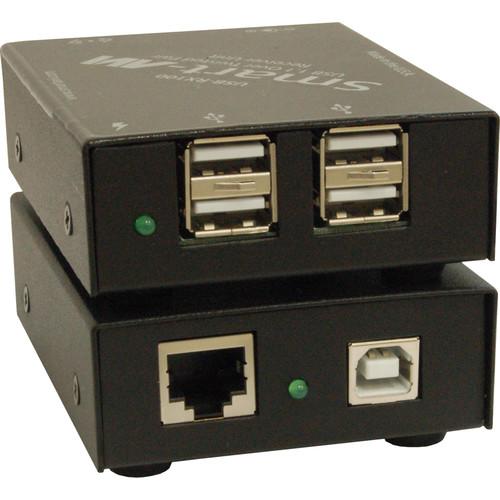

Product description The USB2-Mini-S USB 2.0 Extender from Smart-AVI consists of a transmitter and receiver unit. It is capable of extending USB 2.0 signals up to 150' using a CAT5e/6 cable. An integrated four-port hub allows for multiple devices to be connected to the USB2-Mini at once. This extender supports all USB 2.0 high-speed devices, from keyboards to printers, and is compatible with Windows, Mac, and Linux operating systems. An integrated four-port hub allows for multiple devices to be connected to the USB2-Mini at once. Additional USB hubs can be added to increase the number of devices that can be plugged into the device. - Extends the transmission distance between a USB device and its host computer up to 150'
- Supports all USB 2.0 and 1.1 devices transparently (flash drives, printers, scanners, etc.)
- Supports USB 1.1 keyboard and mouse
- Works on Windows, Mac, and Linux operating systems
- Bus-powered local (transmitter) unit
- Power adapter for remote (receiver) unit
- Plug-and-play functionality
Applications UPC: 813280015790 In the Box Smart-AVI USB2-Mini-S USB 2.0 Extender over CAT5e/6 SMUSB2MRX SMUSB2MTX PS5VD4A Power Supply for Receiver Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI USB2-Mini-S USB 2.0 Extender over CAT5e 6 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSmart-AVI USB2-MINI-S Specs | | | Input Interface | 1 x USB type-B female | | Output Interface | 1 x RJ-45 for CAT5e/6 cable | | | | Input Interface | 1 x RJ-45 for CAT5e/6 cable | | Output Interface | 4 x USB type-A female | | | | Data Rate | USB: 480 Mb/s | | Version | USB 2.0 and 1.1 | | Signal Type | UTP: LVDS | | Range | 150' (46 m) over CAT5e/6 | | | | Power | External or via USB, 5 VDC @ 2 mA | | Power Connector | 2.1 mm DC jack (center positive) | | Operating Temperature | 332 to 131°F (0 to 55°C ) | | Storage Temperature | -4 to 185°F (-20 to 85°C) | | Humidity | Up to 95% | | Dimensions (W x D x H) | 3.4 x 3.4 x 1.5" (85.7 x 85.7 x 38.1 mm) | | Weight | 2.2 oz (63.5 g) | | | | Package Weight | 1.2 lb | | Box Dimensions (LxWxH) | 7.7 x 5.4 x 4.3" |
