User Manual for Smart-AVI USB2M-RX USB 2.0 Receiver for USB2-Mini Extender Click to enlarge the picture
Contents of the user manual for the Smart-AVI USB2M-RX USB 2.0 Receiver for
- Product category: USB Extenders Smart-AVI
- Brand: Smart-AVI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Smart-AVI USB Extenders
 |
User manual for the Smart-AVI USB2M-RX USB 2.0 Receiver for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Smart-AVI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Smart-AVI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Smart-AVI product will considerably shorten its lifespan!
|

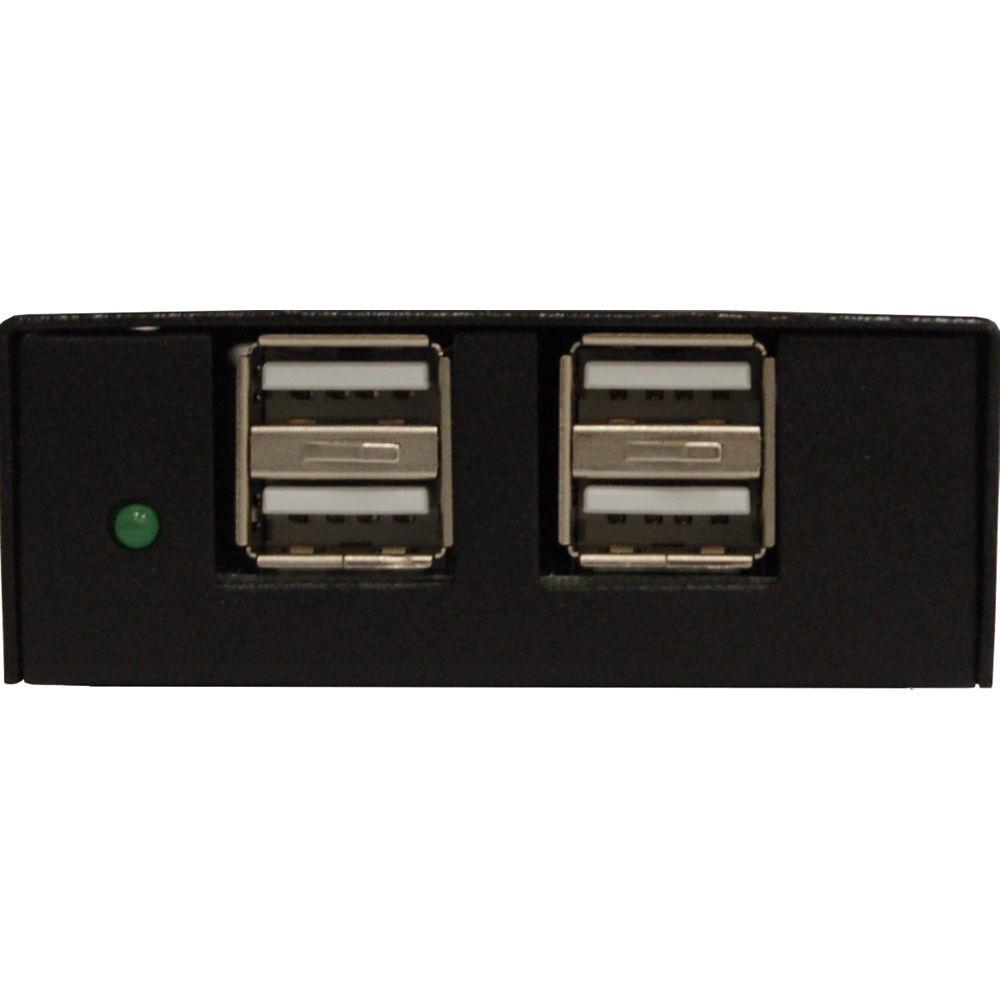

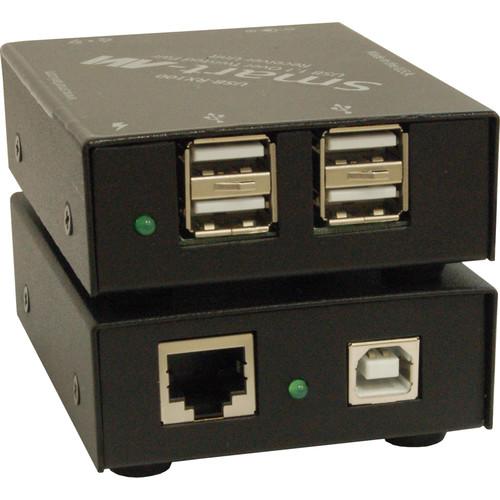

Product description The USB2M-RX Receiver from Smart-AVI is used with the USB2-Mini transmitter unit for extending USB 2.0 signals up to 150' using a CAT5e/6 cable. It is powered using the PS5VD4A power supply (included). This receiver supports all USB 2.0 high-speed devices, from keyboards to printers, and is compatible with Windows, Mac, and Linux operating systems. An integrated four-port hub allows for multiple devices to be connected to the USB2-Mini at once. Additional USB hubs can be added to increase the number of devices that can be plugged into the device. - Extend the transmission distance between a USB device and its host computer up to 150' when used with the USB2M-TX transmitter unit 1
Please Note: Only when used with compatible receiver or transmitter close - Supports all USB 2.0 and 1.1 devices transparently (flash drives, printers, scanners, etc.)
- Supports USB 1.1 keyboard and mouse
- Works on Windows, Mac, and Linux operating systems
- Power adapter for remote (receiver) unit
- Plug-and-play functionality
Applications UPC: 813280023702 In the Box Smart-AVI USB2M-RX USB 2.0 Receiver for USB2-Mini Extender PS5VD4A Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI USB2M-RX USB 2.0 Receiver for USB2-Mini Extender in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

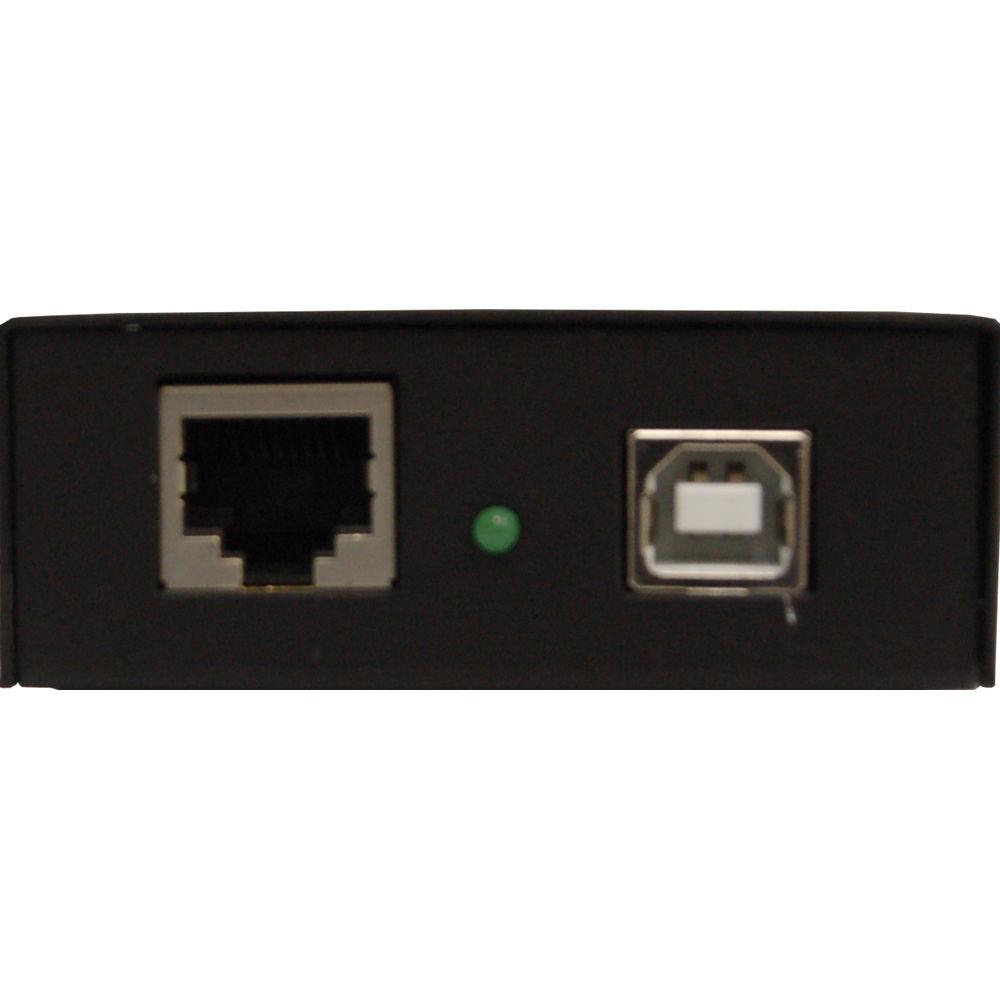

Technical parametersSmart-AVI USB2M-RX Specs | Input Interface | 1 x RJ-45 for CAT5e/6 cable | | Output Interface | 4 x USB type-A female | | | | Data Rate | USB: 480 Mb/s | | Version | USB 2.0 and 1.1 | | Signal Type | UTP: LVDS | | Range | 150' (46 m) over CAT5e/6 | | | | Power | External or via USB, 5 VDC @ 2 mA | | Power Connector | 2.1 mm DC jack (center positive) | | Operating Temperature | 332 to 131°F (0 to 55°C ) | | Storage Temperature | -4 to 185°F (-20 to 85°C) | | Humidity | Up to 95% | | Dimensions (W x D x H) | 3.4 x 3.4 x 1.5" (85.7 x 85.7 x 38.1 mm) | | Weight | 2.2 oz (63.5 g) | | | | Box Dimensions (LxWxH) | 14.0 x 14.0 x 7.0" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 15 owners. Add your rating and experience with the product.
